Waterproof IP67 12V 24V Boost 56V EV Fast DC-DC Step-up Converter Battery Charger Used for Car Bus Vehicle Boat Motor 20A 1120W

1 / 5

Waterproof IP67 12V 24V Boost 56V EV Fast DC-DC Step-up Converter Battery Charger Used for Car Bus Vehicle Boat Motor 20A 1120W

Customization:	Available
DC Input:	12/24VDC
DC Output:	56VDC

Send Inquiry

Product Description

Basic Information

Model NO.IPS-DTD1224S5620

Output Current20A

Max Power1120W

Weight2.6kg

WaterproofIP65

ApplicationBattery Charger

ProtectionOverload/Over-Current,etc.

OEMAccepted

Product Description

INTRODUCTION: DC/DC converter is a voltage converter that effectively outputs fixed voltage. Categories include Boost type, Boost & Buck type, and Buck type. Control methods such as PWM and PFM ensure high efficiency and low power consumption across different load conditions. Widely used in mobile phones, digital cameras, and portable media players.

✅ Design meeting RoHS / CE

✅ High efficiency: 93%

✅ Non-isolated input and output

✅ High reliability internal capacitors

✅ 100% full load burn-in test

✅ Overload & Over-voltage protection

✅ Waterproof level IP65

Technical Parameters

Input & Output Specifications
DC Input Voltage	12V/24VDC Range
DC Output Voltage	56VDC
Output Current	20 AMPS
Rated Power	1120 Watts
Efficiency	93%
Working Temp	-20 ~ 80ºC
Shell Material	Aluminum

Model Comparison & Mode List

Apply Battery Type	Input Voltage	Charging Voltage	Charging Amps	Weight
Lithium (3S)	10-36VDC	12.6VDC	2A - 60A	300G - 2.4KG
Lithium (6S)	10-36VDC	25.2VDC	2A - 10A	300G - 500G
LifePO4 (4S)	10-36VDC	14.6VDC	2A - 60A	300G - 2.4KG
Lead Acid (4S)	10-32VDC	56.0VDC	10A - 30A	1.7KG - 3.2KG

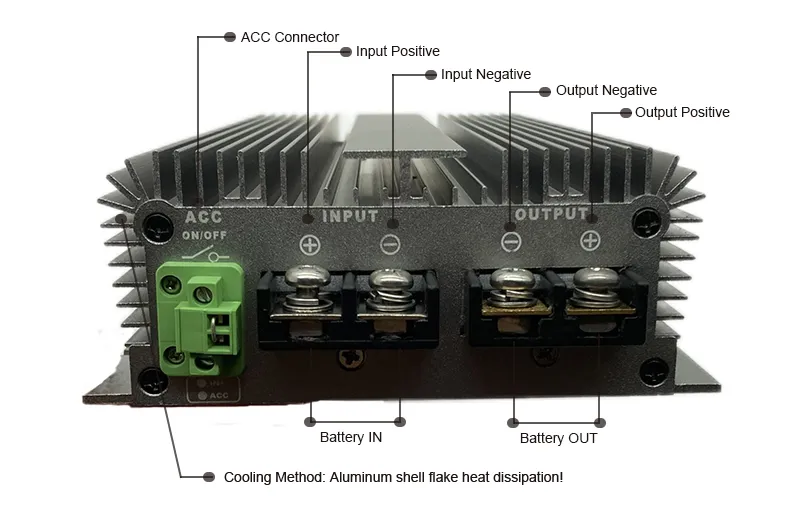

Detailed Photos

Frequently Asked Questions (FAQ)

Q1: What is the efficiency of this DC-DC converter? A1: This converter features a high efficiency of 93%, ensuring minimal power loss during the voltage conversion process.

Q2: Is the device waterproof for outdoor use? A2: Yes, it is rated at IP65 waterproof level, making it suitable for use in vehicles, boats, and other environments exposed to moisture.

Q3: What safety protections are built-in? A3: The unit includes comprehensive protection against input instant over-voltage, output over-current, and chip over-heat conditions.

Q4: Can this be used as a Lithium battery charger? A4: Yes, it is designed for multiple battery types including Lithium (3S/6S/7S/14S), LifePO4, and Lead Acid batteries with customizable charging voltages.

Q5: Is customization available for specific voltages? A5: Yes, we accept customization for charge voltage and labels to meet your specific application requirements.
