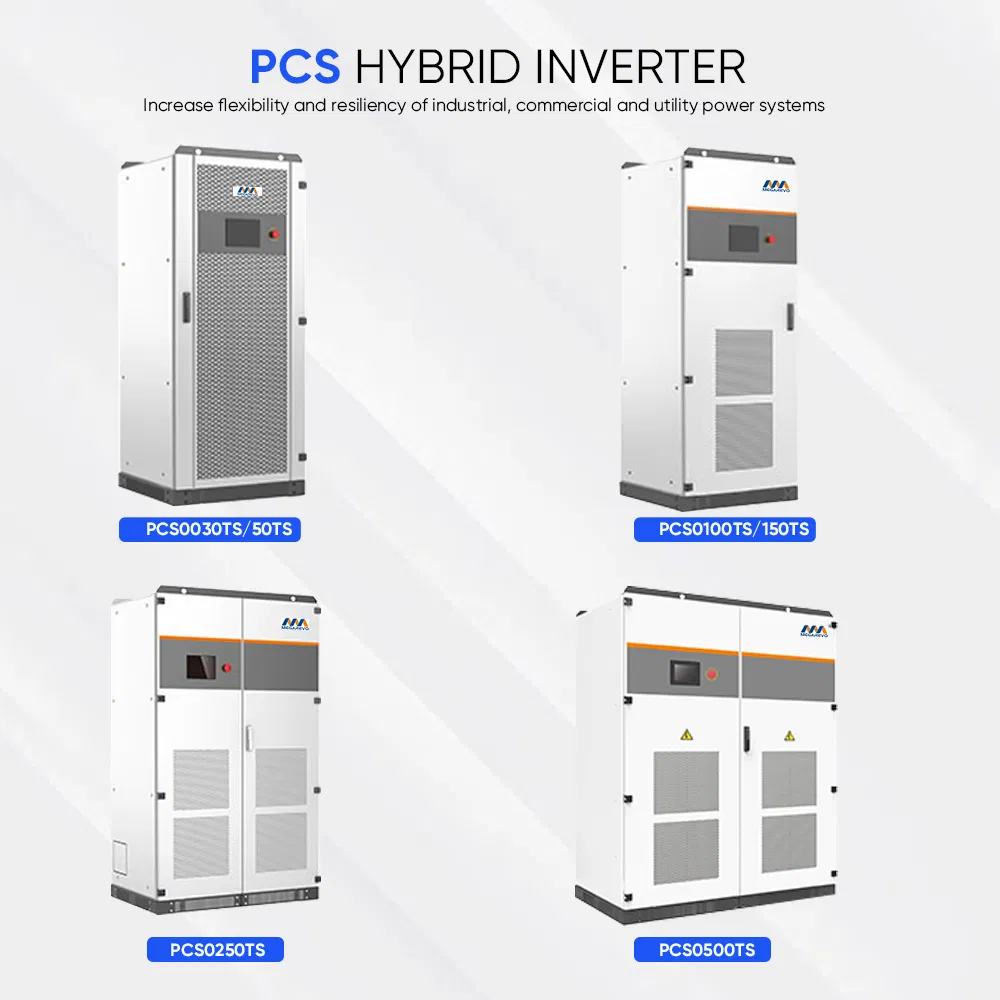

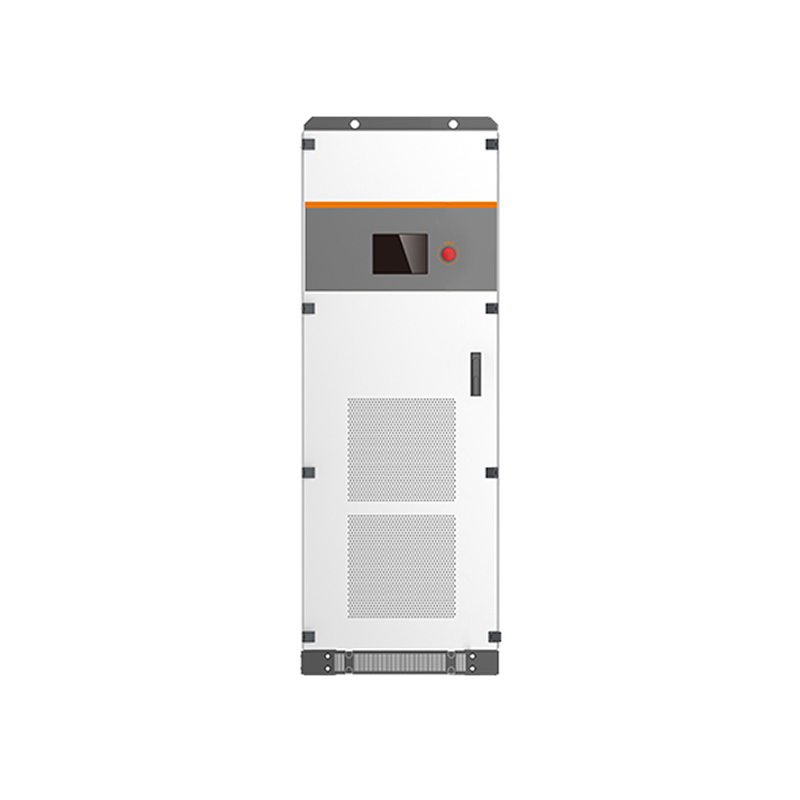

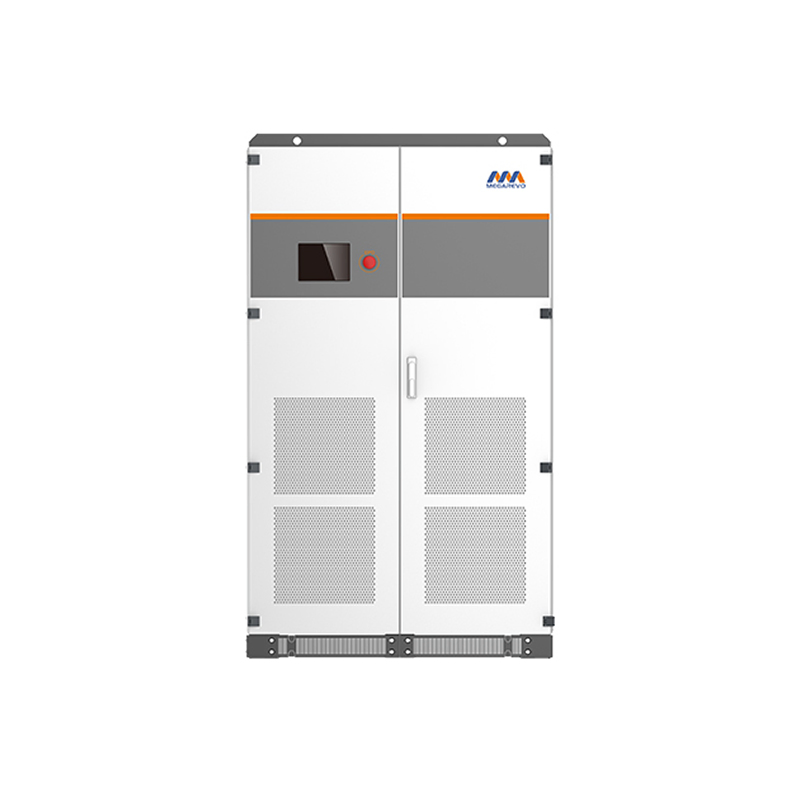

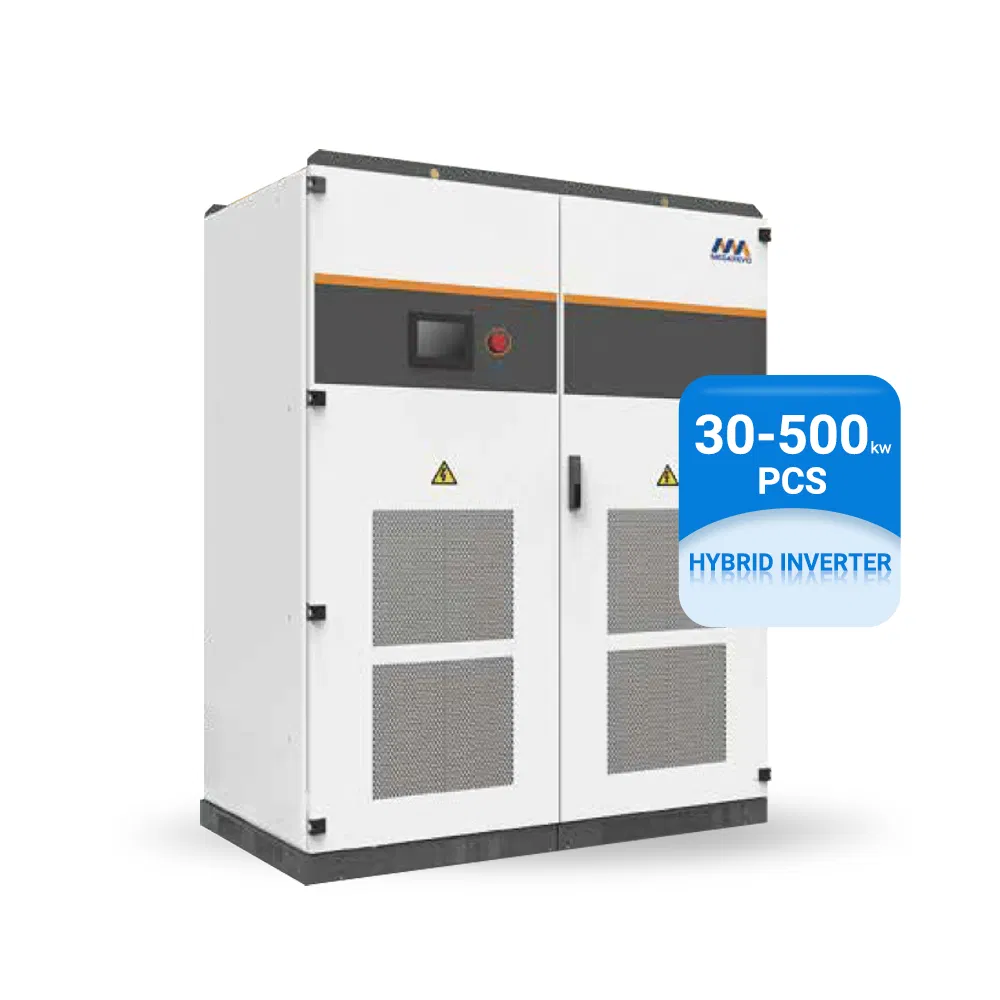

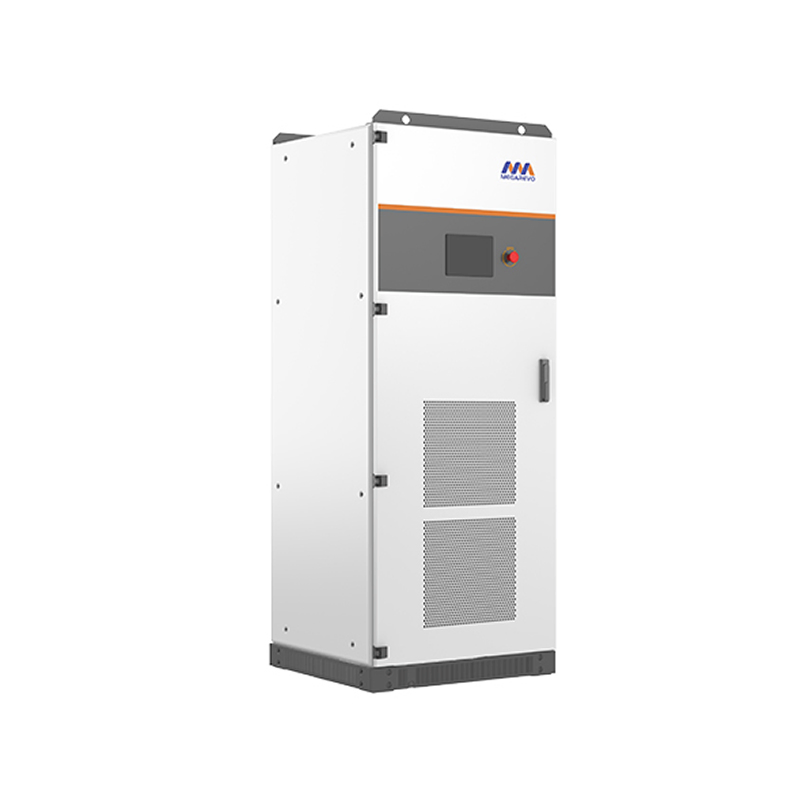

Megarevo Mega Series Isolated Energy Storage Converter PCS 30kw 50kw 100kw 150kw 250kw 500kw Power Conversion System
Megarevo Mega Series Isolated Energy Storage Converter PCS 30kw 50kw 100kw 150kw 250kw 500kw Power Conversion System
Megarevo Mega Series Isolated Energy Storage Converter PCS 30kw 50kw 100kw 150kw 250kw 500kw Power Conversion System
Megarevo Mega Series Isolated Energy Storage Converter PCS 30kw 50kw 100kw 150kw 250kw 500kw Power Conversion System
Megarevo Mega Series Isolated Energy Storage Converter PCS 30kw 50kw 100kw 150kw 250kw 500kw Power Conversion System
1 / 5
Megarevo Mega Series Isolated Energy Storage Converter PCS 30kw 50kw 100kw 150kw 250kw 500kw Power Conversion System
Megarevo Mega Series Isolated Energy Storage Converter PCS 30kw 50kw 100kw 150kw 250kw 500kw Power Conversion System
Megarevo Mega Series Isolated Energy Storage Converter PCS 30kw 50kw 100kw 150kw 250kw 500kw Power Conversion System
Megarevo Mega Series Isolated Energy Storage Converter PCS 30kw 50kw 100kw 150kw 250kw 500kw Power Conversion System
Megarevo Mega Series Isolated Energy Storage Converter PCS 30kw 50kw 100kw 150kw 250kw 500kw Power Conversion System

Megarevo Mega Series Isolated Energy Storage Converter PCS 30kw 50kw 100kw 150kw 250kw 500kw Power Conversion System

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

i

Basic Information

Model NO.MEGA0030TS-MEGA0500TS
Output Power30-500kw
Grid TypeOff-Grid Inverter
DisplayLCD Touch-Screen
Protection ClassIP21
CoolingForced Air
P

Product Description

MEGA Series Isolated Energy Storage Converter PCS 30kw 50kw 100kw 150kw 250kw 500KW Power Conversion System

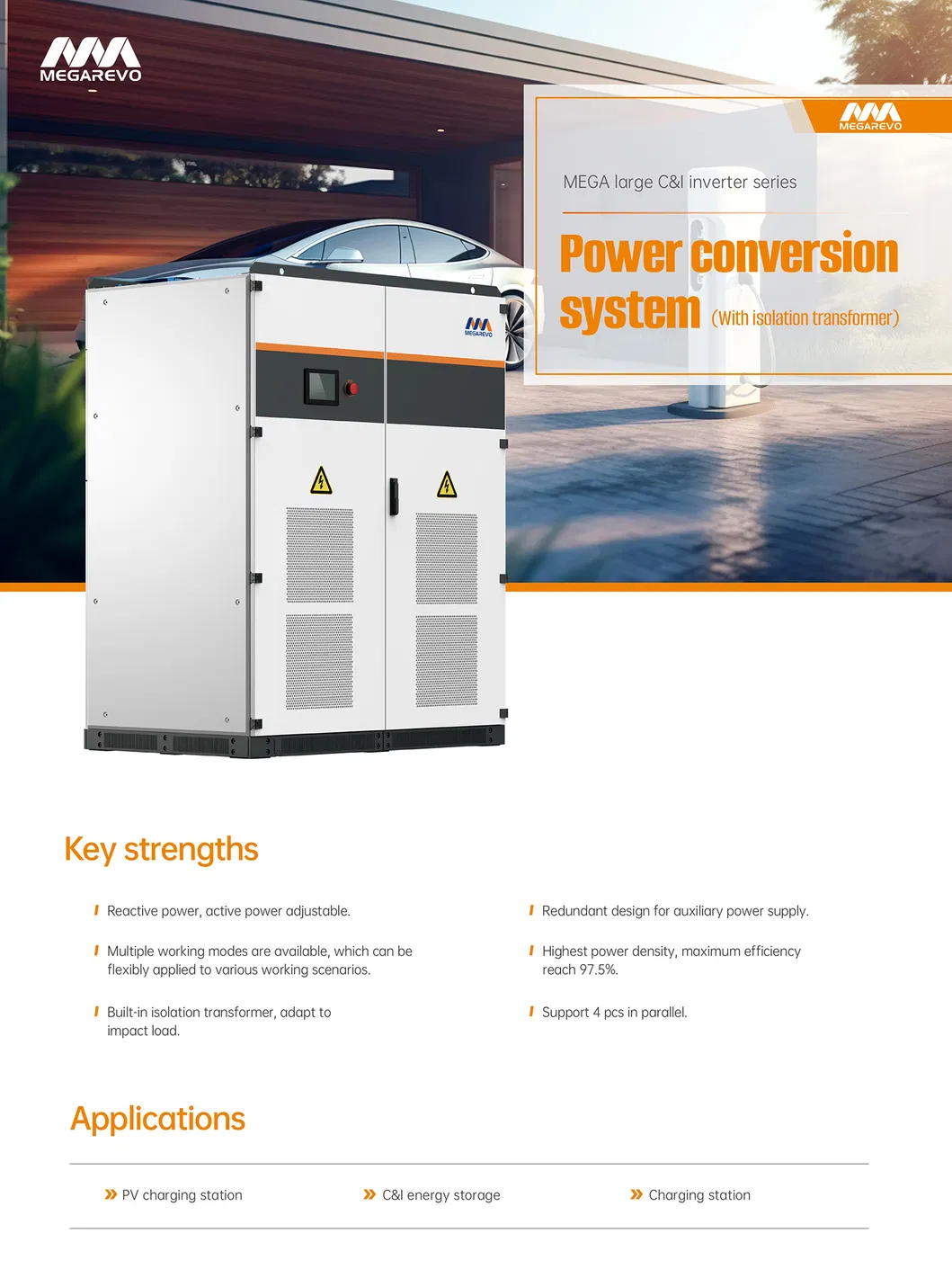

Energy Storage Converter
T

Product Parameters

Model MEGA0030TS MEGA0050TS MEGA0100TS MEGA0150TS MEGA0250TS MEGA0500TS
DC (Battery)
Voltage range (V) 250~850 320~850 420~850 420~850 420~850 500~850
Max. Current (A) 137 178 270 405 673 1,128
AC (On-Grid)
Rated Power (kW) 30 50 100 150 250 500
Max Efficiency 96.3% 96.5% 97.1% 97.1% 97.3% 97.5%
S

System Architecture & Shipping

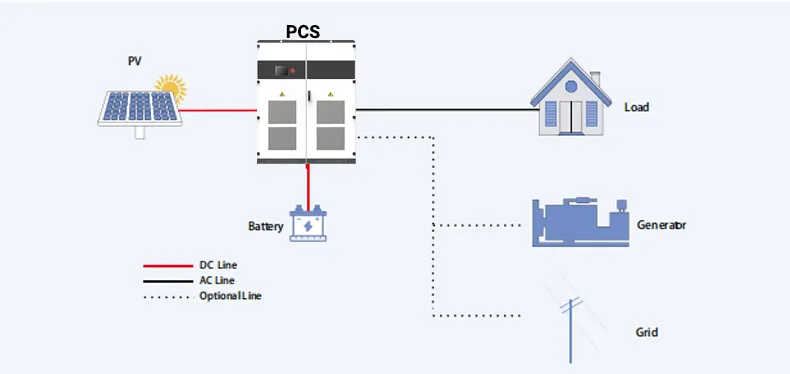

System Architecture

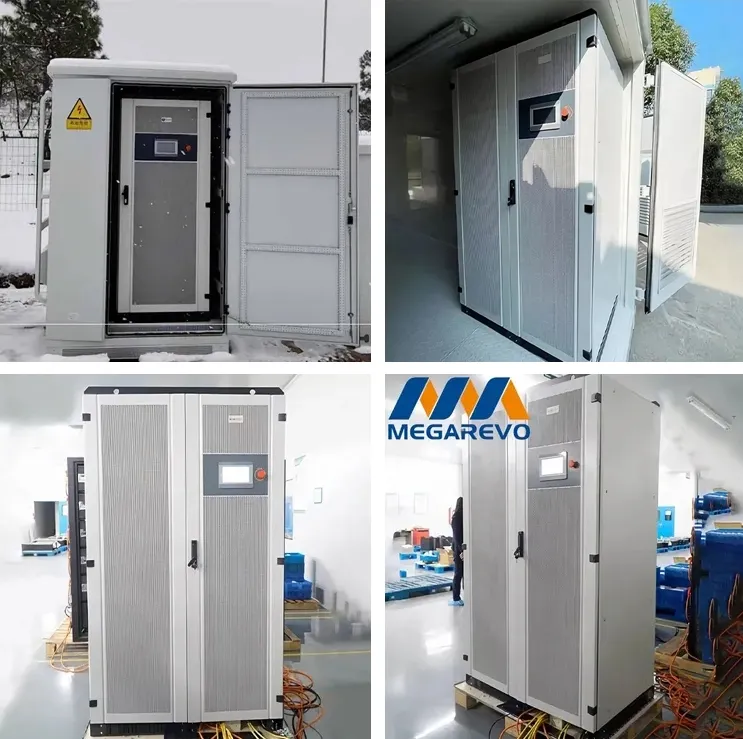

Packaging
C

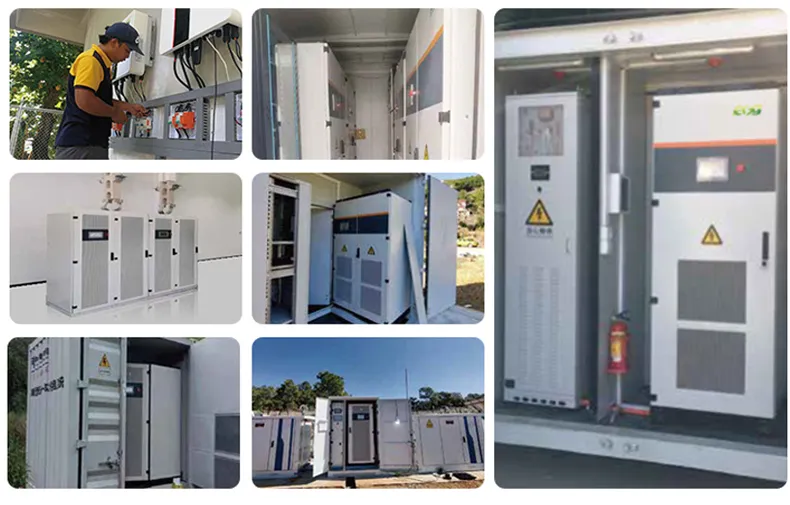

Project Case

Project Case
Global Support
?

Frequently Asked Questions

What is the power range of the MEGA series PCS?
The MEGA series Power Conversion System offers a wide power range from 30kW up to 500kW to meet different energy storage needs.
What type of cooling system does it use?
This series utilizes a forced air cooling system to maintain optimal operating temperatures between -30°C and 55°C.
Can it switch between on-grid and off-grid modes?
Yes, the system supports automatic switching between on-grid and off-grid modes.
What is the protection rating of the enclosure?
The system is designed with an IP21 protection class, suitable for indoor installations.
What communication interfaces are supported?
It supports multiple communication interfaces including RS485, CAN, and TCP/IP for BMS and EMS integration.
What is the maximum efficiency of these converters?
Depending on the model, the maximum efficiency ranges from 96.3% to 97.5%.
