JDI Power Supply
1 / 5
| Specification Item | Details |
|---|---|
| Model Series | 48V/60V/72V/84VDC to 12VDC Converters |
| Power Range | 36W to 1440W (3A to 120A) |
| Customization | Available for specialized requirements |
| Packaging | Export Standard Carton |
| Product Size | 100*80*39 MM (Standard) |
| Origin | China |
| HS Code | 8504409999 |
DC/DC Converter Technology: A high-efficiency voltage converter designed to provide a stable fixed output voltage. Our converters are categorized into: Boost type, Boost & Buck type, and Buck type.
📈 Control Modes:
• PWM Control: High efficiency with superior noise and ripple suppression.
• PFM Control: Ultra-low power consumption for long-term use under small loads.
• Hybrid Control: Automatically switches between PFM and PWM depending on the load intensity.
✨ Customization Capabilities: we focus on research and development to provide personalized power solutions. Range: 1V to 1000V DC and 1A to 1000A. Both isolated and non-isolated designs are available.
| Input Voltage VDC | Output Volt VDC | Output Current AMP | Max Power WATT | Size (MM) |
| 30~90V | 12V | 10A | 120W | 74*74*32 |
| 30~90V | 12V | 15A | 180W | 100*80*39 |
| 30~90V | 12V | 20A | 240W | 100*80*39 |
| 30~90V | 12V | 30A | 360W | 100*113*35 |
| 30~90V | 12V | 40A | 480W | 160*113*35 |
| 30~90V | 12V | 50A | 600W | 150*130*50 |
| Type | Model Suffix | Voltage Conversion | Current Options |
|---|---|---|---|
| Boost | IPS-DTD12S24 | 12V to 24V | 1A - 50A |
| Boost | IPS-DTD12S48 | 12V to 48V | 1A - 20A |

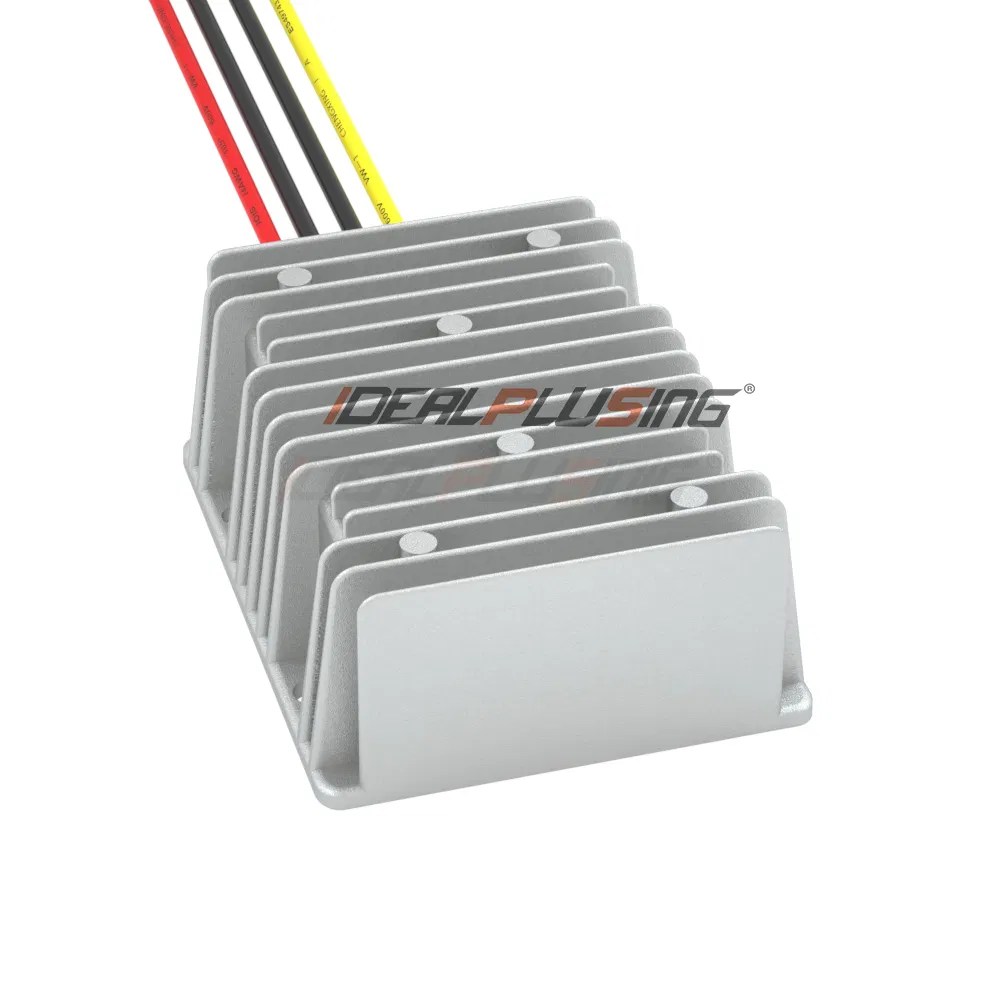

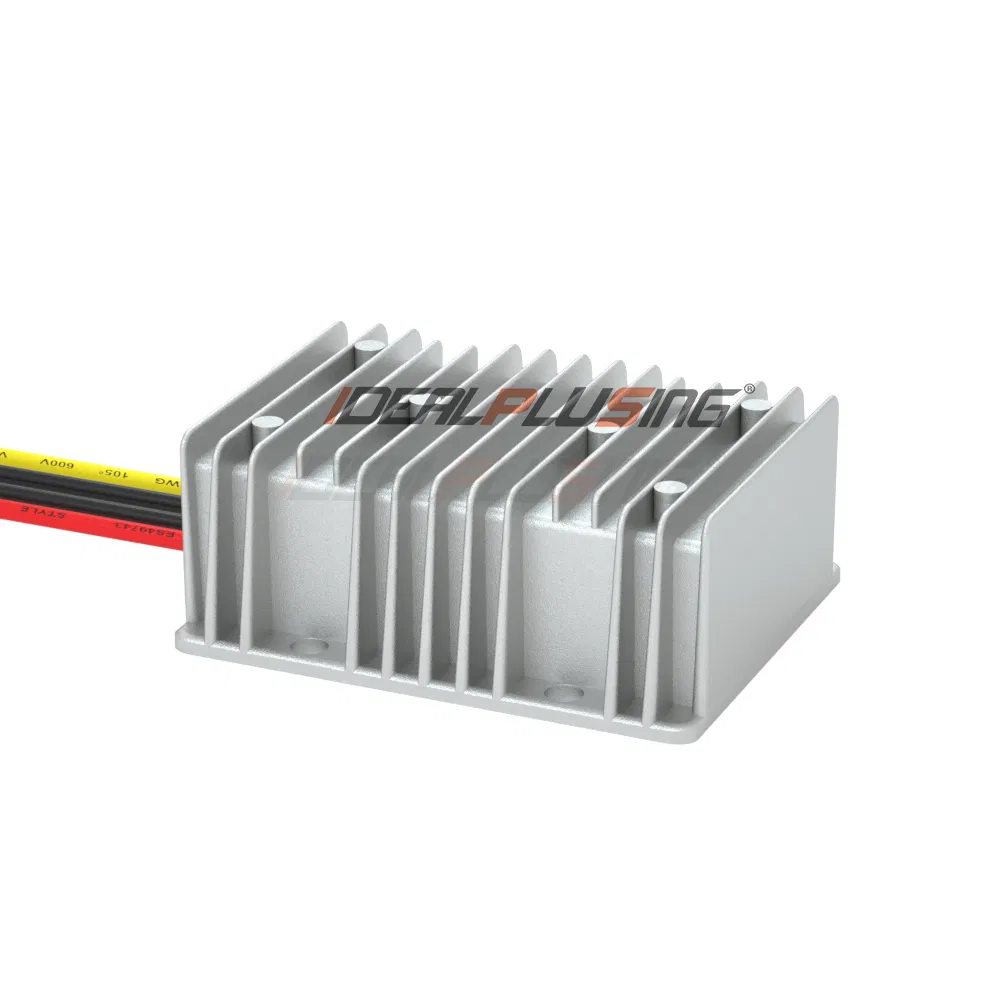

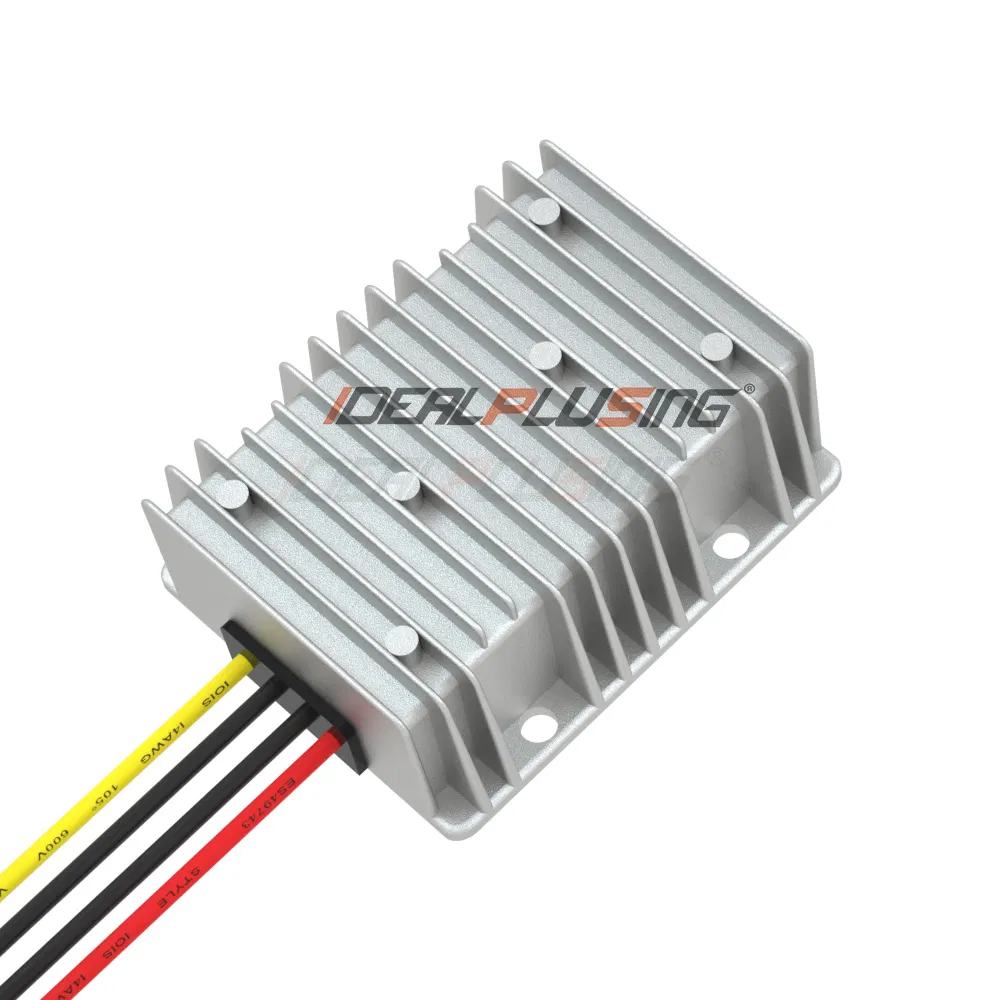

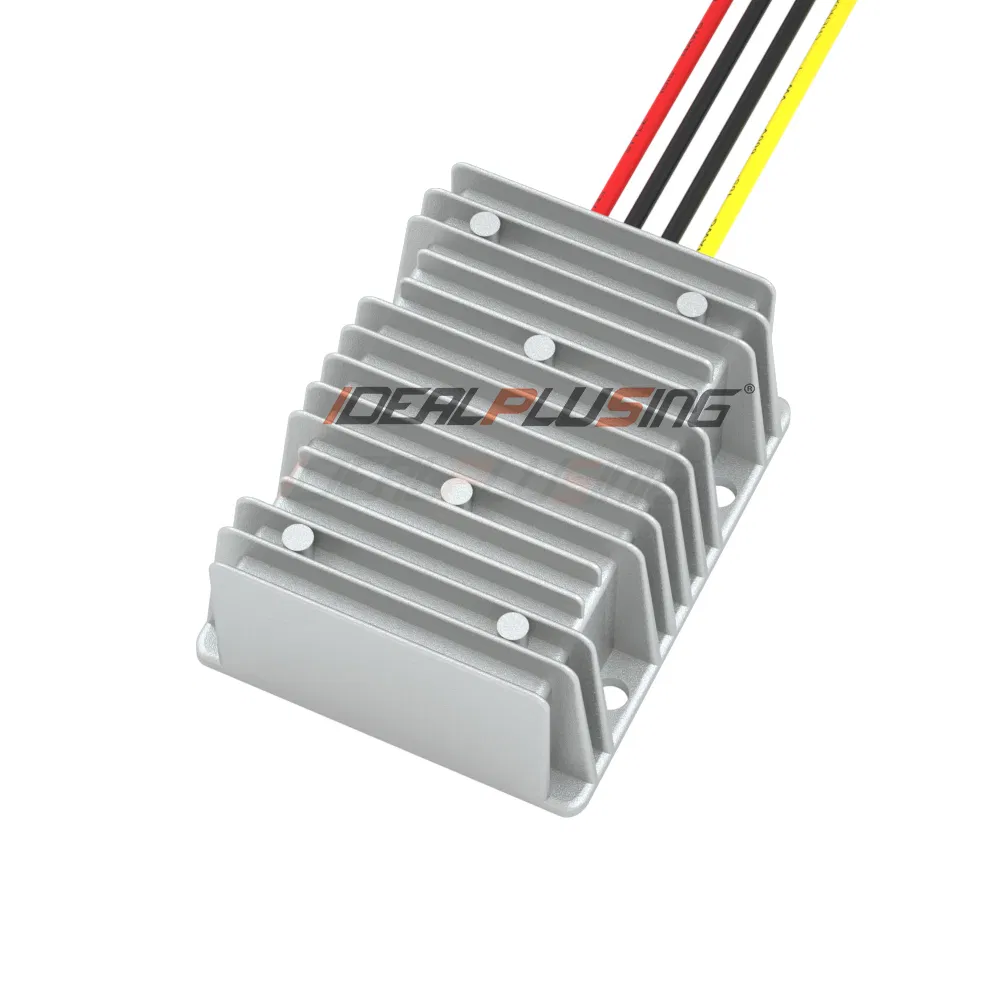

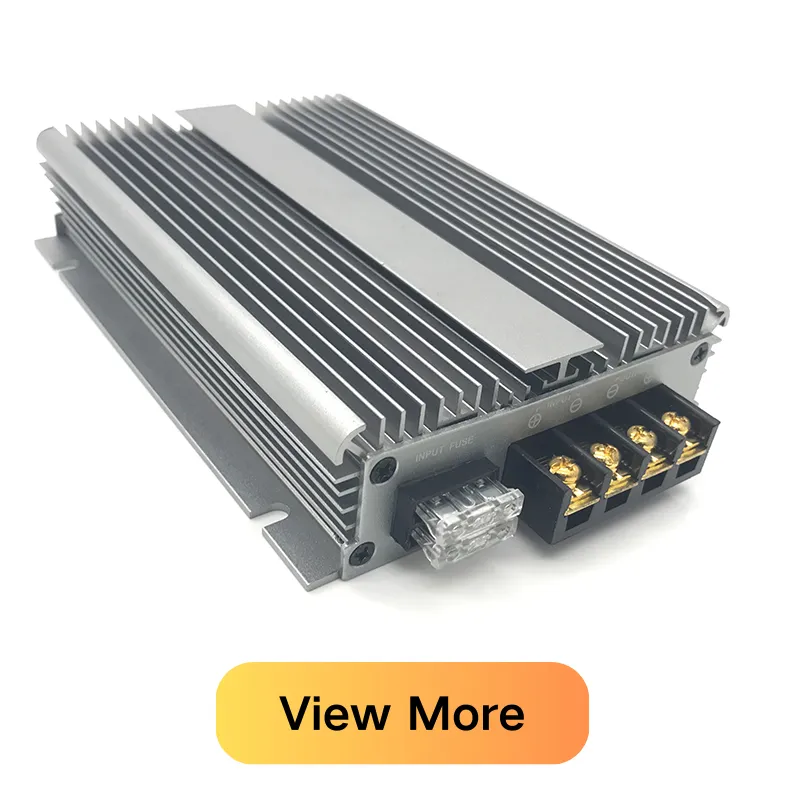

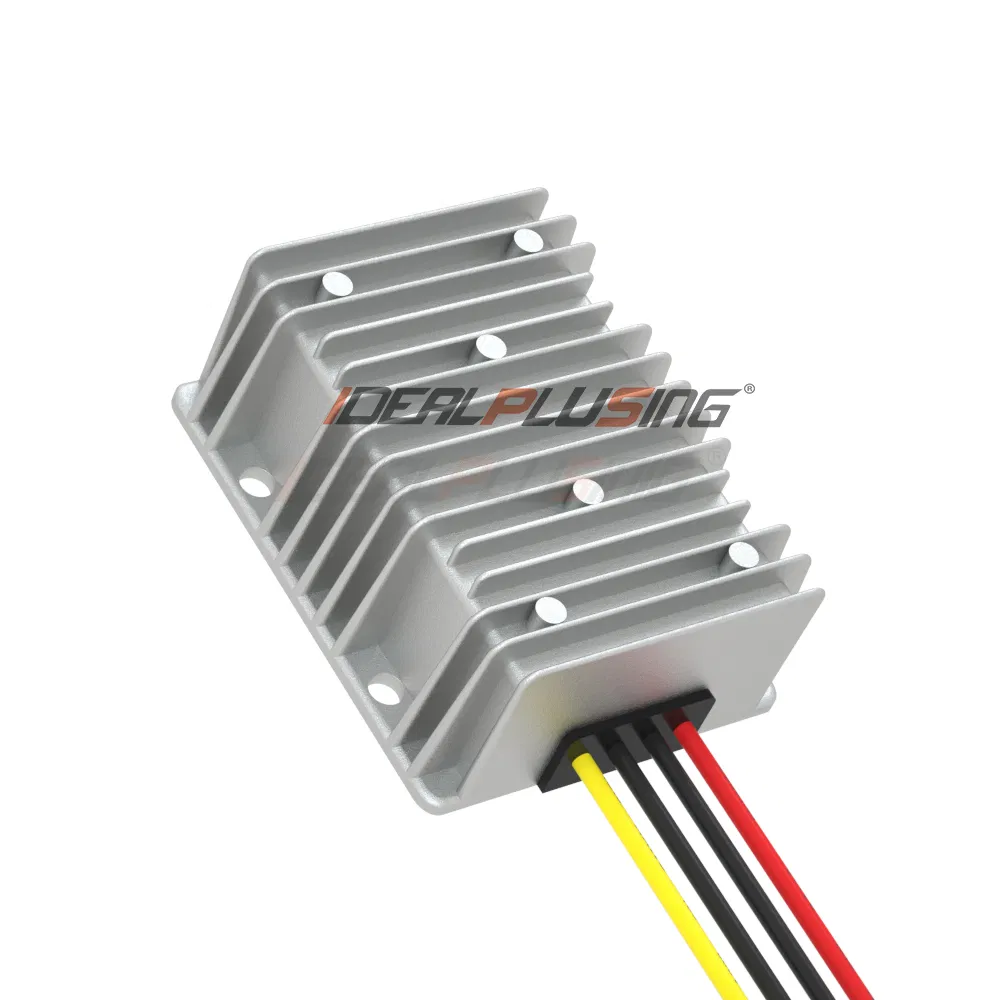

| Buck | IPS-DTD72S12 | 72V to 12V | 1A - 50A |
| Buck | IPS-DTD84S12 | 84V to 12V | 1A - 25A |
| Isolated | IPS-DTDYI72S12 | 50-100V to 12V | 5A - 24A |
Isolated converters provide a galvanic barrier between input and output for safety and noise reduction, whereas non-isolated converters are more compact and efficient for common ground applications.
Yes, we specialize in customizing DC-DC converters with output ranges from 1V to 1000V and current from 1A to 1000A based on your specific requirements.
PWM ensures high efficiency and stability under heavy loads, while PFM reduces power consumption during standby or light load conditions, extending battery life.
Most of our standard models feature an IP65 waterproof level with an aluminum shell, making them dustproof and shockproof for harsh environments.
They are widely used in electric vehicles, golf carts, forklifts, LED power systems, telecommunications, and portable media devices.
Our 72V models typically support a wide input range from 30VDC to 90VDC or 50VDC to 100VDC depending on the specific series.
