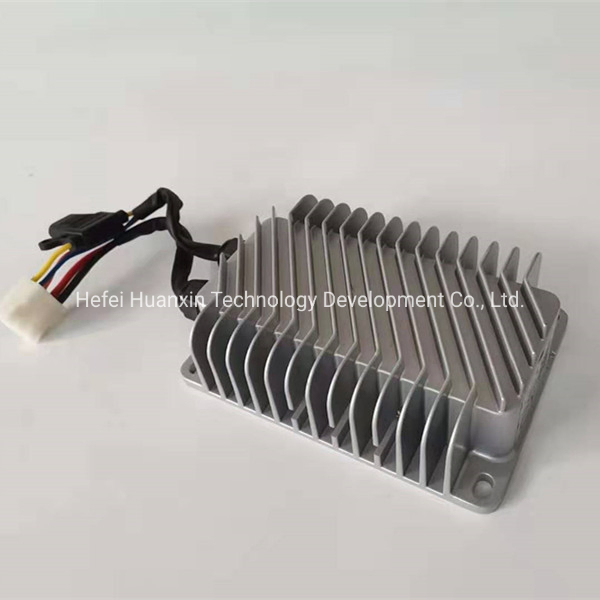

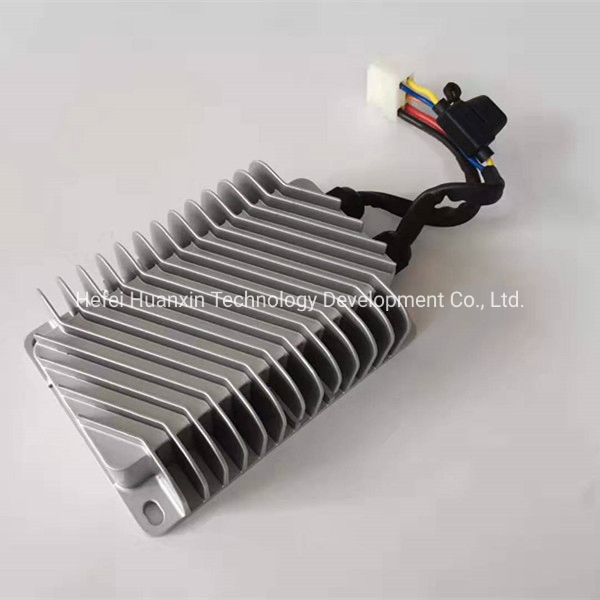

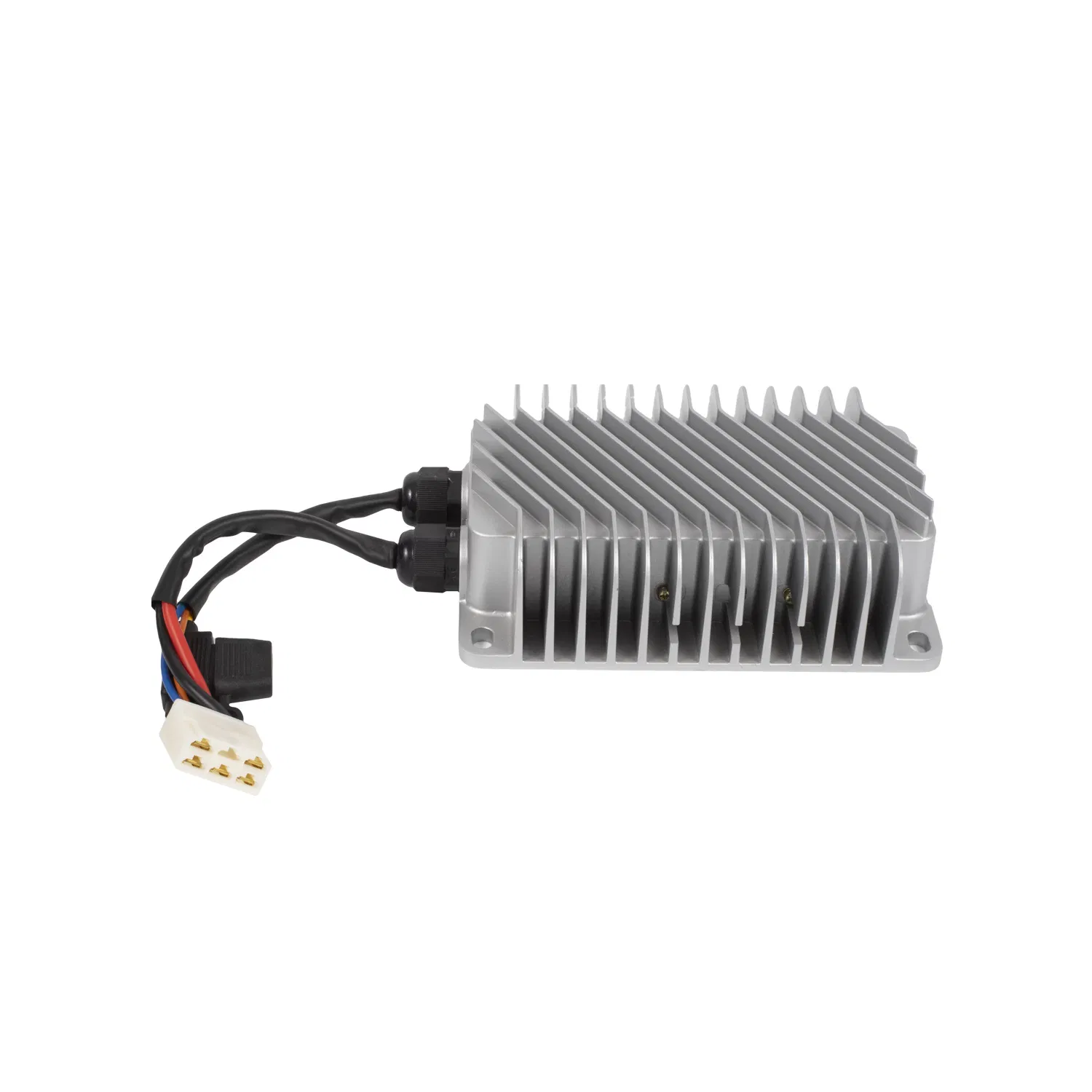

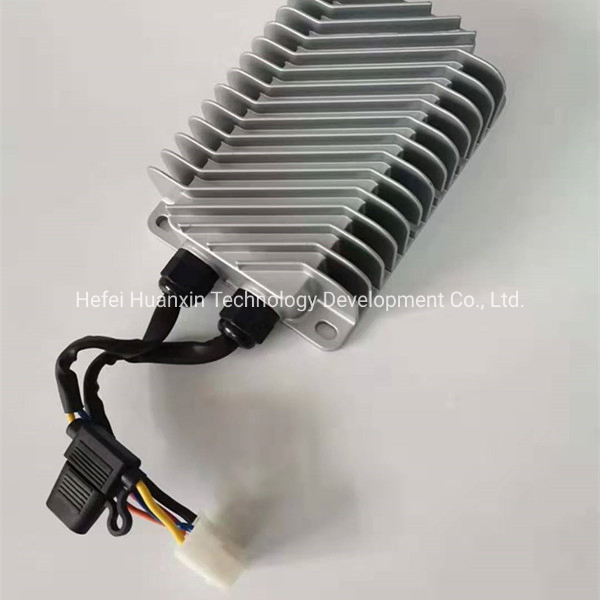

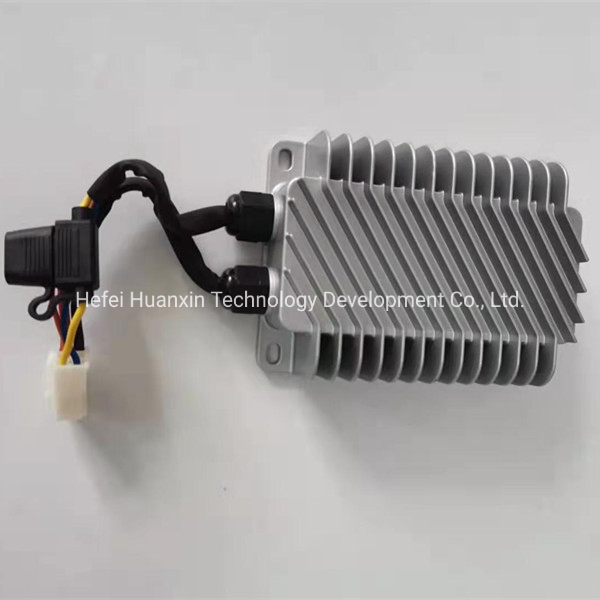

DC DC Step Down Converter 96V to 12V 500W Kits
DC DC Step Down Converter 96V to 12V 500W Kits
DC DC Step Down Converter 96V to 12V 500W Kits
DC DC Step Down Converter 96V to 12V 500W Kits
DC DC Step Down Converter 96V to 12V 500W Kits
1 / 5
DC DC Step Down Converter 96V to 12V 500W Kits
DC DC Step Down Converter 96V to 12V 500W Kits
DC DC Step Down Converter 96V to 12V 500W Kits
DC DC Step Down Converter 96V to 12V 500W Kits
DC DC Step Down Converter 96V to 12V 500W Kits

DC DC Step Down Converter 96V to 12V 500W Kits

Customization: Available
After-sales Service: 1 Year
Warranty: 1 Year
Send Inquiry

Product Description

ℹ️

Basic Specifications

Model NO.
huanxin
Model
Hxdc-G
Input Voltage
48V-96V
Output Voltage
12V
Max Output Current
25A
Power
500W
Electrical Isolation
500 VAC
Dimensions
148mm X 148mm X 46mm
Transport Package
Carton/Pallet
HS Code
8504401400
📦

Product Description

DC DC Step Down Converter

Detailed Features

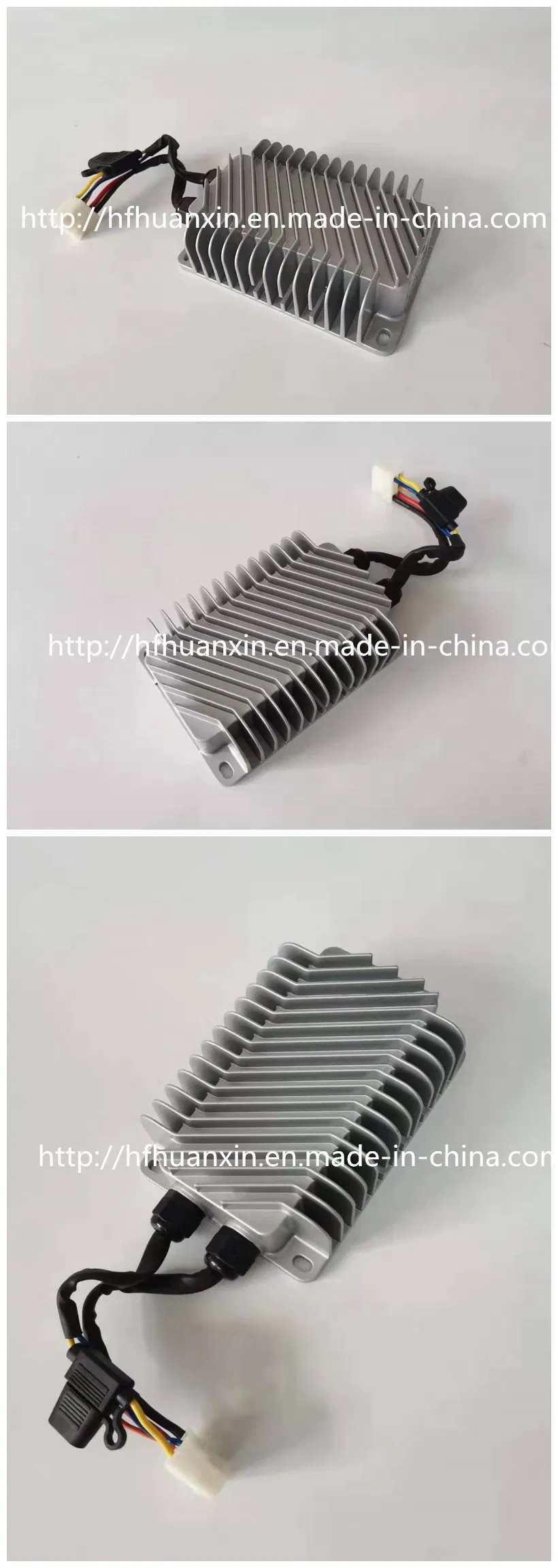

DC DC Converter Details

⚙️ Key Technical Specifications

  • Input voltage: 48V-96 DC
  • Output voltage: 12V DC
  • Max output current: 25A
  • Electrical isolation: 500 VAC
  • Over-current protection
  • Shortcut protection
  • Over/Low voltage protection
  • Overheat protection
  • Operating temp: -40°C to 50°C
  • Storage temp: -40°C to 85°C
🏭

Manufacturing Facility

Production Factory
💬

Frequently Asked Questions

What is the input voltage range for this DC-DC converter?
The converter supports a wide input voltage range from 48V DC to 96V DC, making it suitable for various battery systems.
Does this unit include safety protection features?
Yes, it features comprehensive self-protection including reverse connection, over-current, shortcut, over/low-voltage, and overheat protection.
What is the maximum output current?
The maximum output current for this 500W model is 25A at a stable 12V DC output.
Can this converter operate in extreme temperatures?
Yes, the operating ambient temperature range is from -40°C to 50°C, and it can be stored in environments from -40°C up to 85°C.
Are the connectors included with the product?
Yes, the mating connector is included in the package for easy installation.
What are the physical dimensions of the Hxdc-G model?
The product dimensions are 148mm x 148mm x 46mm, designed for a compact footprint.
