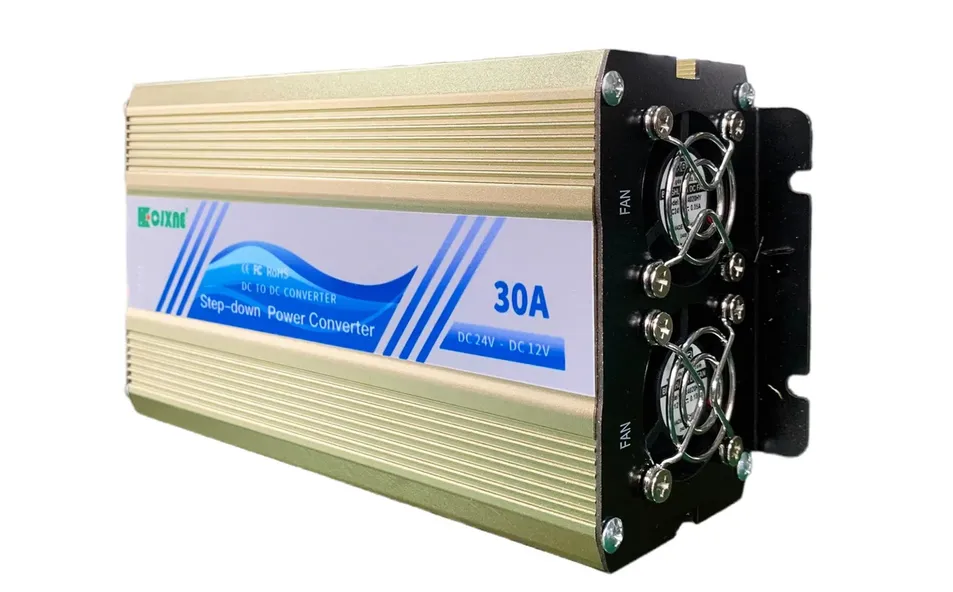

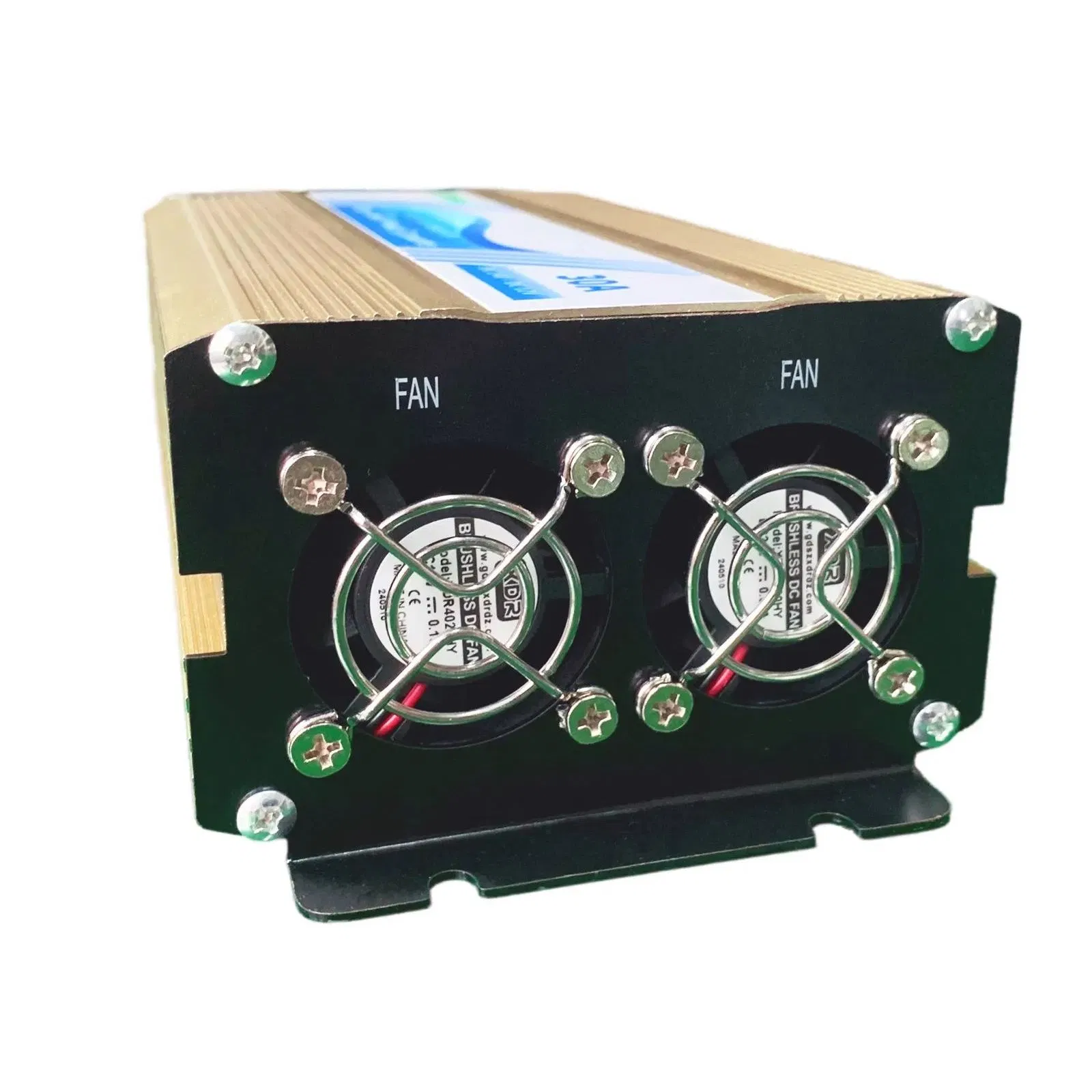

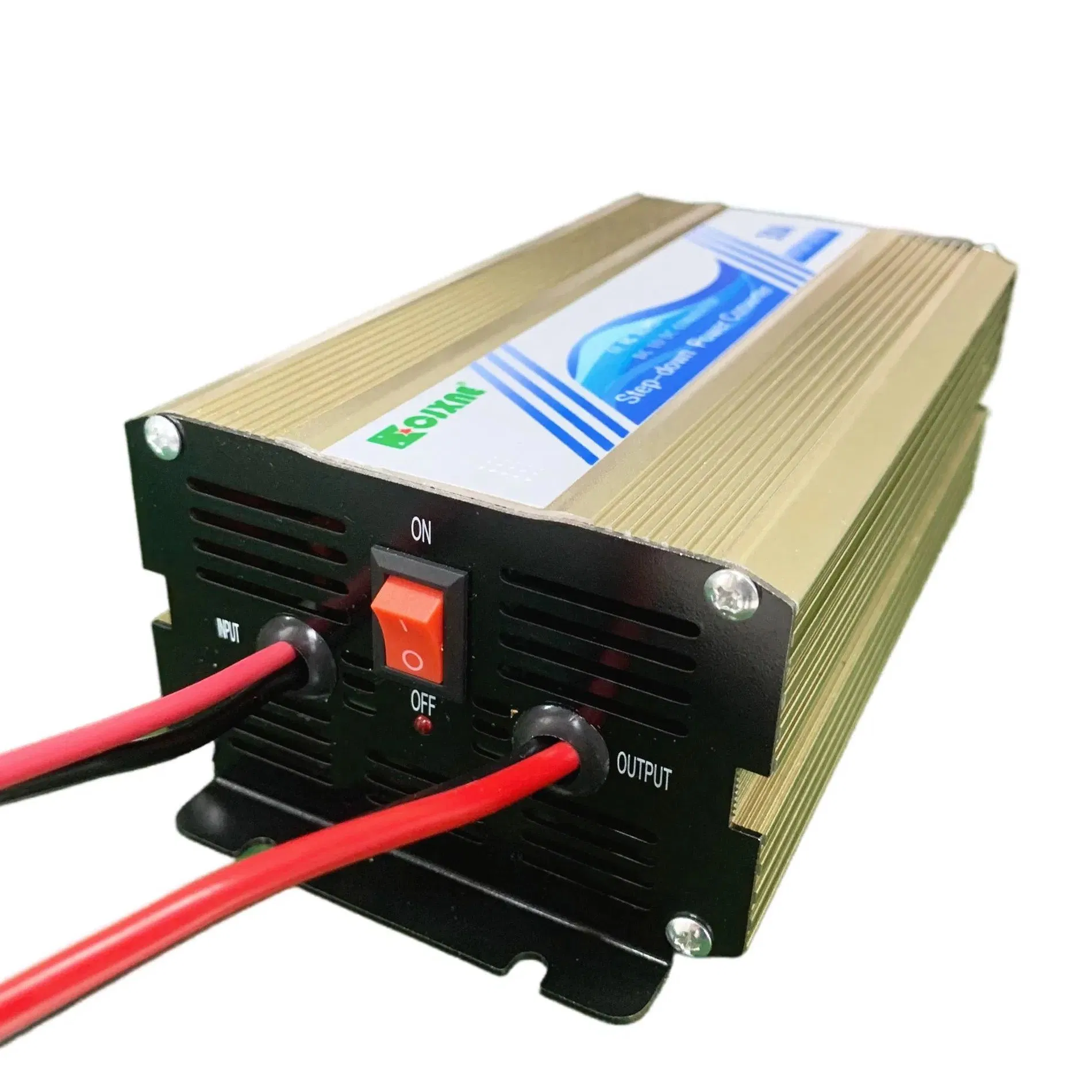

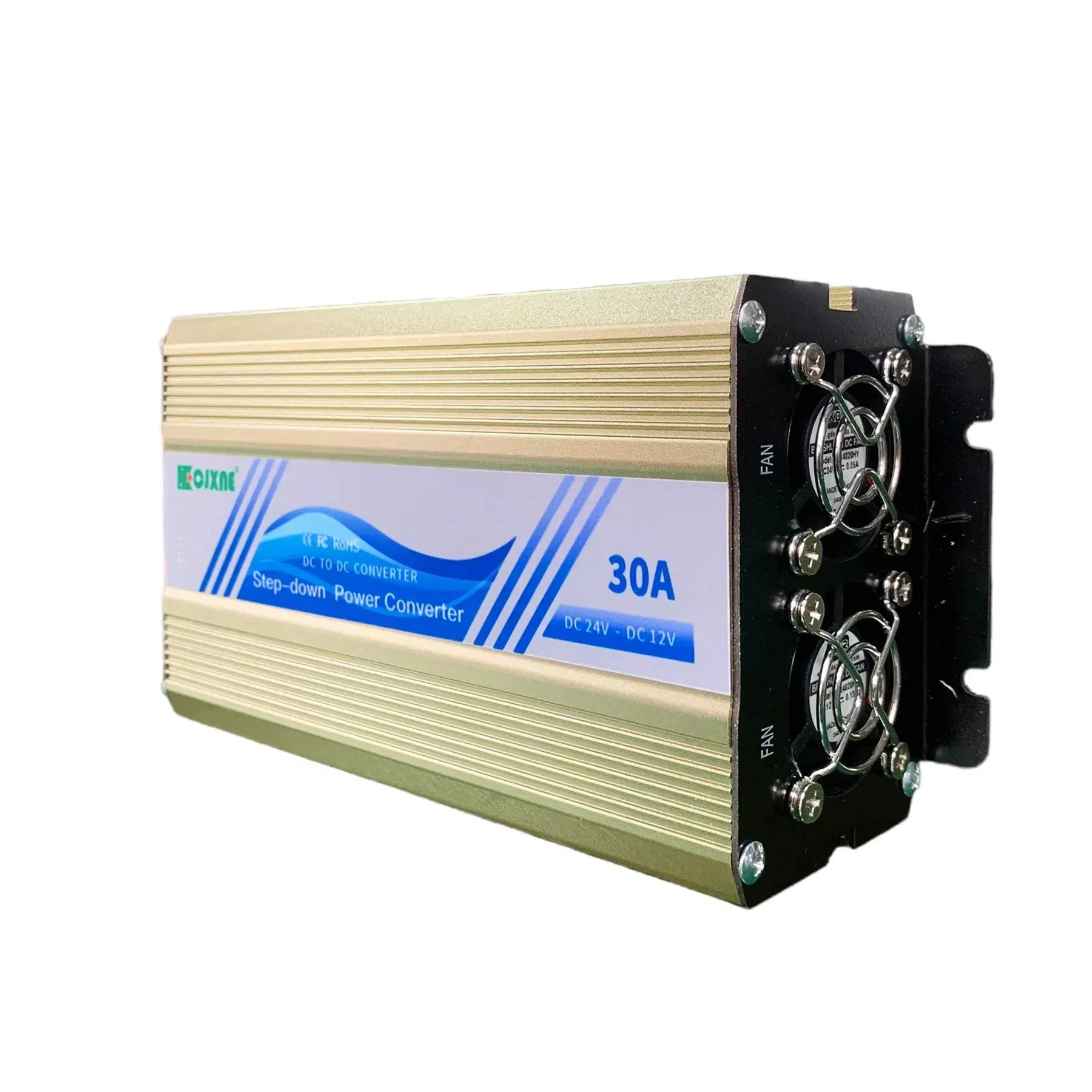

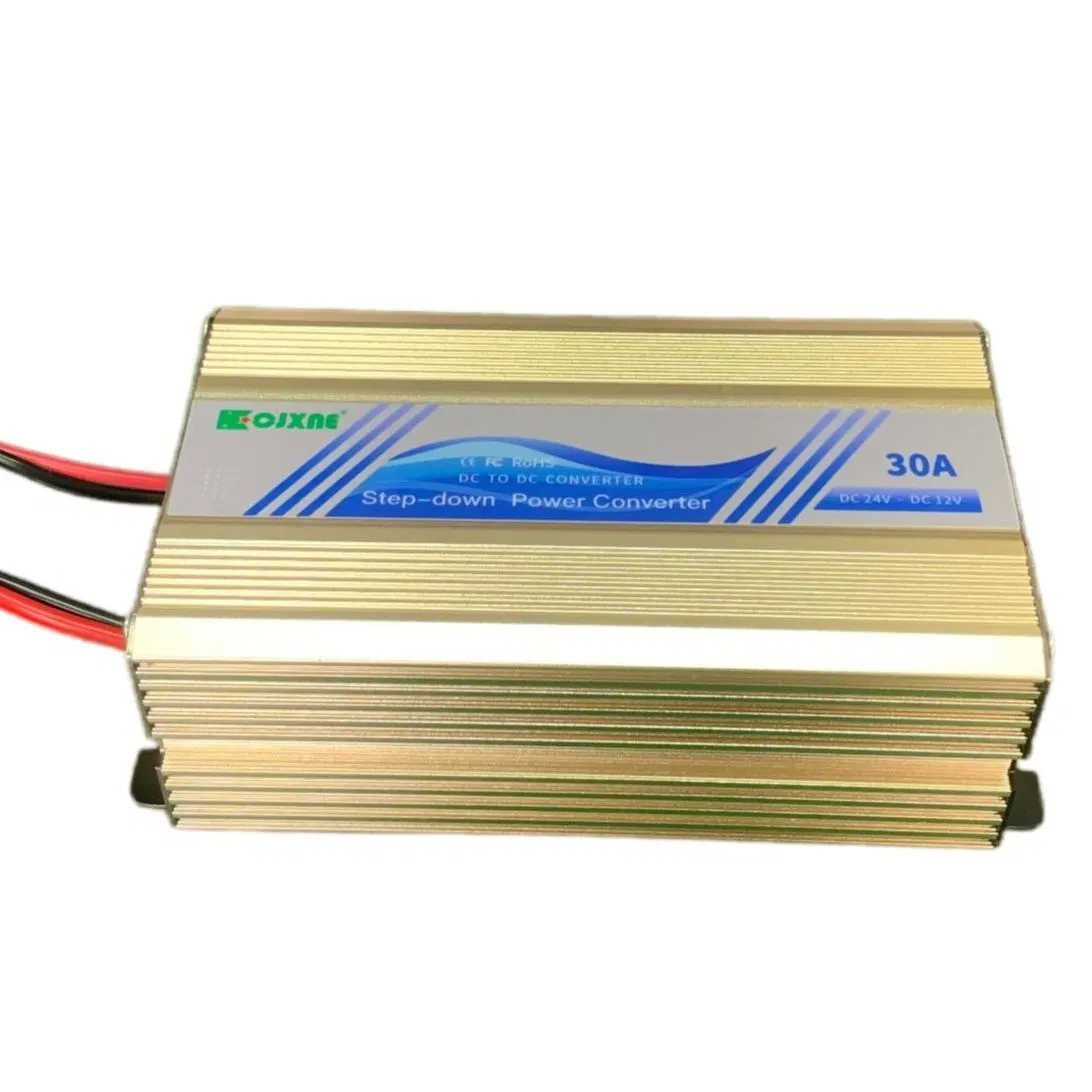

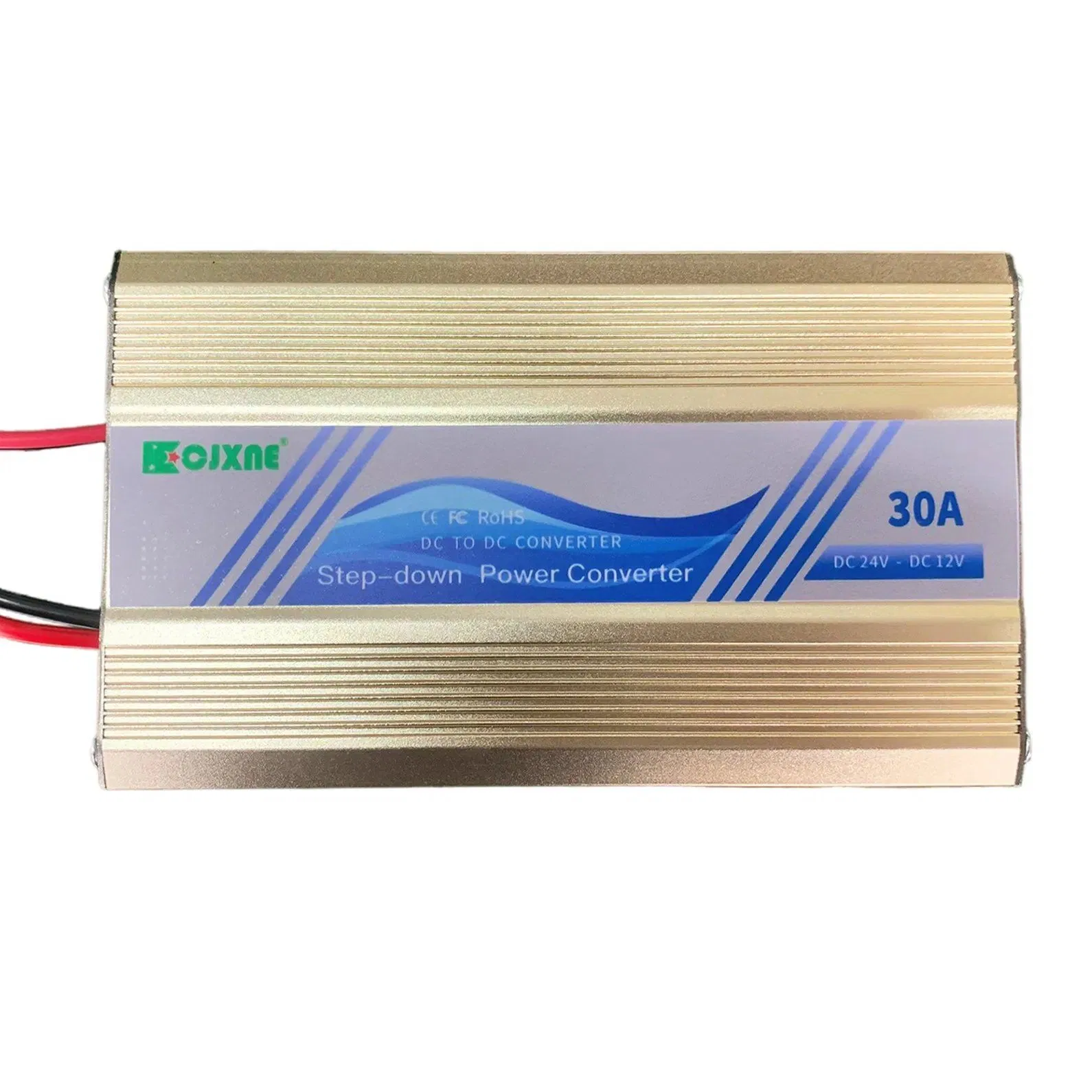

DC-DC Step Down Industrial Buck Converter Constant Voltage Buck Module

📑 Basic Specifications

Model NO.

JXJY-30A

Core

Core-type Transformer

Cooling Method

Dry-type Transformer

Winding Type

Auto-transformer

Certification

CCC

Frequency

High Frequency

Output Current

30A

Warranty

2 Years

Input Voltage

24V (20-28V)

Output Voltage

12V

Max Efficiency

90%

Dimensions

210× 105× 50mm

💡 Product Overview

A Buck Converter, also known as a step-down converter, is a type of Switched-Mode Power Supply (SMPS). Its core function is to convert a higher DC input voltage into a lower, stable, and controllable DC output voltage. It is significantly more efficient than traditional linear regulators and is essential for modern electronic devices.

🚀

Features & Performance:
• High Efficiency: Typically 85%-98%
• High Power Density: Compact design
• Wide Input Range: Accommodates fluctuating voltage
• Stable Output: Precise DC control
• Full Protection: Integrated over-current, thermal, and short-circuit protection

📸 Product Display

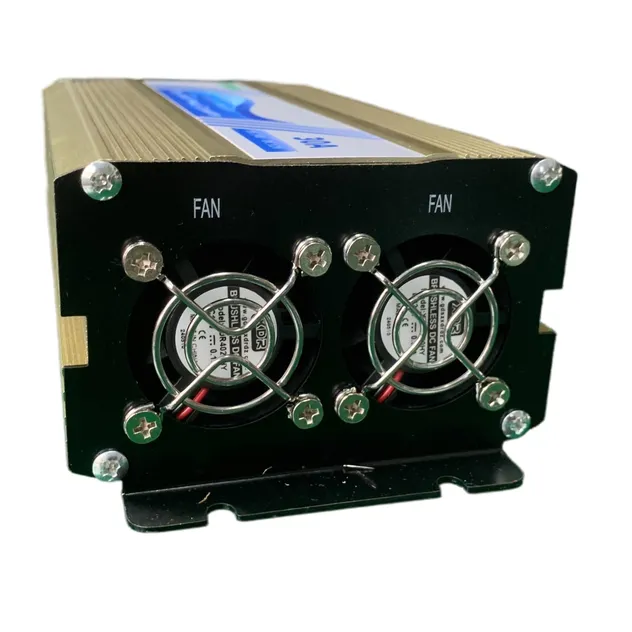

Right Elevation

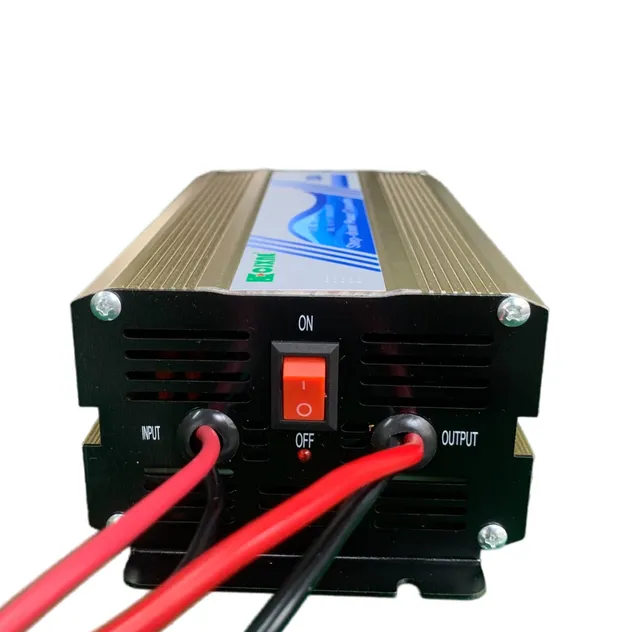

Left Elevation

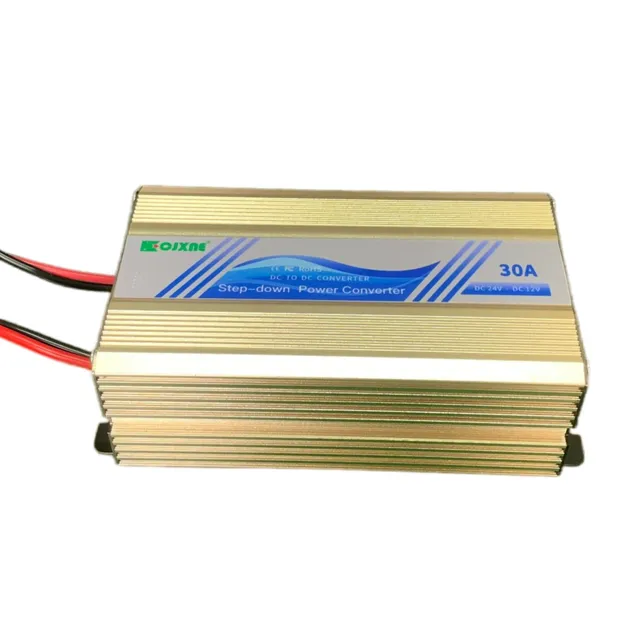

Front Elevation

🛠 Technical Specifications

Model	JXJY-10A	JXJY-20A	JXJY-30A
Rated power	120W	240W	360W
Input Voltage	DC 24V	DC 24V	DC 24V
Output Voltage	DC 12V	DC 12V	DC 12V
Max efficiency	90%	90%	90%
Voltage range	20-28V	20-28V	20-28V
Working Temp	-10℃~+50℃	-10℃~+50℃	-10℃~+50℃

⚙️ Applications & Advantages

Applications:

Consumer Electronics: Internal power for phones, laptops.
Automotive Electronics: Steps down 12V/24V to 5V/3.3V.
Industrial Equipment: Power for PLCs, sensors, motor drives.
Telecom Systems: Provides core voltage for chips.
LED Driving: Efficient constant-current drive.

Core Advantages:

Energy-saving, low heat, extends battery life.
Small size, light weight, saves space.
High reliability, low thermal stress.

🏢 About Our Factory

We specialize in designing, manufacturing and distributing high-efficiency power inverters and converters for residential and industrial applications. We have a professional R&D team and continue to make technological breakthroughs in inverters, portable power stations, and solar charge controllers. We always strive for best in quality and after-sales services to satisfy customer demands.

❓ FAQ

Q: How long is your production cycle? A: The production cycle for each product is different. Please contact us with the product link, and we will reply as soon as possible.

Q: Can I customize products? A: Yes. We offer OEM/ODM capabilities. Please let us know your specific requirements.

Q: Can I request product samples for testing? A: Yes, we can provide samples. Please specify the product and quantity, and we'll arrange it.

Q: What is your sample policy? A: We can provide samples if we have ready parts in stock, but the sample fee and delivery cost will be charged.

Q: What certifications do your products have? A: Our products are internationally certified, including CE, RoHS, FCC, UKCA, and IEC.

Q: What is the standard warranty for your converters? A: We provide a 2-year standard warranty along with global technical support and spare parts supply.
