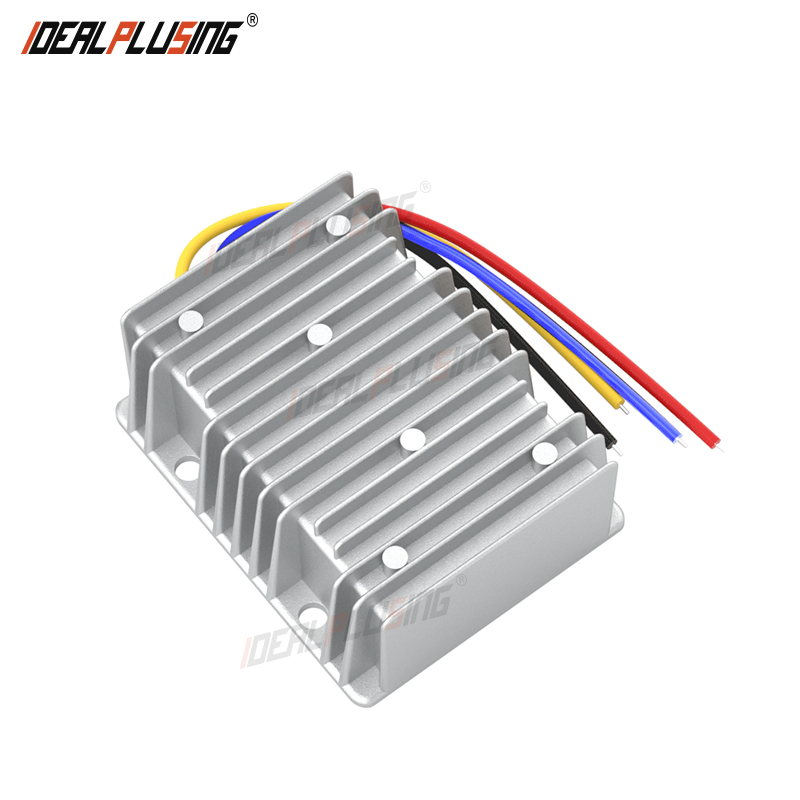

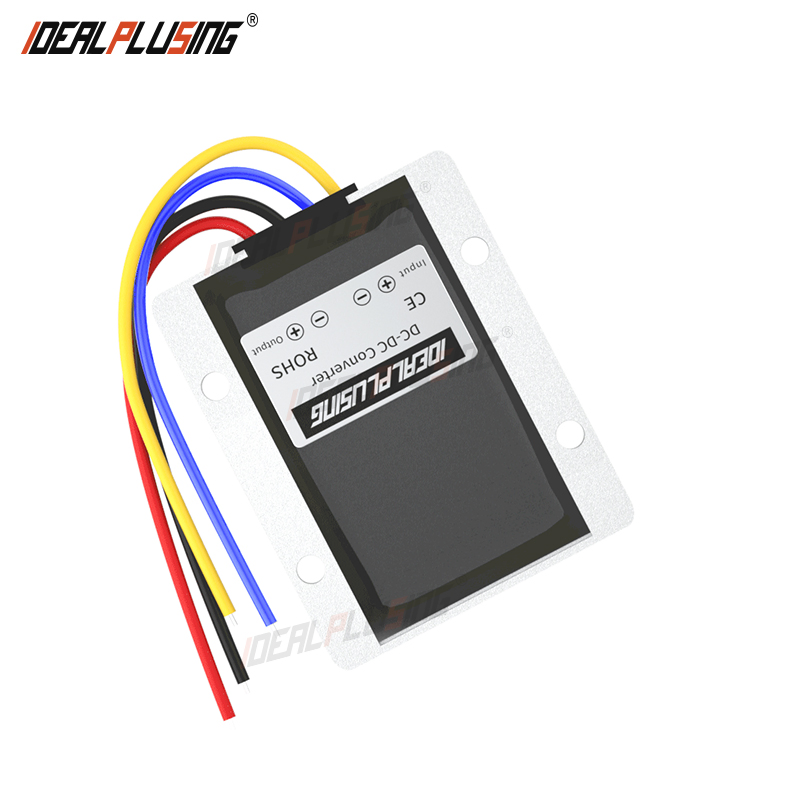

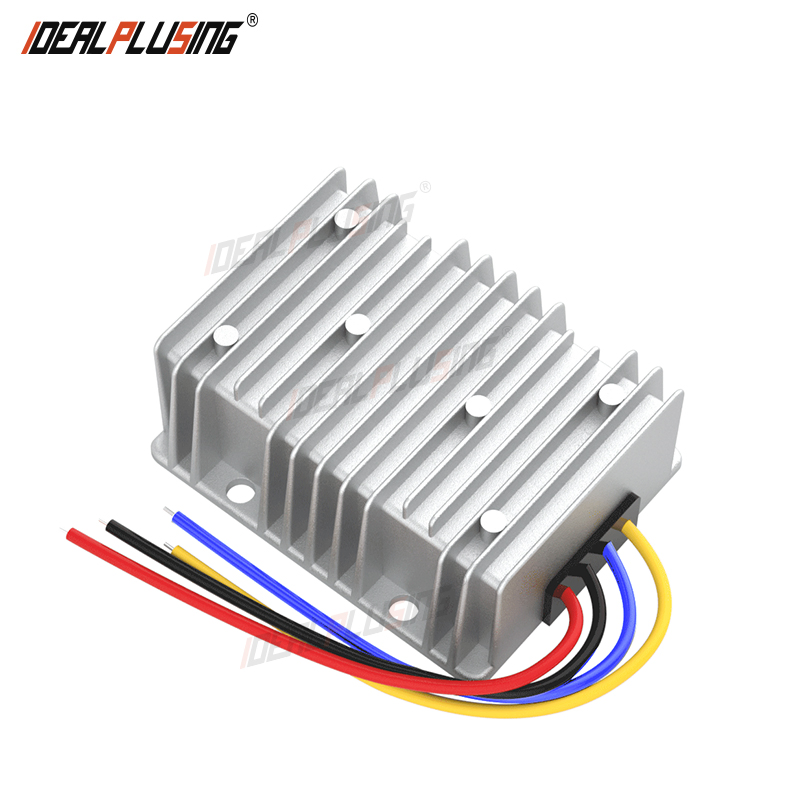

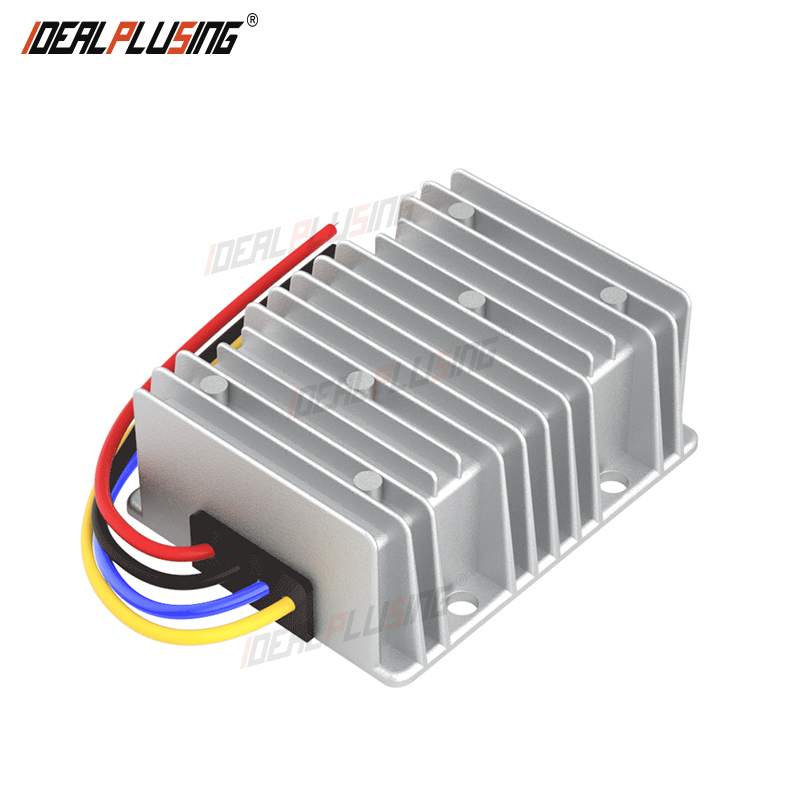

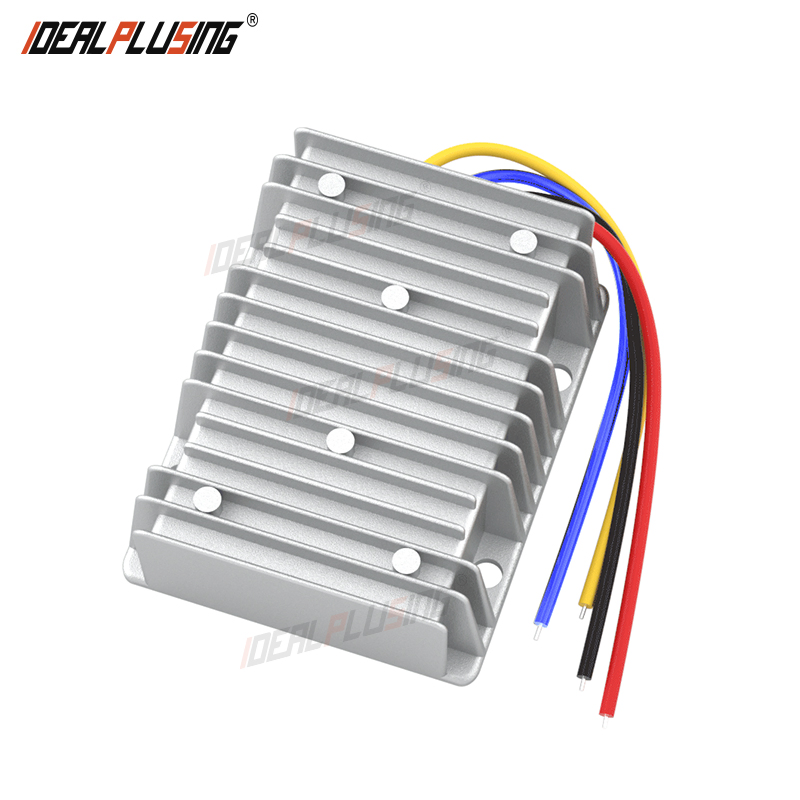

DC DC Isolated Module 48V 56V 72V 80V 96V 100V to 12V 15A Step-Down Module 100V to 12V 15A Buck Boost Isolated Converter
DC DC Isolated Module 48V 56V 72V 80V 96V 100V to 12V 15A Step-Down Module 100V to 12V 15A Buck Boost Isolated Converter
DC DC Isolated Module 48V 56V 72V 80V 96V 100V to 12V 15A Step-Down Module 100V to 12V 15A Buck Boost Isolated Converter
DC DC Isolated Module 48V 56V 72V 80V 96V 100V to 12V 15A Step-Down Module 100V to 12V 15A Buck Boost Isolated Converter
DC DC Isolated Module 48V 56V 72V 80V 96V 100V to 12V 15A Step-Down Module 100V to 12V 15A Buck Boost Isolated Converter
1 / 5
DC DC Isolated Module 48V 56V 72V 80V 96V 100V to 12V 15A Step-Down Module 100V to 12V 15A Buck Boost Isolated Converter
DC DC Isolated Module 48V 56V 72V 80V 96V 100V to 12V 15A Step-Down Module 100V to 12V 15A Buck Boost Isolated Converter
DC DC Isolated Module 48V 56V 72V 80V 96V 100V to 12V 15A Step-Down Module 100V to 12V 15A Buck Boost Isolated Converter
DC DC Isolated Module 48V 56V 72V 80V 96V 100V to 12V 15A Step-Down Module 100V to 12V 15A Buck Boost Isolated Converter
DC DC Isolated Module 48V 56V 72V 80V 96V 100V to 12V 15A Step-Down Module 100V to 12V 15A Buck Boost Isolated Converter

DC DC Isolated Module 48V 56V 72V 80V 96V 100V to 12V 15A Step-Down Module 100V to 12V 15A Buck Boost Isolated Converter

Customization: Available
Application: Power, Electronic, Instrument, Lighting, Rectifier, Audio
Phase: /
Send Inquiry

Product Description

Technical Specifications
Model NO.:IPS-DTDYI80S1215
Core:Shell-type Transformer
Cooling Method:Dry-type Transformer
Certification:CE & RoHS
DC Input:80VDC (50-100VDC)
DC Output:12VDC
Output Current:15A
Max Power:180W
Efficiency:93%
Waterproof Level:IP67
Weight:500g
Specification:100*80*39MM
Introduction

A DC/DC converter is a voltage converter which can effectively output fixed voltage after converting input voltage. These are essential for modern electronics, divided into Boost, Boost-Buck, and Buck types.

  • PWM Control: High efficiency with low ripple and noise.
  • PFM Control: Low power consumption for long-term small load usage.

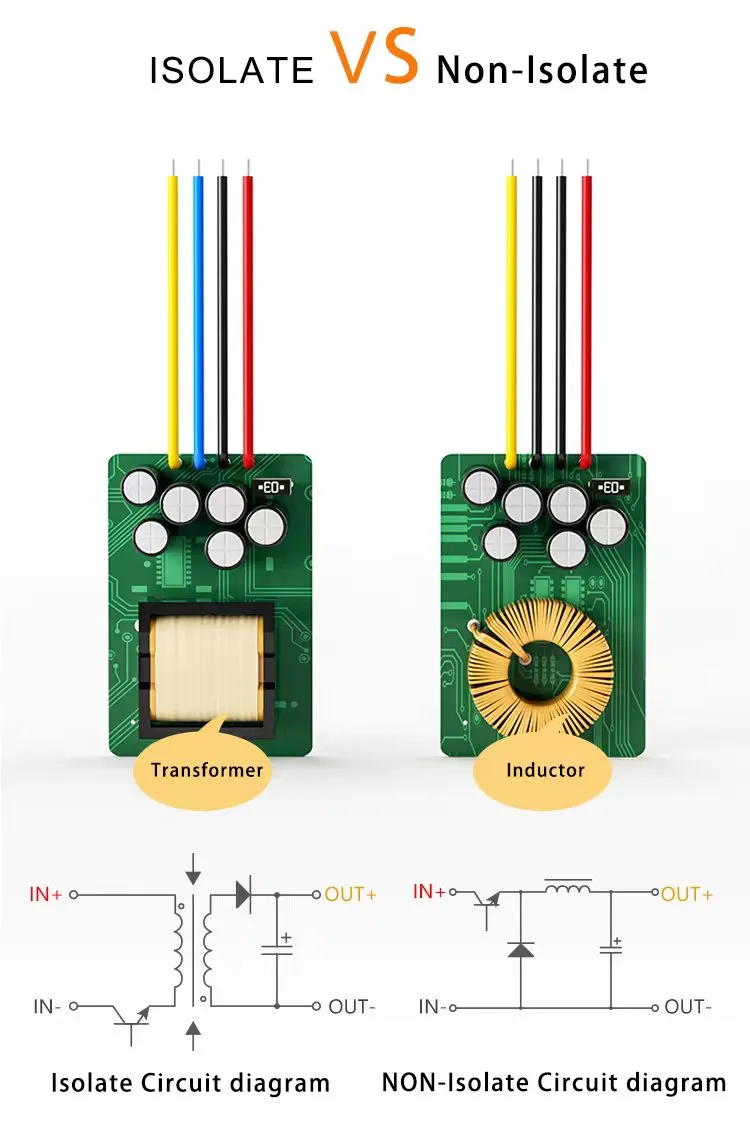

  • Isolated Design: Safe and reliable with electrical isolation between input and output, preventing high voltage damage to expensive equipment.
Key Features
No. Feature Description
1Design meeting RoHS / CE
2High efficiency: 93%
3Isolated between input and output
4Internal capacitor: NCC & NICHICON (high reliability)
5100% full load burn-in test
6Over load, Over temperature and Over voltage protections
7Waterproof level IP67
812 months warranty
Isolated DC DC Converter Product List
Size Model Input Voltage Output Voltage Current
58*40*22MMIPS-DTDYI20-120S121.520-120V12V1.5A
58*40*22MMIPS-DTDYI9-36S1259-36V12V5A
74*74*32MMIPS-DTDYI50-100S121050-100V12V10A
100*80*38MMIPS-DTDYI80S121550-100V12V15A
100*80*38MMIPS-DTDYI75-150S241075-150V24V10A
Product Gallery
DC DC Converter

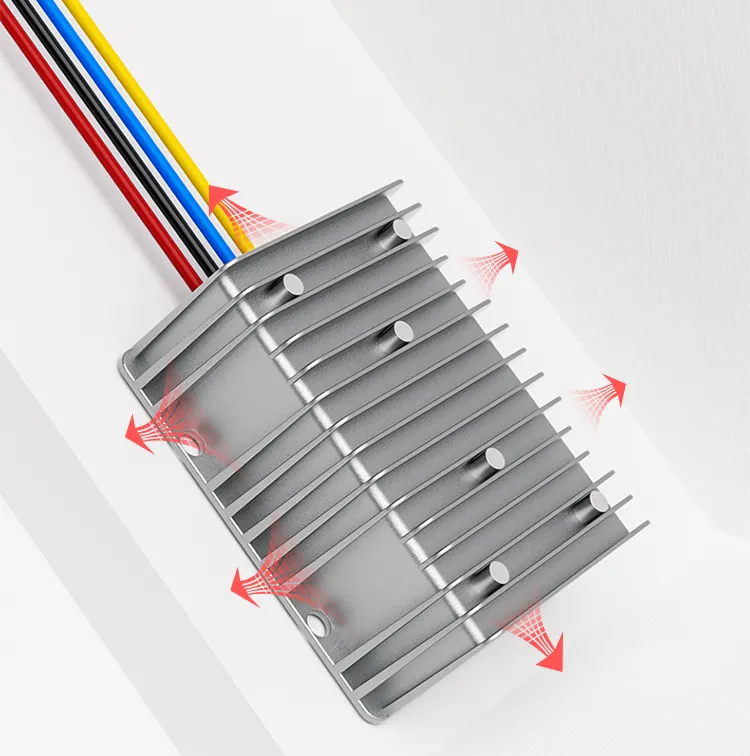

Isolated Module

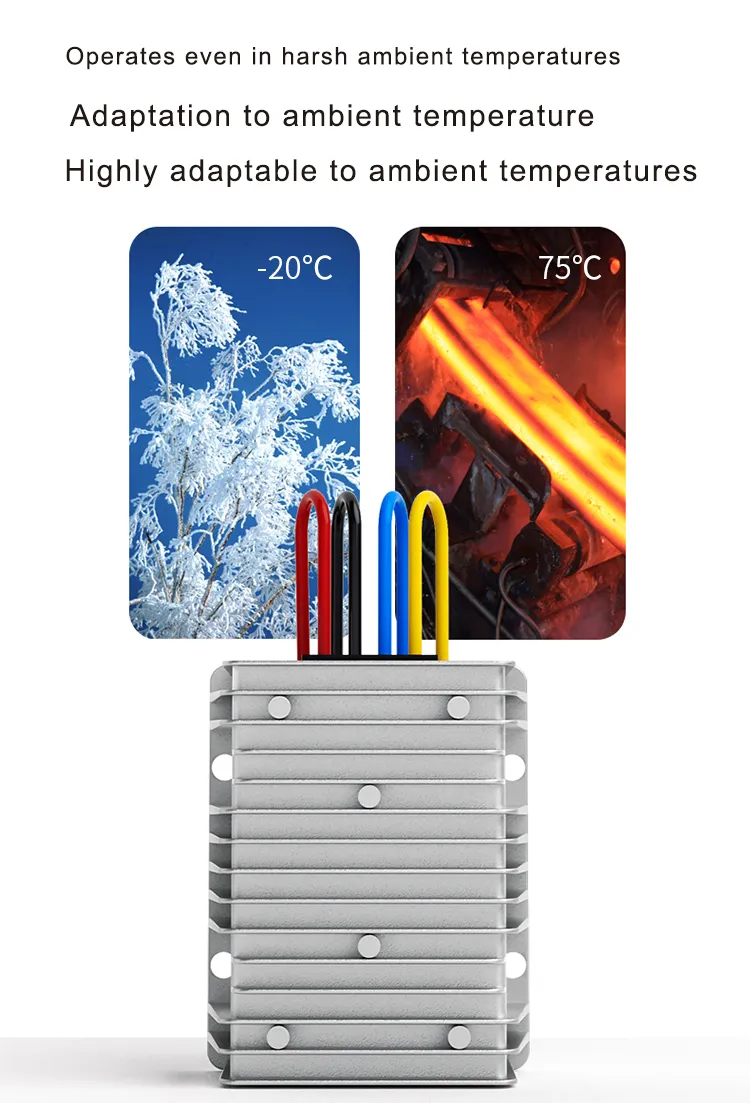

Buck Converter

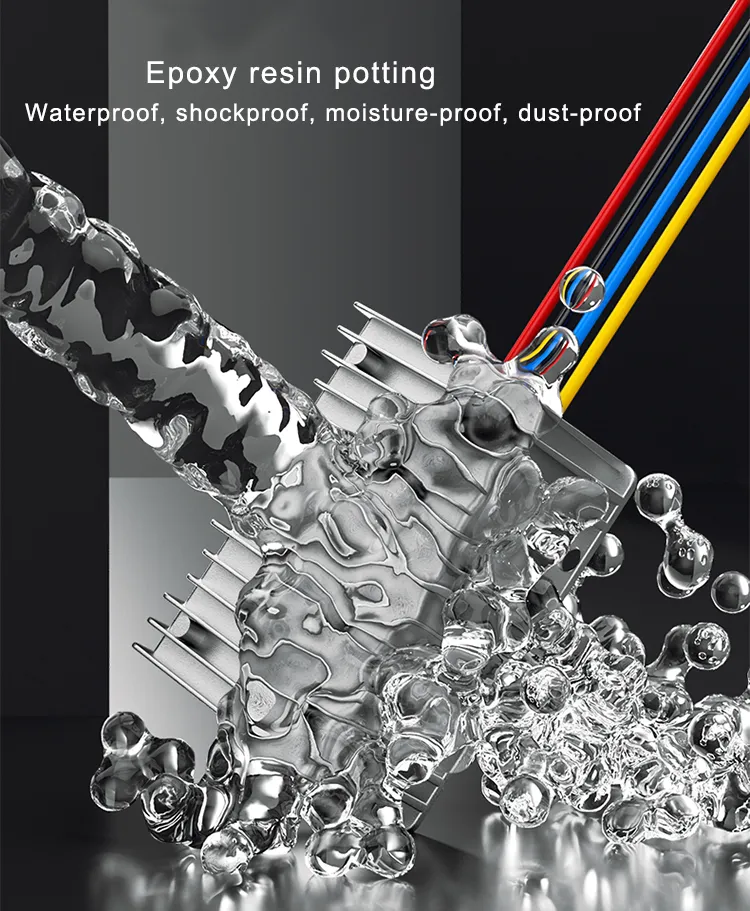

Power Module

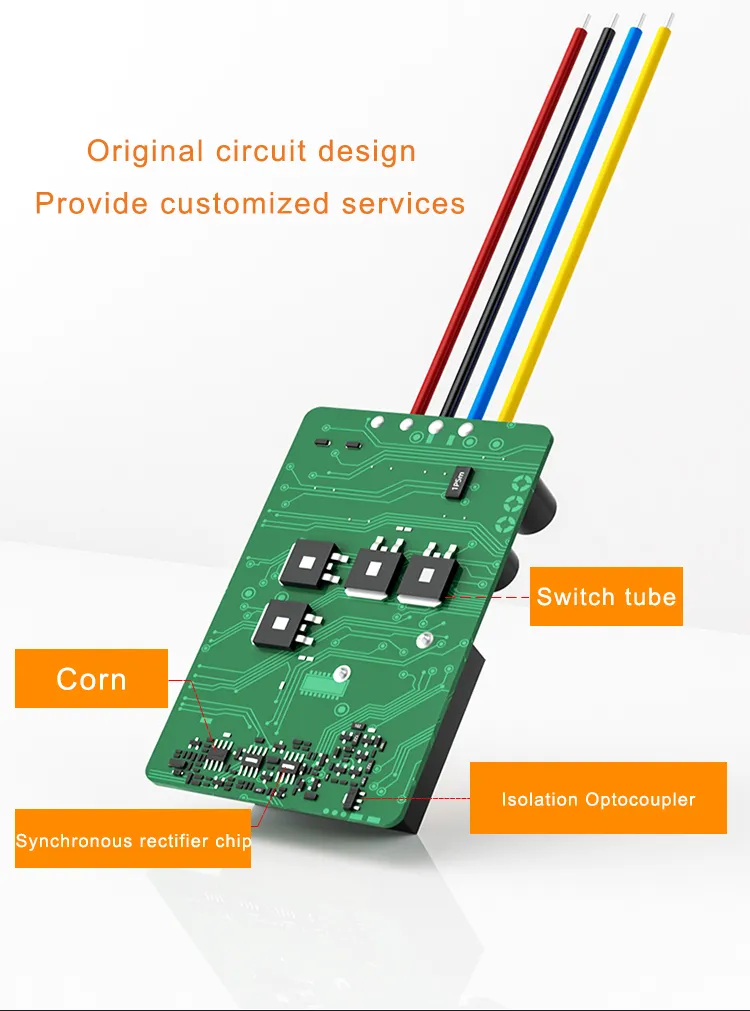

Technical Drawing

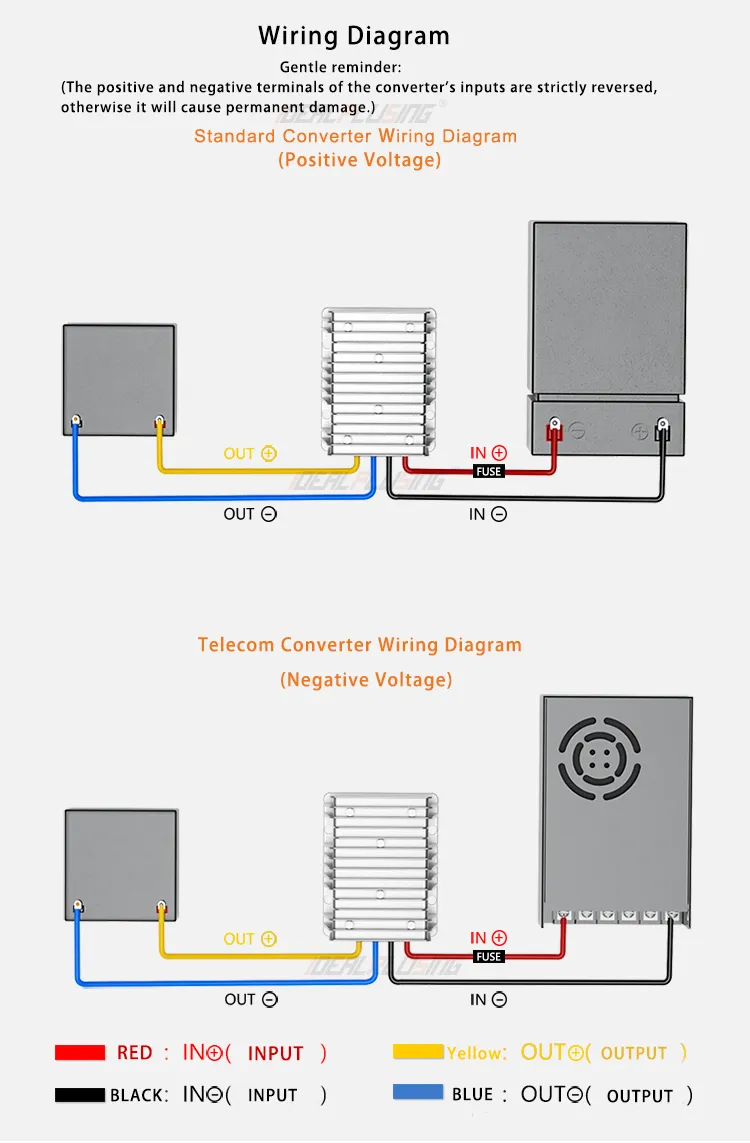

Wiring Diagram
Frequently Asked Questions
Q1: What is the benefit of an "Isolated" DC converter? A: Isolation provides electrical separation between input and output circuits, protecting the load from high voltage surges and preventing ground loops, which ensures higher safety for expensive equipment.
Q2: Is this converter waterproof? A: Yes, it features an IP67 waterproof rating, making it suitable for harsh environments and outdoor applications.
Q3: Does the device include thermal protection? A: Absolutely. It includes Chip Over-Heat Protection, along with Over-Voltage, Over-Current, and Short Circuit protection.
Q4: What is the efficiency rating of this module? A: This module achieves a high conversion efficiency of 93%, reducing energy loss and heat generation.
Q5: Can the output voltage be customized? A: Yes, customization is allowed to meet specific voltage and current requirements for different industrial needs.
Q6: What is the warranty period? A: We provide a 12-month warranty from the date of purchase, ensuring long-term reliability and support.
