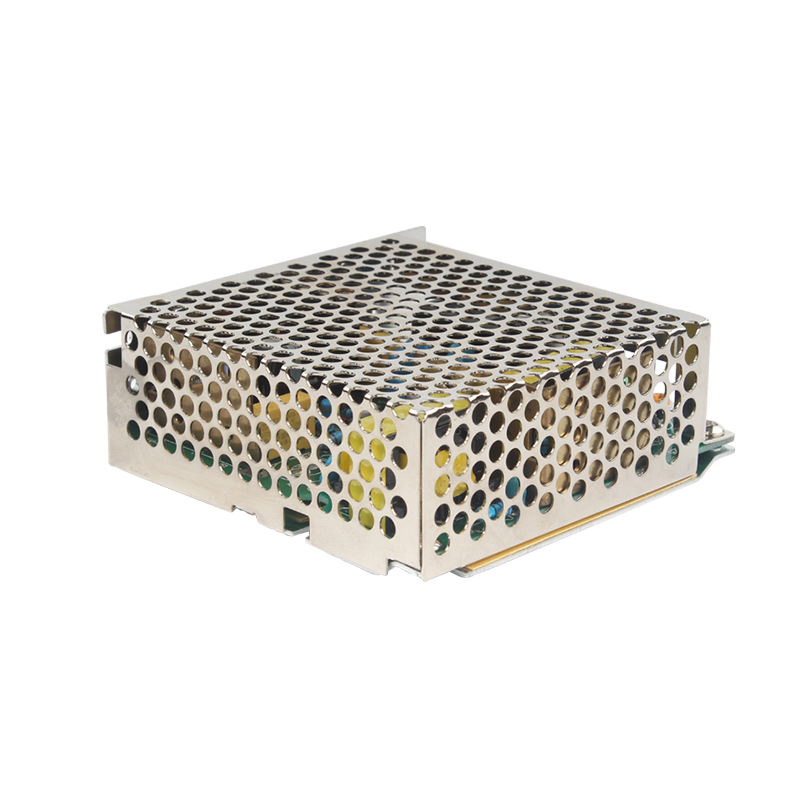

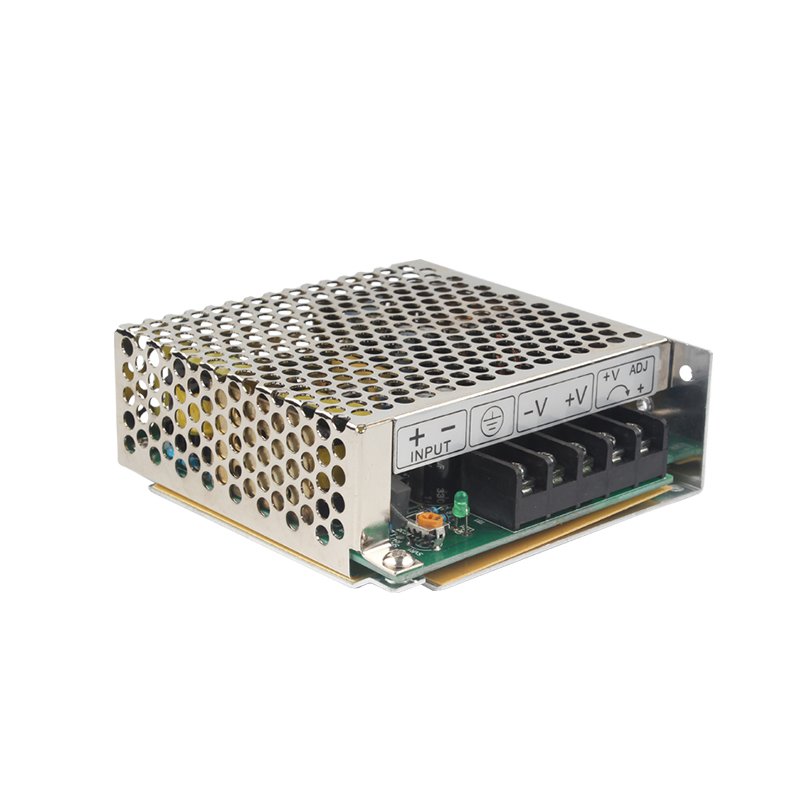

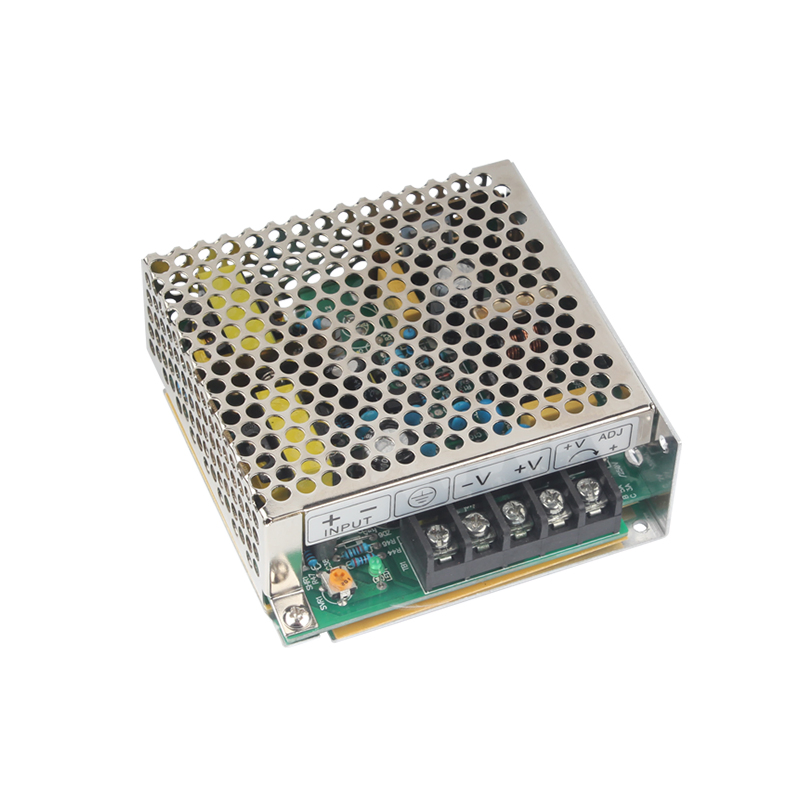

CE DC 19-36V Input 24V 1.1A Output 25W DC Converter

1 / 5

CE DC 19-36V Input 24V 1.1A Output 25W DC Converter

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

🟦 Basic Info.

Model NO.

SD-25B-24

Output Power

1 - 50W

Input Voltage

19-36VDC

Connection Mode

Series Switching Power Supply

Starting Mode

Self-excited

Modulation System

PWM

Certification

CE, RoHS, ISO

Efficiency

78%

Protections

Short Circuit / Overload / Over Voltage

Dimension

99*97*36mm (L*W*H)

Weight

0.38kg

Material

Aluminum

🟦 Product Features

2:1 wide input range

1500VAC I/O isolation

Built-in EMI filter, low ripple noise

100% full load burn-in test

Fixed switching frequency at 83KHz

2 years warranty

Low cost, High reliability

Short circuit / Overload / Over voltage protection

🟦 Specification Table

Model	SD-25A/B/C-5	SD-25A/B/C-12	SD-25A/B/C-24
DC Voltage	5V	12V	24V
Rated Current	5A	2.1A	1.1A
Rated Power	25W	25.2W	26.4W
Ripple & Noise	100mVp-p	120mVp-p	150mVp-p
Input Range	A: 9.2 ~18VDC \| B: 19 ~ 36VDC \| C: 36 ~ 72VDC
Working Temp.	-10 ~ +60ºC (Refer to "Derating Curve")

🟦 Product Images

🟦 FAQ

What is the input voltage range for the SD-25B-24?

The SD-25B series supports a 2:1 wide input range, specifically 19-36VDC for the B-type models.

What kind of protections does this DC-DC converter have?

The unit is equipped with short circuit, overload, and over-voltage protections. It features a hiccup mode that recovers automatically once the fault condition is removed.

Is the SD-25 series tested for reliability?

Yes, every unit undergoes a 100% full load burn-in test to ensure long-term reliability and performance.

What is the warranty period for this product?

We provide a 2-year warranty for the SD-25 series DC-DC converters.

Does this power supply include an EMI filter?

Yes, it has a built-in EMI filter which ensures low ripple noise and compliance with EN55022 (CISPR22) Class B standards.
