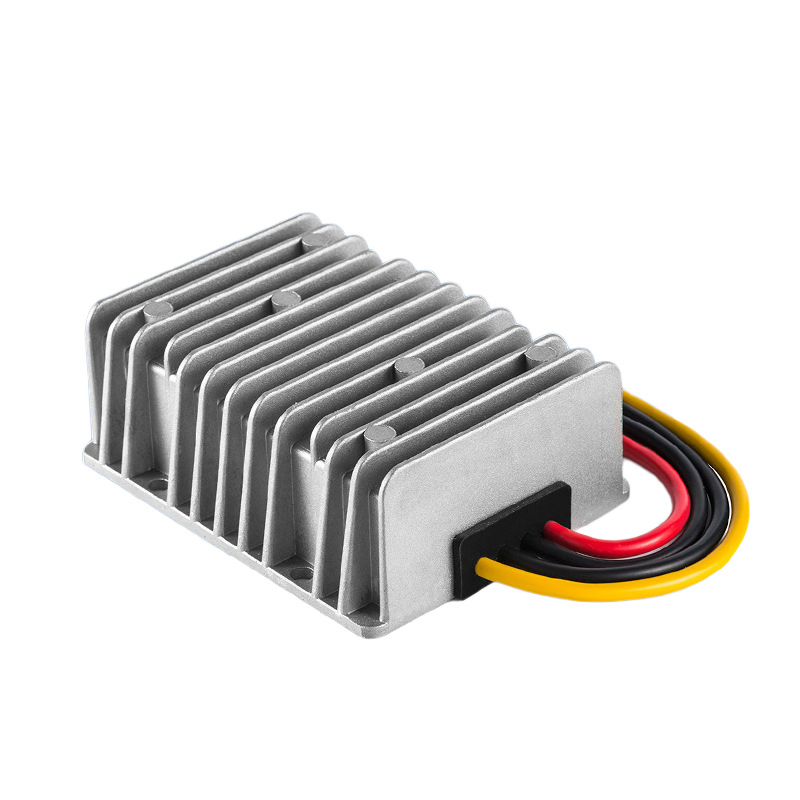

6V 7.2V 8.4V to 12V Boost Step-up Converter DC-DC 12V Vehicle Power Converter Waterproof Monitoring Power Supply

1 / 5

6V 7.2V 8.4V to 12V Boost Step-up Converter DC-DC 12V Vehicle Power Converter Waterproof Monitoring Power Supply

Customization:	Available
Application:	Power, Instrument, Lighting, Audio
Phase:	Single

Send Inquiry

Product Description

📊 Basic Information

Model NO.

BC6-11S12V15A6L

Core

Shell-type Transformer

Cooling Method

Dry-type Transformer

Winding Type

Auto-transformer

Certification

ISO9001

Usage

Power Transformer

Frequency

Low Frequency

Origin

China

Capacity

8000PCS

🛠️ Product Description

Core Features:

CE & ROSH compliant design
Non-isolated power supply
Synchronous rectification for high efficiency

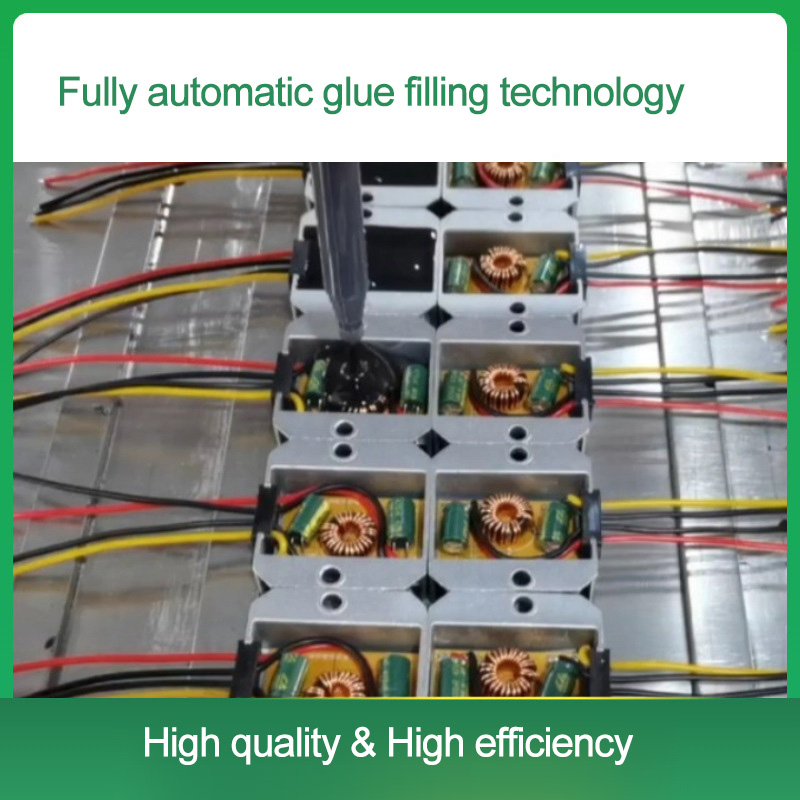

Waterproof, moisture-proof & shock-resistant potting

Integrated Protection:

Overcurrent protection
Short circuit protection
Overtemperature protection

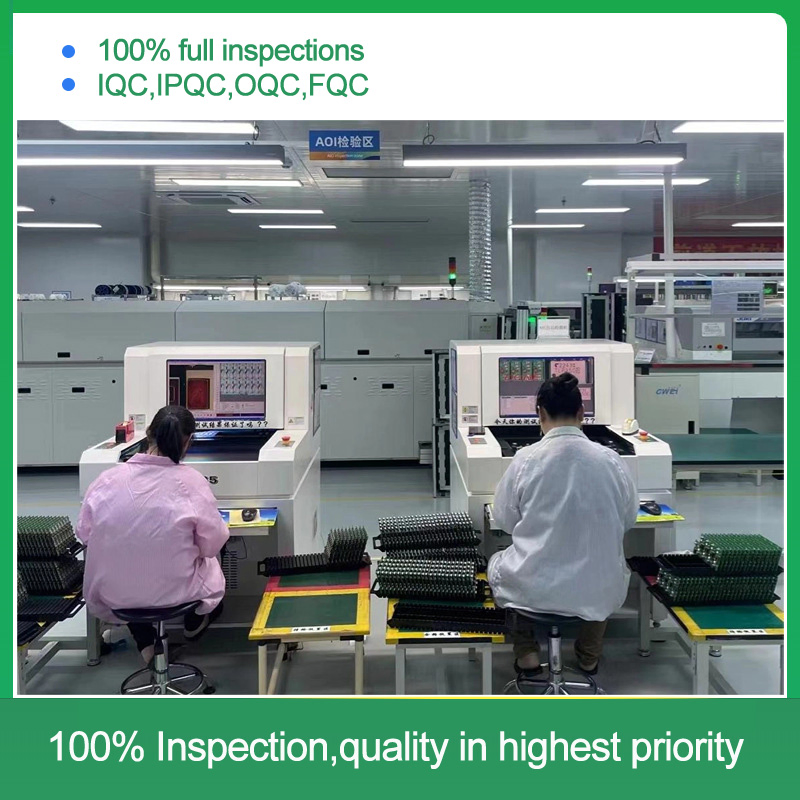

ISO9001 quality standard

🚀 Typical Applications

Video surveillance & EVs

Communication & In-vehicle equipment

Solar energy & Energy storage

Robots, UAVs & LED displays

📸 Detailed Photos

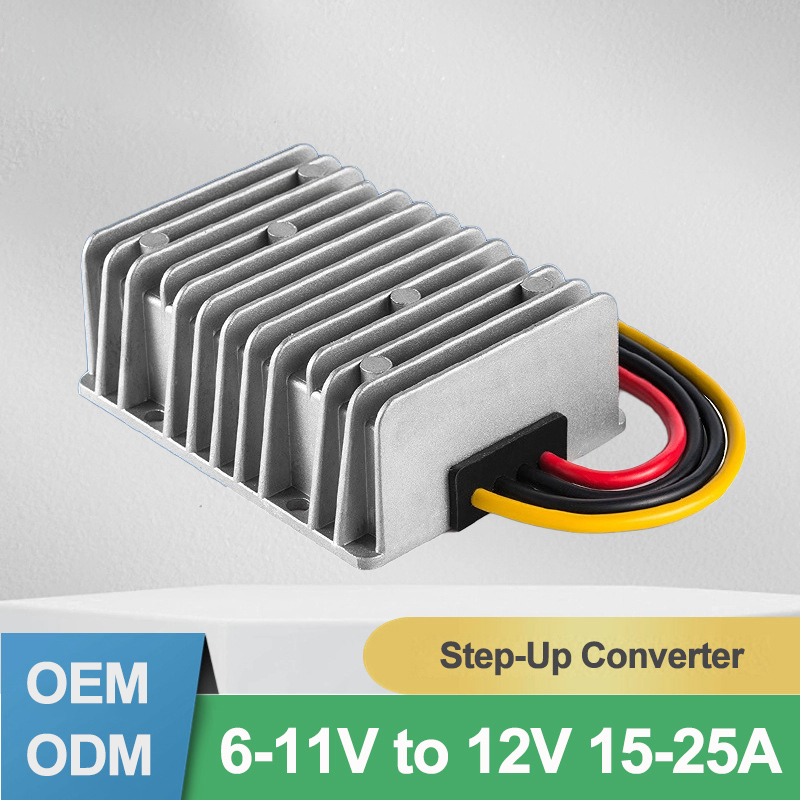

📋 Product Parameters

Parameter	BC6-11S12V15A6L	BC6-11512V20A6L	BC6-11S12V22A6L	BC6-11512V25A6L
Input Range	6-11V DC
Output Voltage	12V DC
Max Current	15A	20A	22A	25A
Max Power	180W	240W	264W	300W
Efficiency	95%
Waterproof	IP67
Dimensions	1008039MM

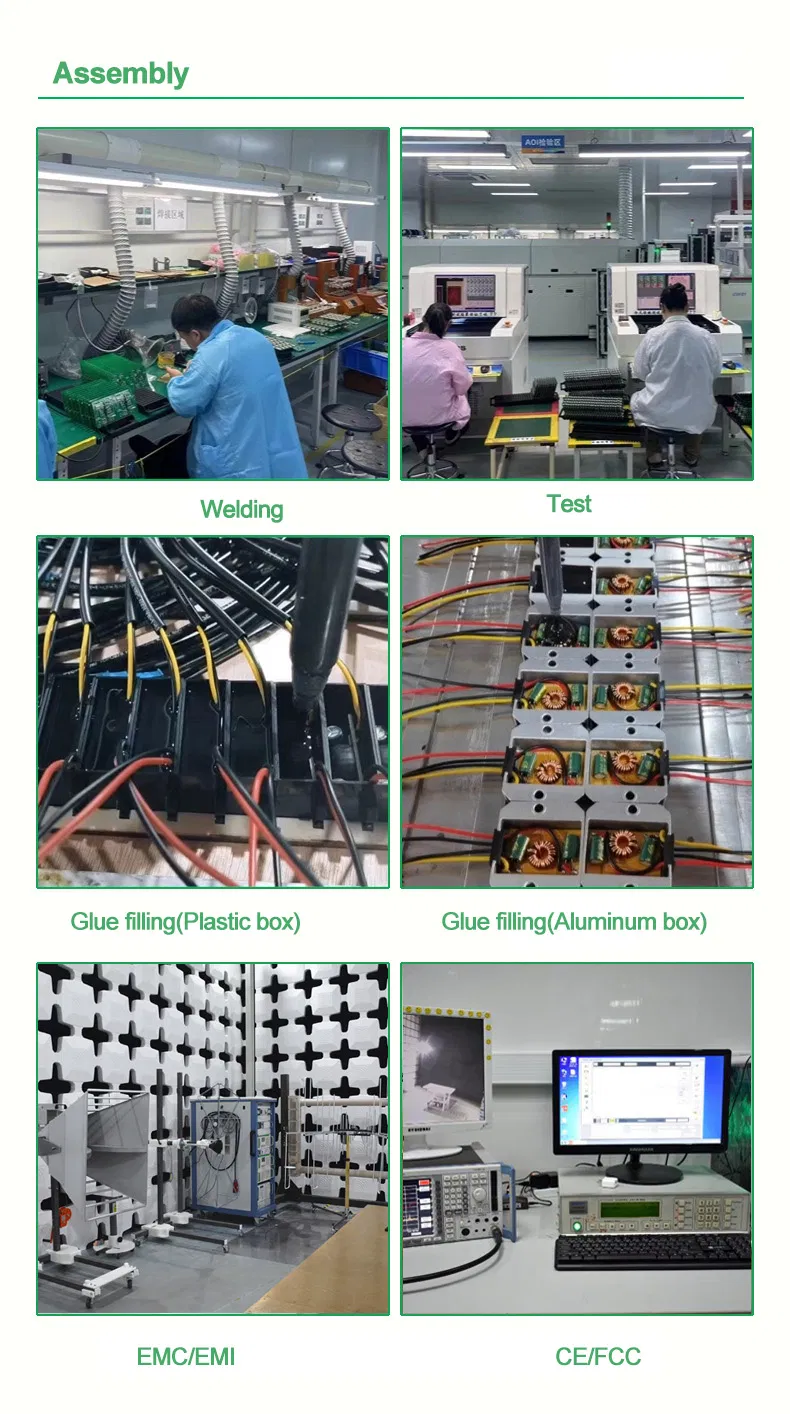

🏢 Specialized Production

Our production base specializes in PoE switches, PoE injectors, DC-DC power converters, and car power supplies. We cover a wide range of DC conversion environments (5-100V) with power outputs from 15W to 1000W. With a senior R&D team possessing over 10 years of experience, we excel in handling complex EMI and EMC requirements. Our facilities are ISO9001 certified, and products carry CE, FCC, and RoHS marks, primarily serving European and American markets.

Frequently Asked Questions

Is the DC-DC converter waterproof?

Yes, the device features a full potting process and is IP67 rated, making it waterproof, dust-proof, and shock-resistant for harsh environments.

What is the energy conversion efficiency?

The converter utilizes synchronous rectification technology, achieving a high conversion efficiency of approximately 95%.

Does it have built-in safety protection?

Yes, it includes integrated overcurrent, short circuit, and overtemperature protection to ensure stable operation.

What are the input and output wire specifications?

The input wires (Red/Black) and output wires (Yellow/Black) are typically 13-14CM in length.

Can this be used for vehicle applications?

Absolutely. It is ideal for in-vehicle equipment, electric vehicles, golf carts, forklifts, and marine power conversion.

What is the working temperature range?

The device is designed to operate efficiently in temperatures ranging from -20°C to 65°C.
