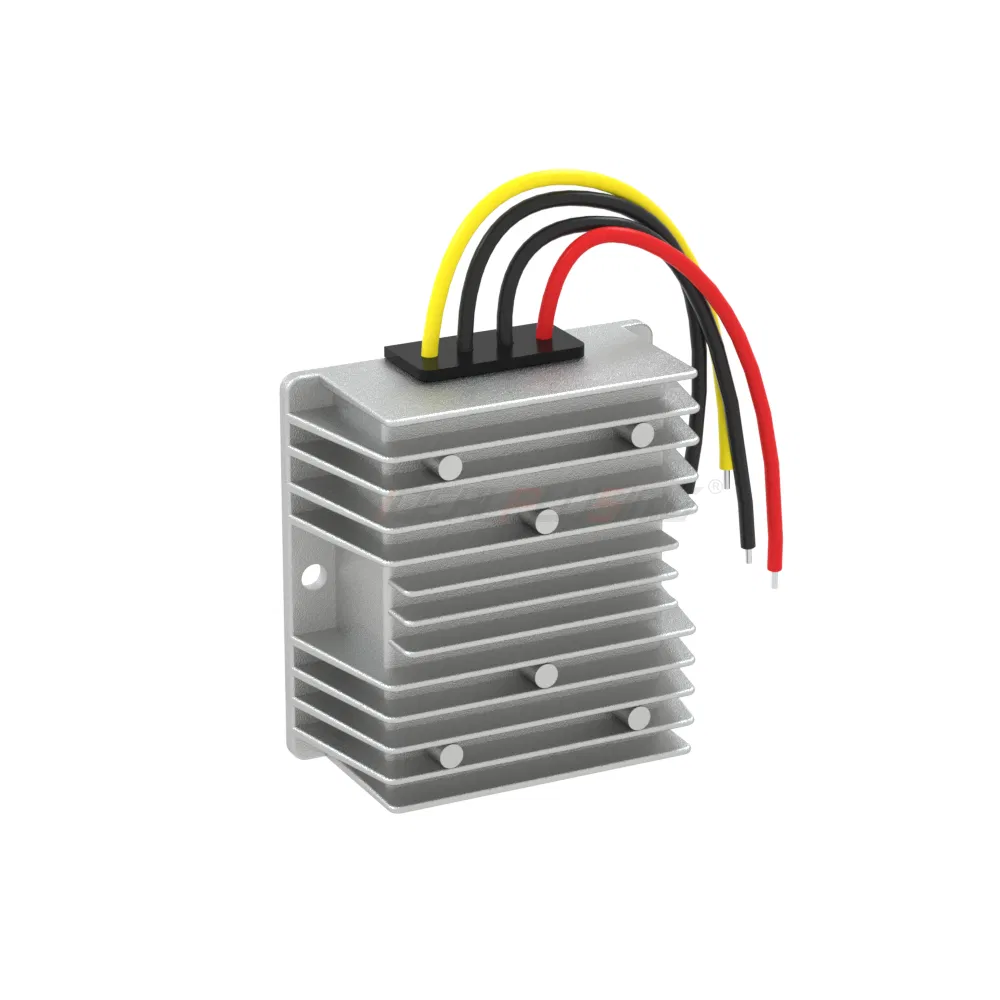

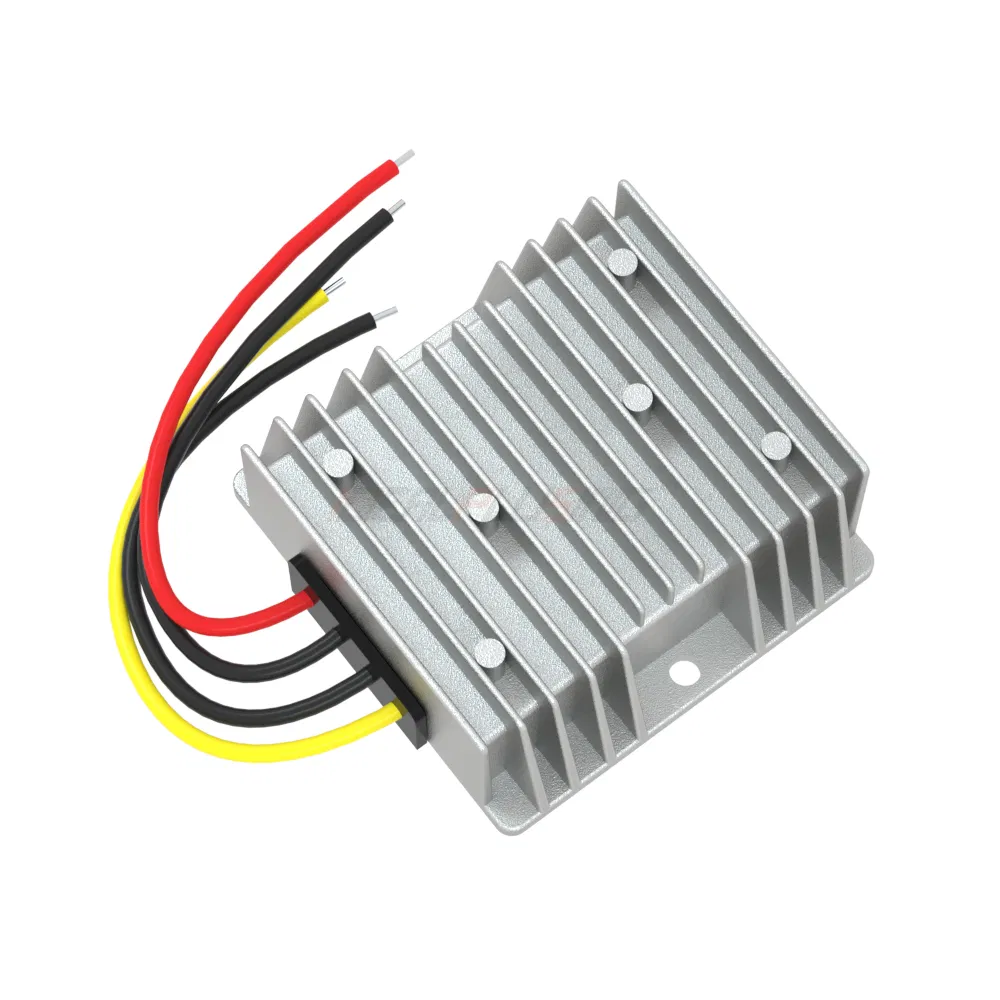

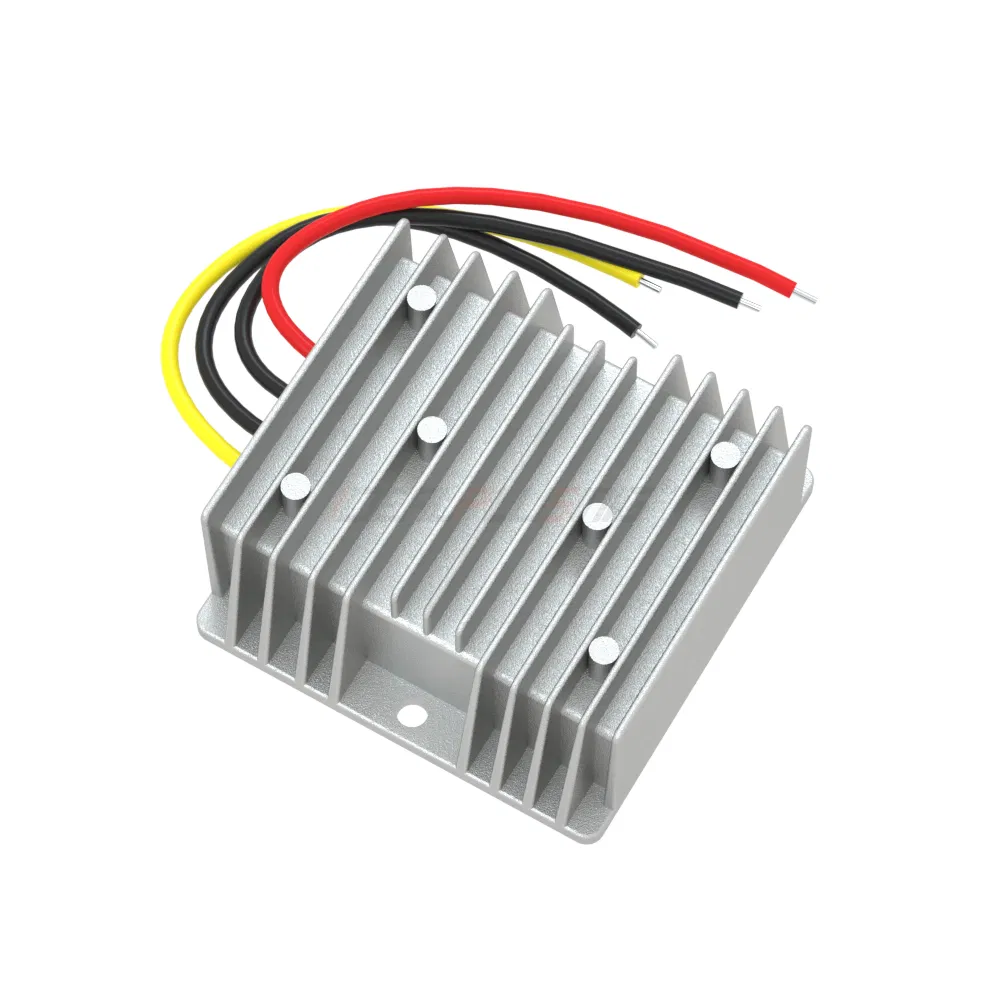

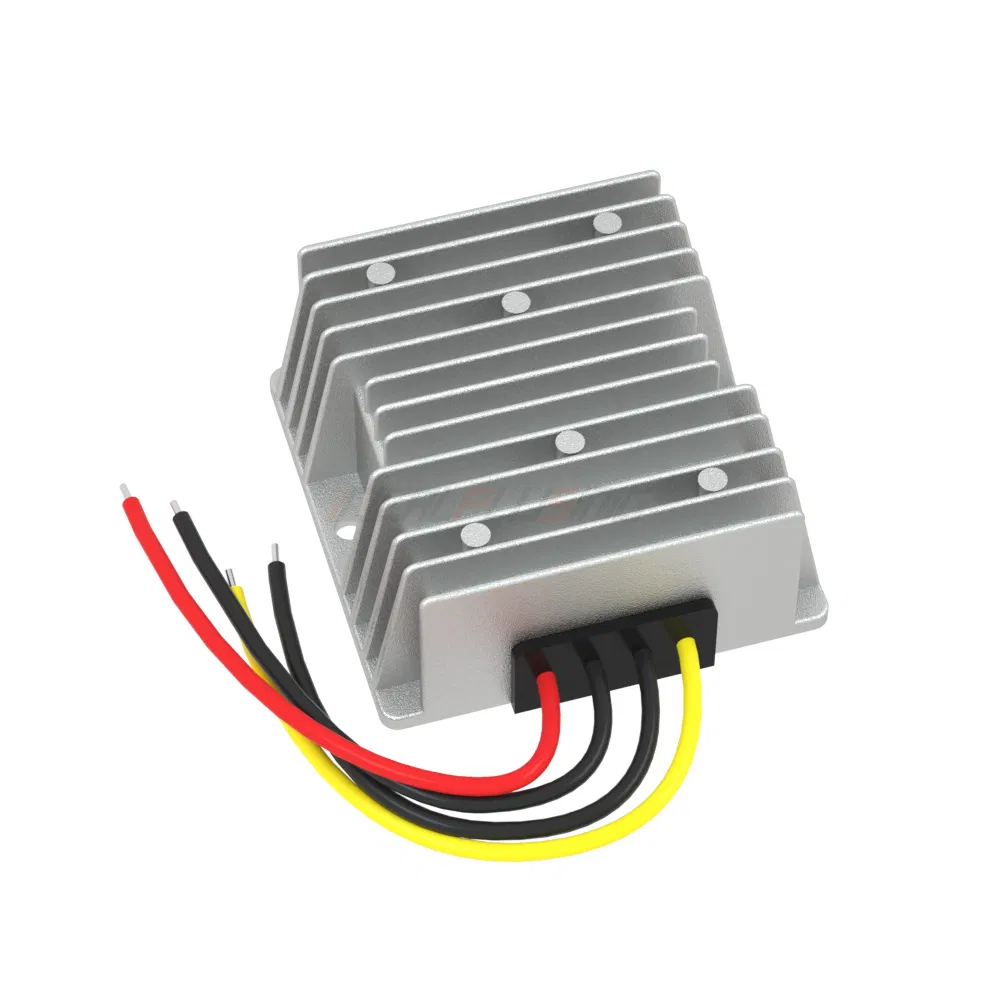

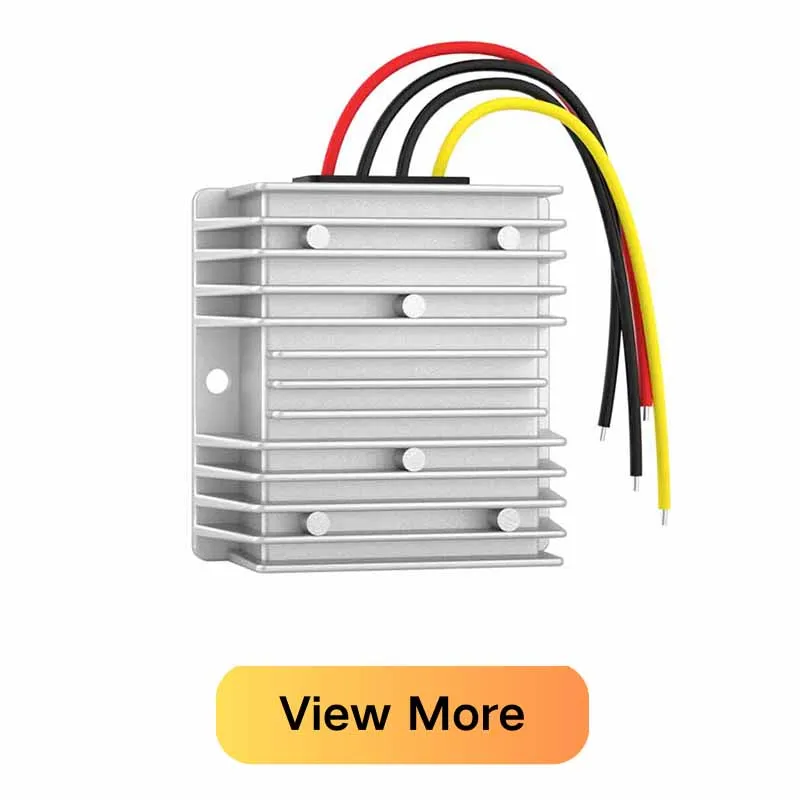

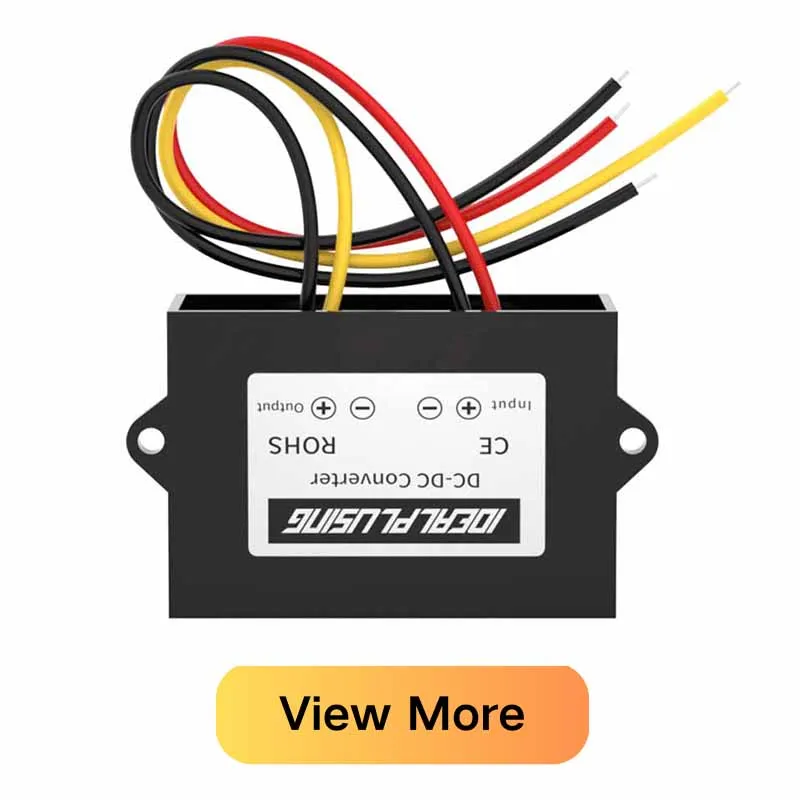

Fast 12V to 56V DC-DC Step Up Module Converter is a high-efficiency voltage transformer designed for power tools and industrial applications. It ensures a stable fixed voltage output regardless of input fluctuations.
Our converters utilize PWM (Pulse Width Modulation) for high efficiency and low noise, and PFM (Pulse Frequency Modulation) for low power consumption during low-load periods. The system automatically switches between modes to optimize performance.
We provide both isolated and non-isolated design options with customized ranges from 1V to 1000V DC and 1A to 1000A.
| Input Range | Output Voltage | Current (AMP) | Max Power | Size (MM) | Weight (G) |
|---|---|---|---|---|---|
| 10~20VDC | 56VDC | 1A | 56W | 74*74*32 | 300G |
| 10~20VDC | 56VDC | 2A | 112W | 74*74*32 | 300G |
| 10~20VDC | 56VDC | 3A | 168W | 74*74*32 | 300G |
| 10~20VDC | 56VDC | 4A | 224W | 74*74*32 | 300G |
| 10~20VDC | 56VDC | 5A | 280W | 125*105*52 | 1000G |
| 10~16VDC | 56.4VDC | 20A | 1128W | 220*130*50 | 2500G |
| 10~16VDC | 56.4VDC | 30A | 1692W | 220*156*65 | 3700G |
IPS-DTD24S121
12VDC 1A 12W
IPS-DTD5S125
12VDC 5A 60W
IPS-DTD72S1220
12VDC 20A 240W
These converters are widely used in mobile devices, digital cameras, portable media players, golf carts, forklifts, and industrial power tool systems.
