JDI Power Supply
1 / 5
| Model | 24VDC 3A - 40A Series |
| Transport Package | Carton |
| Specification | 300*195*90MM |
| Origin | China |
| HS Code | 8504409999 |
| Production Capacity | 100,000 Units |
DC/DC converter is a voltage converter which can effectively output fixed voltage after converting input voltage. These are divided into three categories: Boost type, boost & buck type, and buck type.
PWM control type has high efficiency and good output voltage ripple and noise. PFM control type has the advantage of low power consumption even if it is used for a long time, especially under small load. PFM control is implemented when PWM/PFM converts to small load, and it is automatically converted to PWM control when heavy load occurs.
Customization Capabilities: We specialize in customizing DC-DC converters to meet your specific requirements. With customized input and output voltage and current, our offerings range from 1V to 1000V DC and 1A to 1000A. We provide both isolated and non-isolated converter design options.

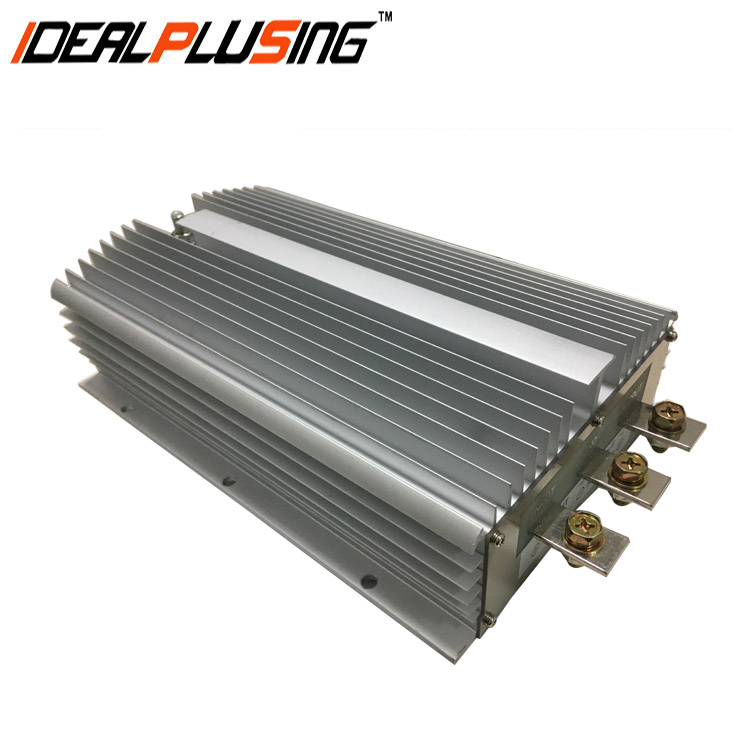

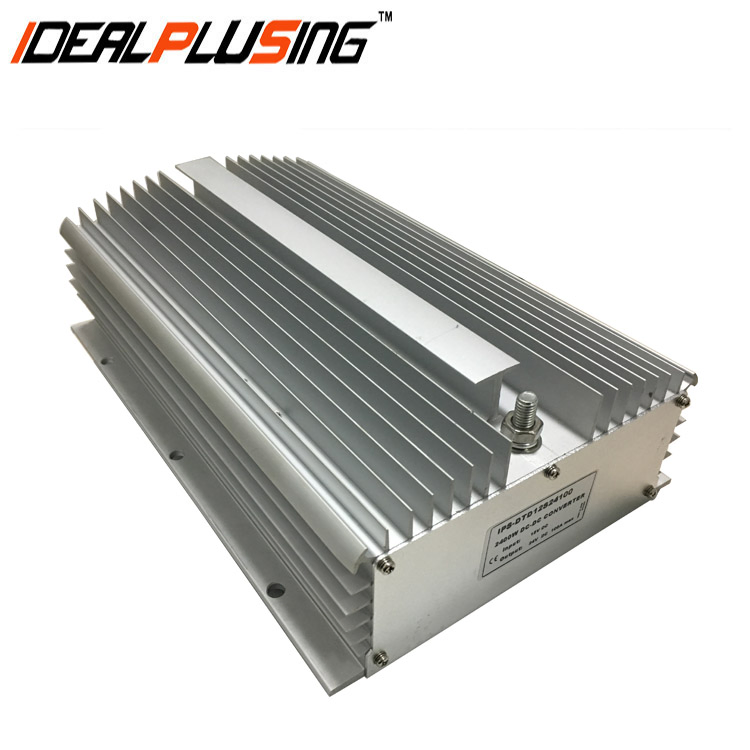

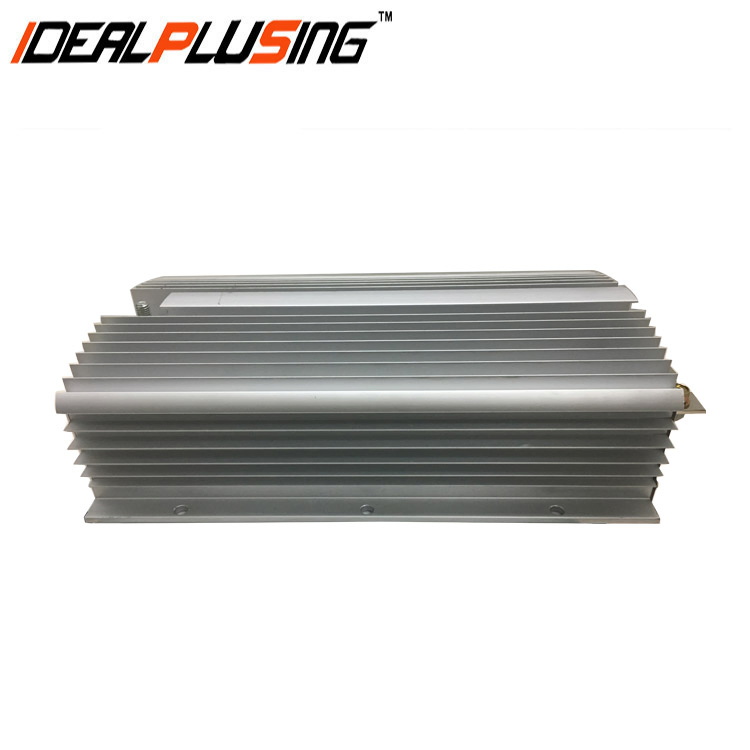

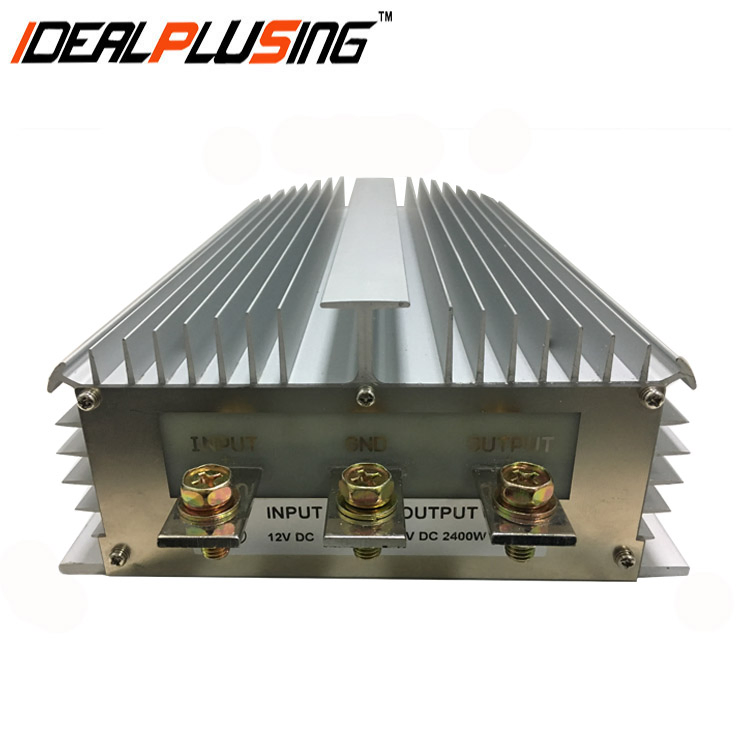

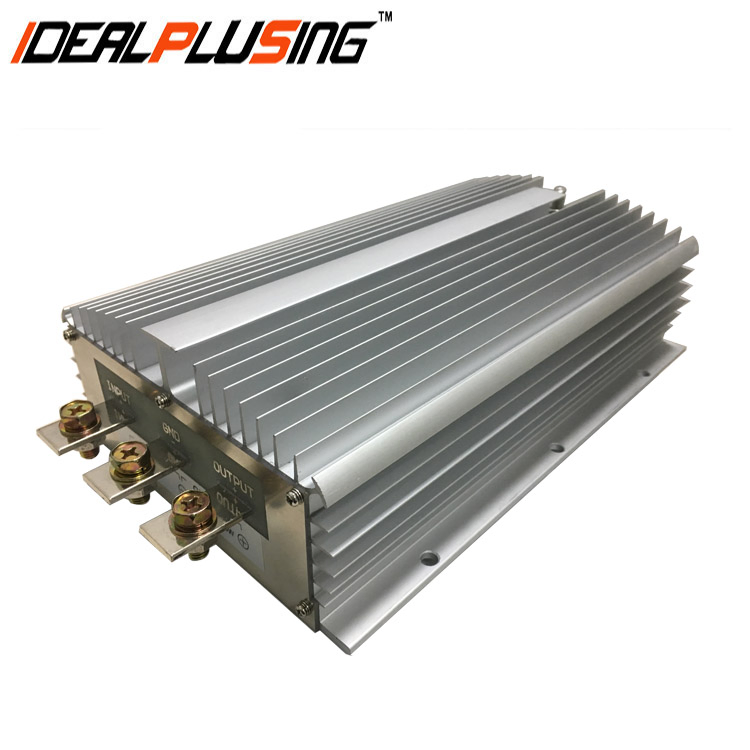

| Parameter | Details |
|---|---|
| Type | Non-isolated Boost |
| Model | IPS-DTD12S24100 |
| Input Voltage | 10-15VDC |
| Output Voltage | 24VDC |
| Output Current | 100 Amps |
| Output Power | 2400 Watts |
| Material | Aluminum Shell |
| Waterproof Level | IP65 |

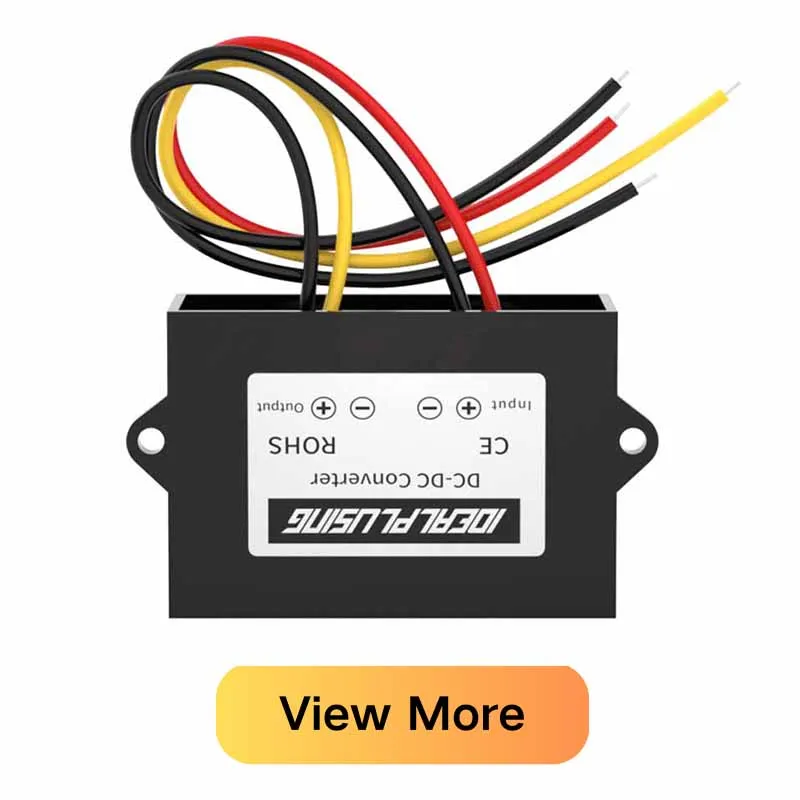

IPS-24S121 (12W)

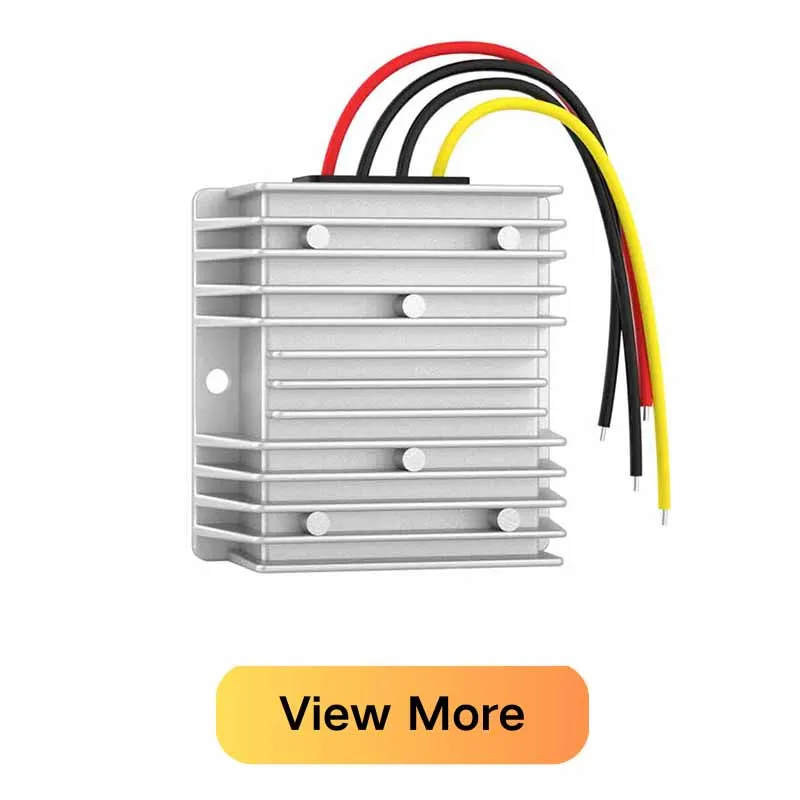

IPS-DTD5S125 (60W)

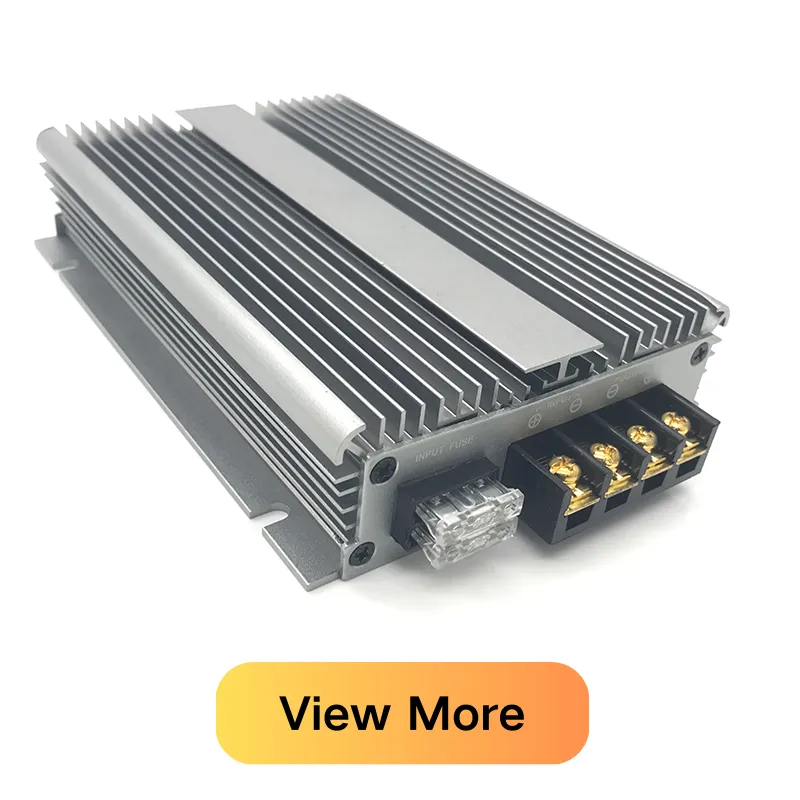

IPS-DTD72S1220 (240W)
A: PWM control offers high efficiency and low noise for heavy loads, while PFM control provides lower power consumption for long-term use under small loads.
A: Yes, we specialize in customization from 1V to 1000V DC and currents from 1A to 1000A to meet specific industrial needs.
A: Many of our high-power models feature an IP65 waterproof rating, making them suitable for demanding environments.
A: We use high-quality Aluminum for our shells to ensure excellent heat dissipation and durability.
A: Yes, we offer both isolated and non-isolated design options depending on your application requirements.
A: Our dedicated team endeavors to respond to all technical and sales inquiries within one hour.
