Yingjiao TV Antenna Power Supply Manufacturer 15W AC to DC CATV Power Adapter Wall Mounted

1 / 5

Yingjiao TV Antenna Power Supply Manufacturer 15W AC to DC CATV Power Adapter Wall Mounted

Customization:	Available
Usage:	Laptop, Switching, Mobile Phone, Game Player, Digital Camera, Phone, Display
Output Type:	AC or DC

Send Inquiry

Product Description

Basic Specifications

Model NO.YL15U-F

CertificationTUV, RoHS, ISO9001, CCC

ColorBlack

Internal StructureLinear Model

Power SourceHalf-Bridge Type

ConnectionPlug In

ProtectionShort Circuit, Overvoltage, Overload

Warranty3 Years

Production Capacity3,000 PCS/Day

Product Overview

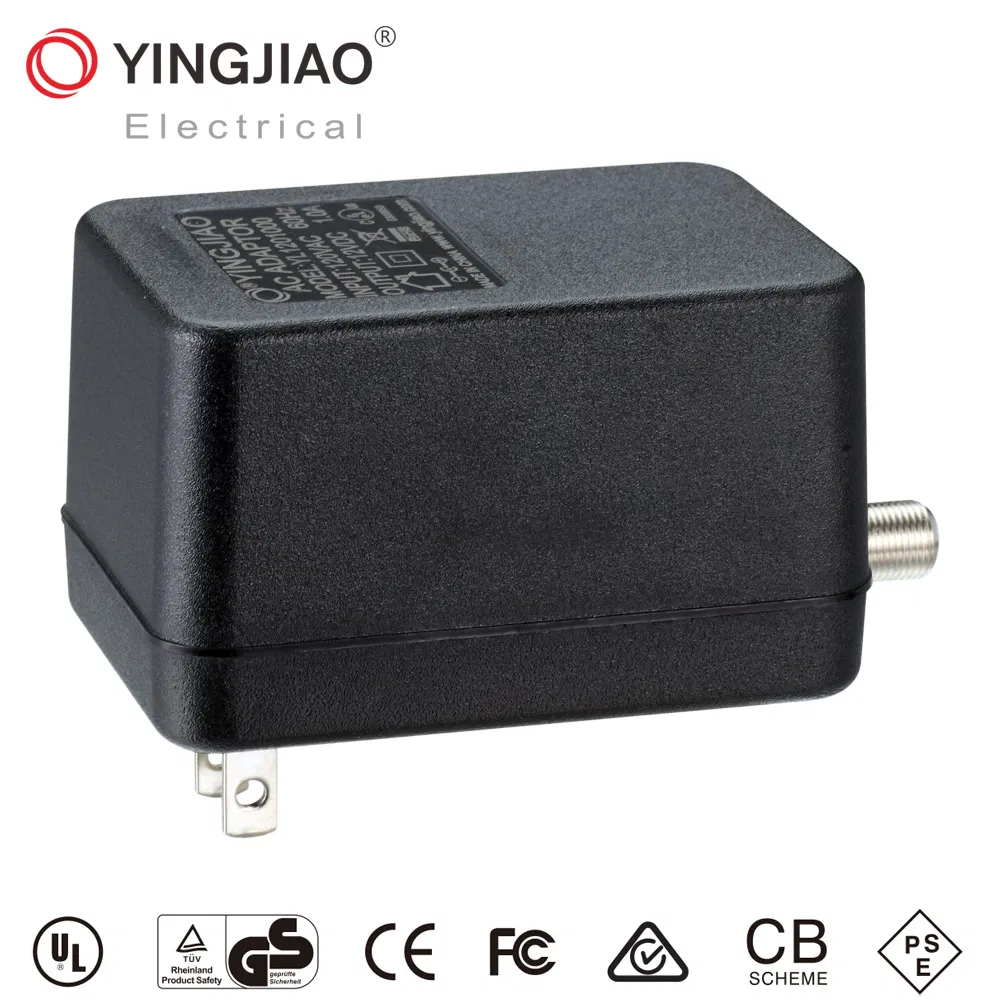

TV Antenna Power Supply 15W AC to DC CATV Power Adapter

Series: YL15 series
Power Range: 6-15W
Input: 220-240V AC 50/60Hz
Dimension: 81*55*47mm

Packaging & Delivery

Packaging: PE bag, White Box + Carton.
Delivery Time: 15-25 days.

Technical Data

Linear power adapter	Wall Mount type
Input current	0.25A max
Inrush Current	65 Amps max. at 230VAC/50Hz
Leakage Current	0.25mA Max
No Load Consumption	< 1.5W
Working TEMP	-20°C to 50°C
Protection	SCP, OVP, OCP
MTBF	100,000 hours

Voltage & Current Variations

Model	Voltage	Current	Power	Ripple
YL15-0502500	5V	2.5A	12.5W	50mVp-p
YL15-0901200	9V	1.2A	10.8W	90mVp-p
YL15-1501000	15V	1.0A	15.0W	150mVp-p
YL15-2400600	24V	0.6A	14.4W	240mVp-p

Product Showcase

Frequently Asked Questions

What is the warranty period for this power adapter?

We offer a 3-year warranty for the YL15 series power adapters, ensuring long-term reliability for your TV antenna systems.

Does this adapter support international safety standards?

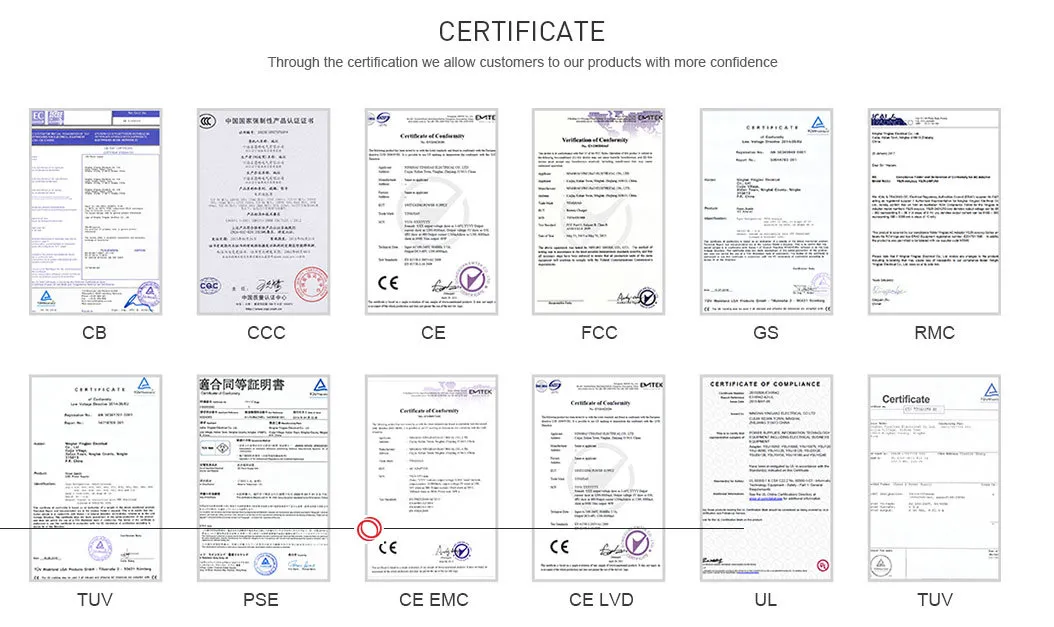

Yes, it carries multiple certifications including UL, GS, CE, EMC, TUV, and CCC, meeting global safety requirements.

What kind of protections are built-in?

The adapter features Short Circuit Protection (SCP), Over Voltage Protection (OVP), and Over Current Protection (OCP).

Can I customize the output voltage?

Yes, we provide customized services for output voltages ranging from 5V to 36V (AC/DC) to fit your specific equipment needs.

What is the typical lead time for orders?

The standard delivery time is 15-25 days after the receipt of the deposit.

What is the MTBF (Mean Time Between Failures)?

The adapter is designed for high durability with a minimum MTBF of 100,000 hours at full load and 25°C ambient temperature.
