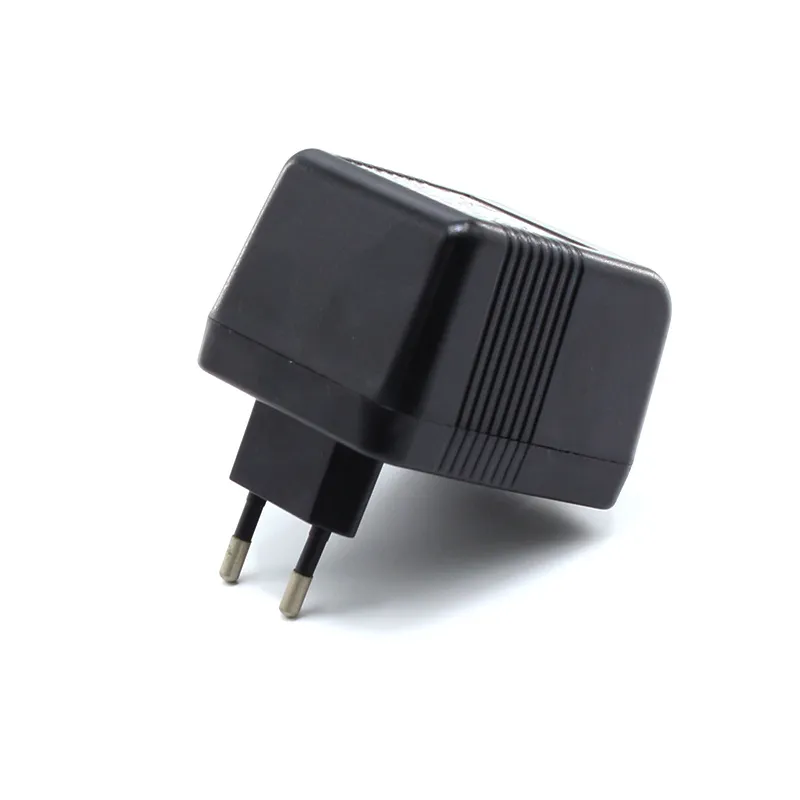

5V/6V/15V/24V/36V 2A/1.2A/1A 6W/7W/9W/12W/15W Linear Power Adapter China Factory Wholesale

1 / 5

5V/6V/15V/24V/36V 2A/1.2A/1A 6W/7W/9W/12W/15W Linear Power Adapter China Factory Wholesale

Customization:	Available
Usage:	Laptop, Switching, Mobile Phone, Game Player, Digital Camera, Phone, Display
Output Type:	AC or DC

Send Inquiry

Product Description

Basic Specifications

Model NO.

YL7

Certification

TUV, RoHS, ISO9001, CCC, CE, EMC, Reach

Type

Linear Model

Connection

Plug In

Protection

Hipot, Short Circuit, Overvoltage, Overload

Warranty

3 Years

Experience

20 Years

Capacity

3,000 PCS/Day

Product Description

Professional manufacturer of wall-mount AC/DC power adapter, AC adapter, switching power adapter, SMPS, etc.

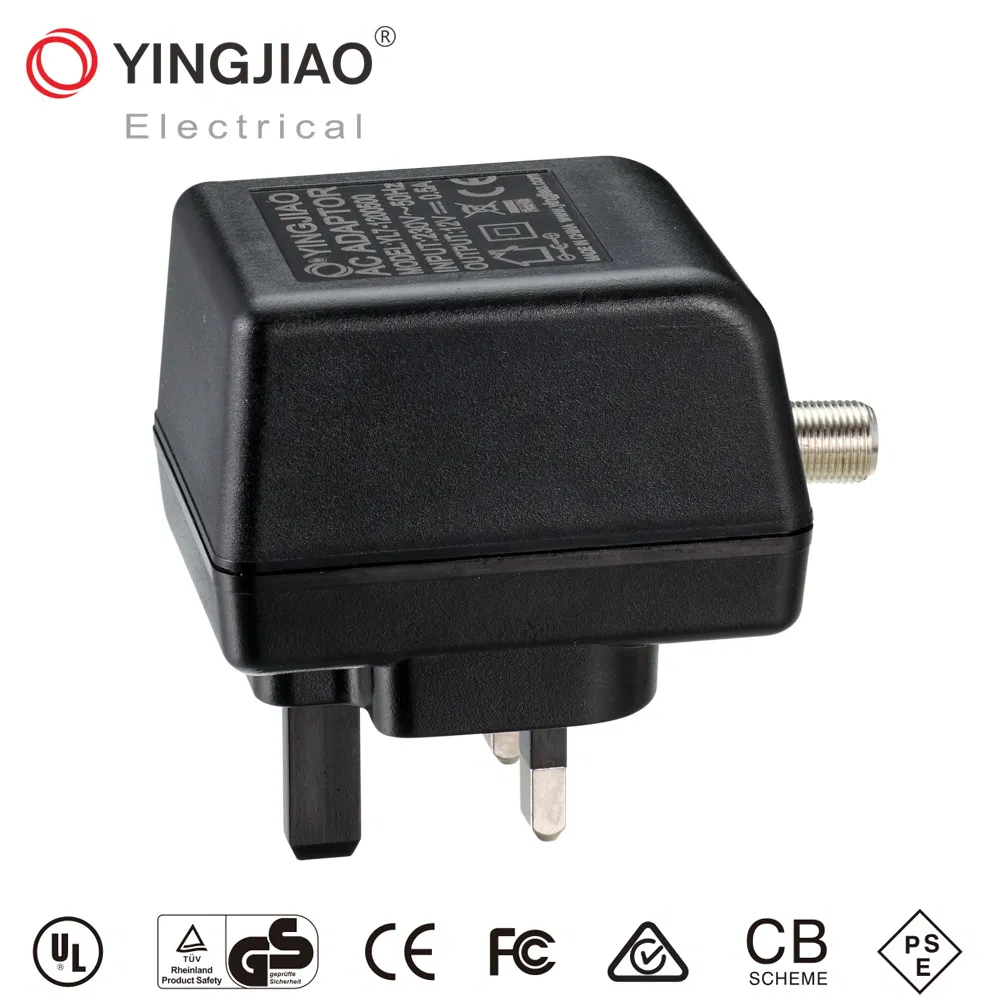

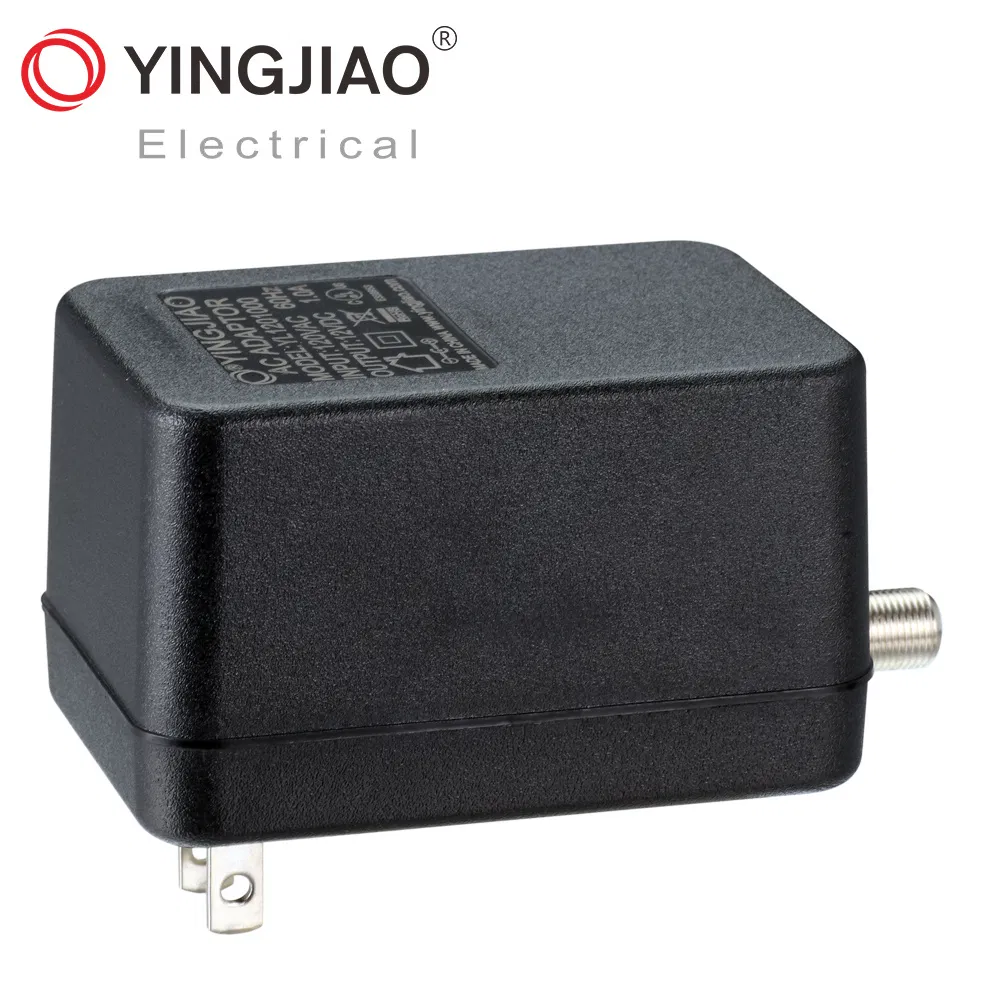

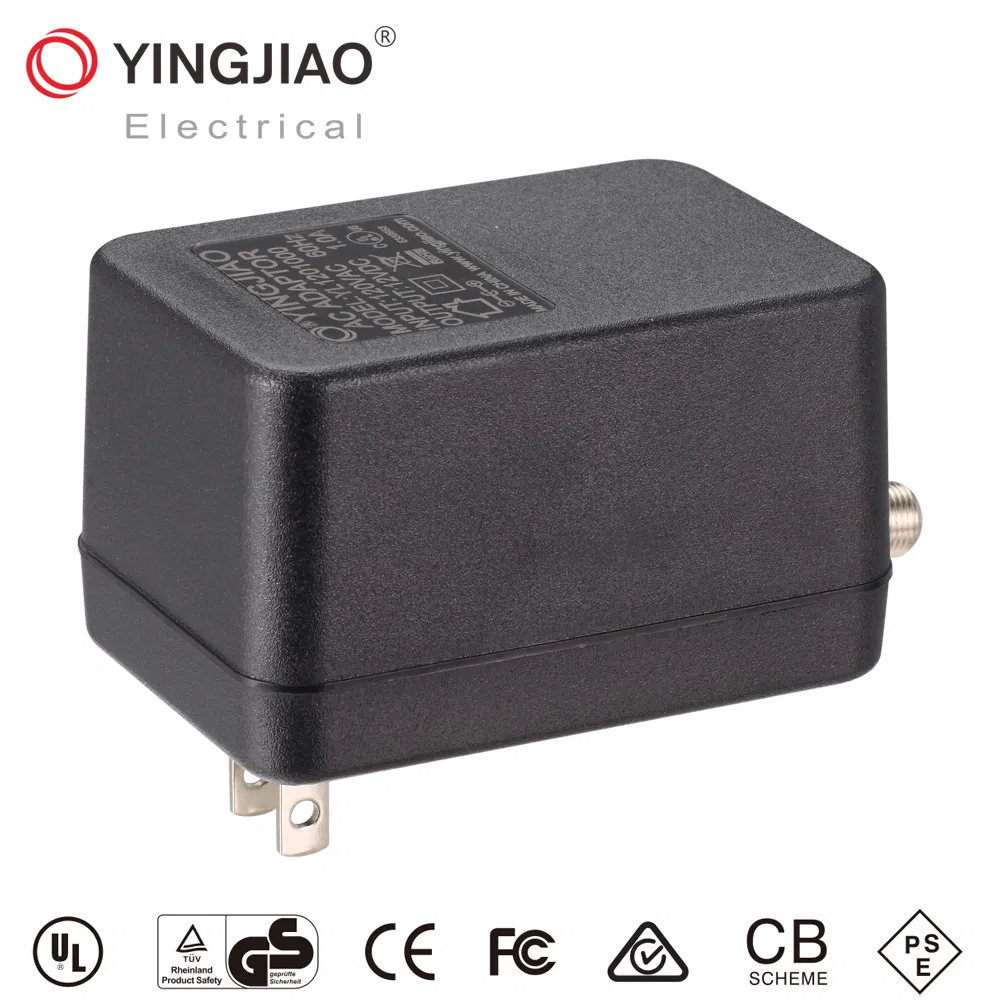

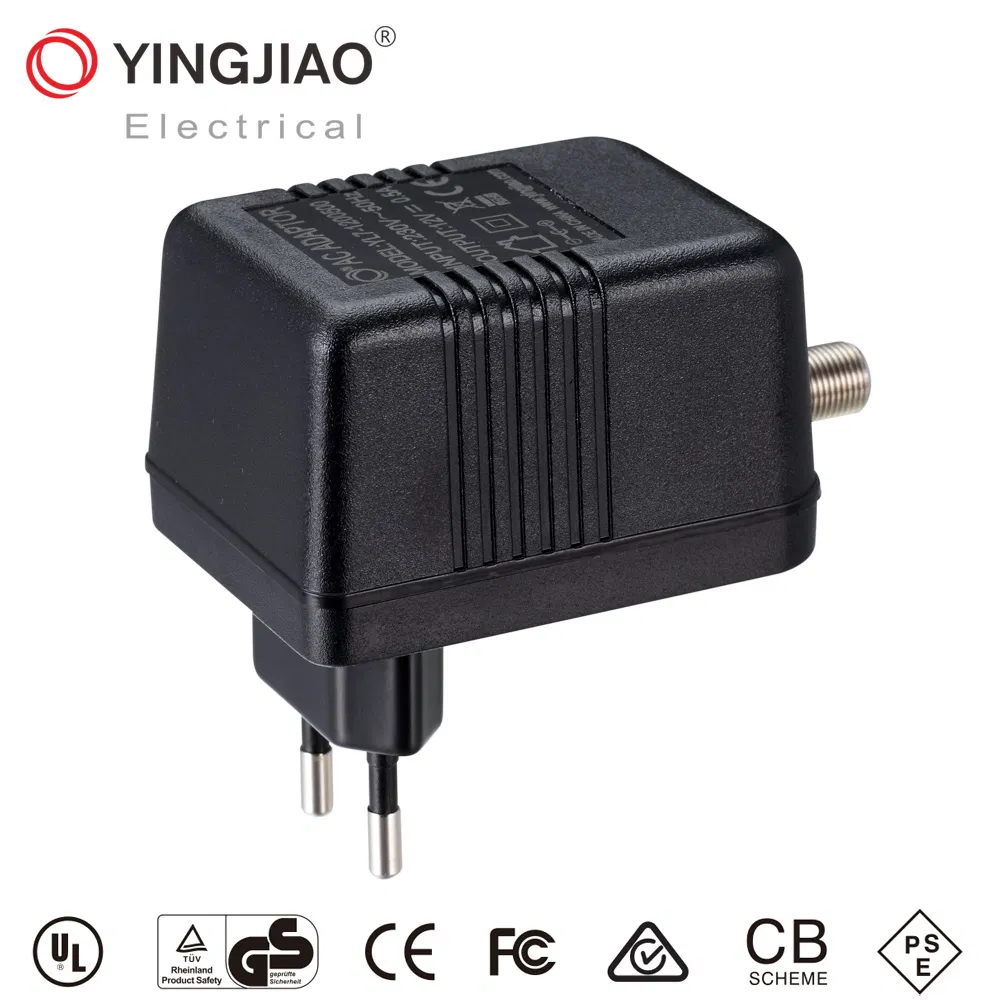

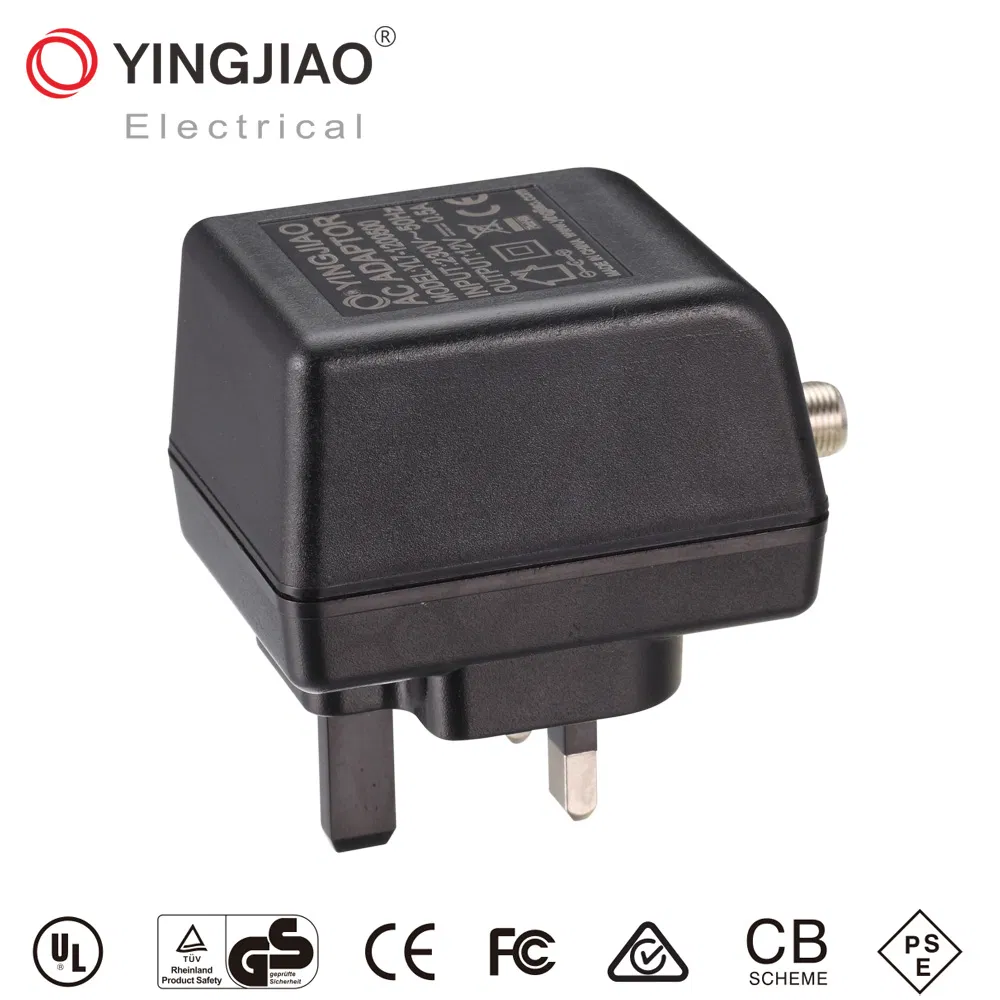

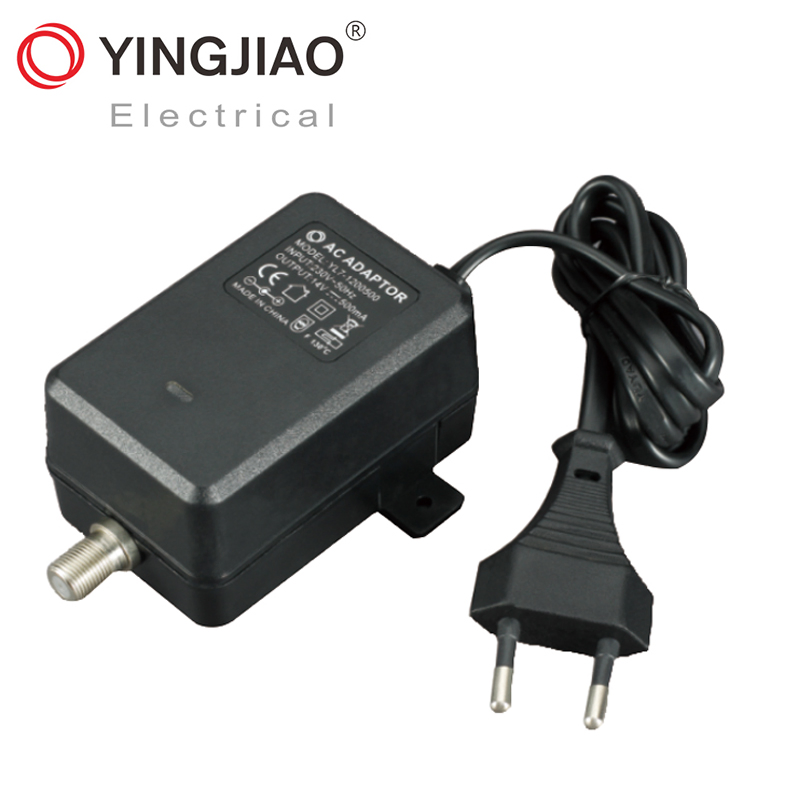

65.551.542mm Hi-Q 7W AC DC CATV Adapter

Model: YL7 series
Rated Power: 7W
Input: 100-120V or 220-240V AC 50/60Hz
Dimension: 65.5 * 51.5 * 42mm

Packaging & Delivery

Packaging Details: PE bag, White Box + Carton or as customer's requirement.

Delivery Detail: 15-25 days after receipt of deposit.

Technical Data

Model	YL7E-F
Output Voltage	3-36V (AC/DC)
Output Current	0.2-1.5A
Protections	Short Circuit / Over Current / Over Voltage
Working TEMP	-20°C to 50°C
Certificates	GS, CE, EMC, SAA, FCC, CB, PSE, CCC, RoHS, REACH
MTBF	100,000 hours minimum

Model List

Model	YL7-0301500	YL7-0601000	YL7-1200500	YL7-2400250	YL7-3600200
Voltage	3V	6V	12V	24V	36V
Current	1.5A	1A	0.5A	0.25A	0.2A
Power	4.5W	6W	6W	6W	7.2W

Product Diagrams

Frequently Asked Questions

Q1: What is the warranty period for the YL7 power adapter?

The YL7 series comes with a 3-year warranty and a minimum MTBF of 100,000 hours.

Q2: What certifications does this power adapter hold?

It is fully certified with GS, CE, EMC, SAA, FCC, CB, PSE, CCC, RoHS, and REACH.

Q3: Can the output voltage be customized?

Yes, we provide customized services with an output voltage range from 3V to 36V (AC/DC).

Q4: What are the built-in safety protections?

The adapter includes Short Circuit Protection (SCP), Over Voltage Protection (OVP), and Over Current Protection (OCP).

Q5: What is the typical lead time for orders?

The quick delivery time is approximately 15-25 days after receipt of the deposit.

Q6: What environment is suitable for storage?

It can be stored in temperatures ranging from -40ºC to +70°C with 5% to 95% relative humidity.

5V/6V/15V/24V/36V 2A/1.2A/1A 6W/7W/9W/12W/15W Linear Power Adapter China Factory Wholesale

Product Description

65.5*51.5*42mm Hi-Q 7W AC DC CATV Adapter
