💡 Basic Info.
Certification
TUV, RoHS, ISO9001, CCC, CE, Ukca, UL, Rcm, PSE, Kc
📦 Product Description
Japan Plug 12V 3A Medical Grade Power Adapter | IEC 60601-1 & PSE Certified
This 12V 3A (36W) medical-grade AC/DC power adapter is designed for portable ultrasound peripheral modules. With 2×MOPP isolation and ultra-low patient leakage current (<10 µA), it ensures maximum safety during diagnostics.
🚀 Key Features & Benefits
- Medical Safety: Certified to IEC 60601-1 Ed. 3.1 & PSE certified for the Japan market.
- 2×MOPP Isolation: 4 kVAC dielectric strength suitable for BF-type applied parts.
- Low Noise: Ripple <80mVp-p prevents signal noise in ultrasound imaging.
- EMC Compliant: Meets IEC 60601-1-2:2015 and VCCI Class B.
📊 Technical Specifications
| Model |
Power |
Voltage |
Max Load |
Load Reg. |
Ripple |
| APM036JA | 36W | 9V | 4.0A | ±5% | 100mV |
| APM036JB | 30W | 12V | 2.5A | ±5% | 100mV |
| APM036JC | 36W | 12V | 3.0A | ±5% | 100mV |
| APM036JD | 36W | 15V | 2.4A | ±5% | 100mV |
| APM036JH | 36W | 48V | 0.75A | ±5% | 100mV |
🖼️ Product Showcase
🛡️ Our Advantages

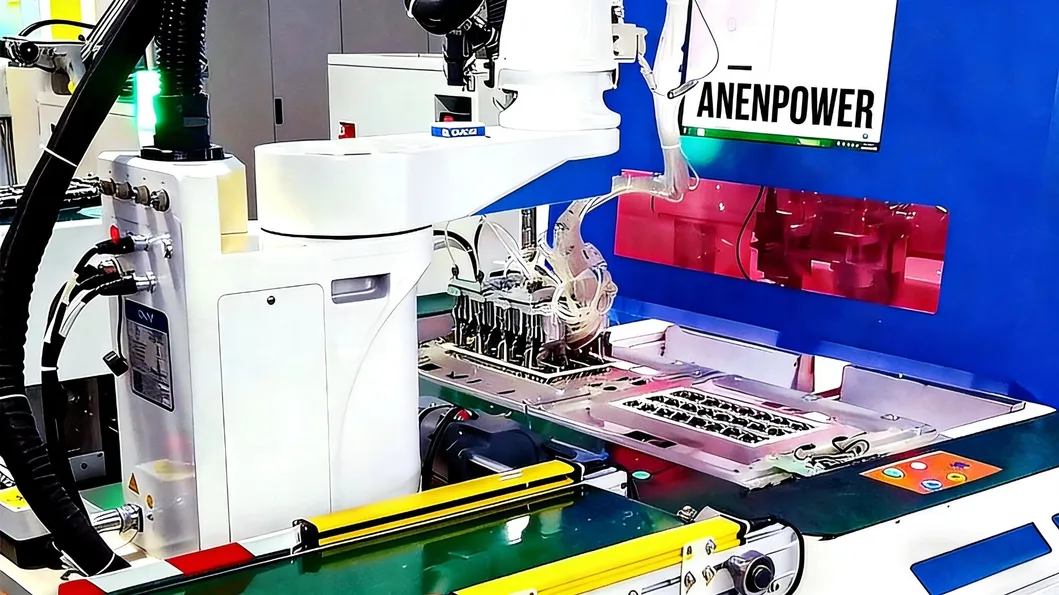

- Automated Production: 24/7 high-precision robotic assembly.

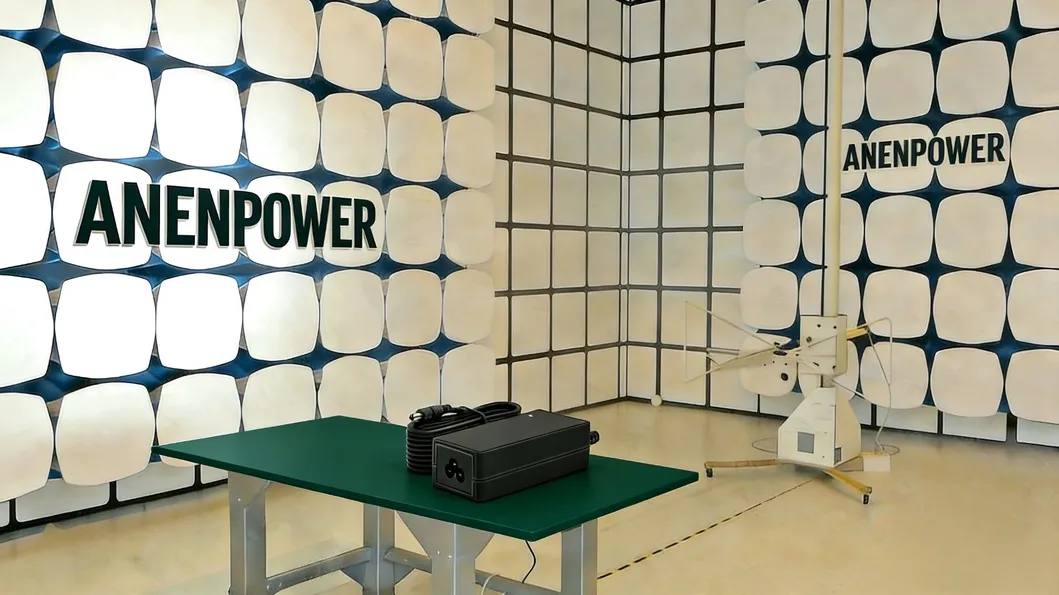

- Consistent Quality: Intelligent testing systems ensure ultra-low defect rates.
- Global Compliance: Full traceability meeting CE, UL, and PSE requirements.
- Price Competitive: 80% reduction in repetitive labor costs passed to customers.
❓ FAQ
1. Is this adapter certified for medical use in Japan?
Yes, it is fully PSE certified under DENAN regulations and meets JIS T 0601-1 standards for Japanese medical equipment.
2. What is the warranty period for the APM series?
We provide a 24-month warranty covering materials and workmanship under normal use conditions.
3. What is 2×MOPP isolation?
2×MOPP (Means of Patient Protection) provides reinforced insulation between mains and output, essential for patient-contact medical devices.
4. Can I get a custom DC connector?
Yes, we offer custom options including locking barrels and specific OEM connectors to meet your hardware requirements.
5. Does this power supply support universal voltage?
Yes, it supports a universal input range of 100-240V AC, 50/60Hz, though it is optimized for the Japan 100V grid.
6. What is the return policy?
Returns or exchanges are accepted within 30 days if the product is unused and in its original packaging.
