High Frequency UPS 6/10/15/20kVA Double Conversion Long Short Backup Internal External Battery Sine Wave Uninterruptible Power Supply Online UPS with LCD

1 / 5

High Frequency UPS 6/10/15/20kVA Double Conversion Long Short Backup Internal External Battery Sine Wave Uninterruptible Power Supply Online UPS with LCD

Customization:	Available
Phase:	Single Phase
Type:	On-line

Send Inquiry

Product Description

High Frequency Online UPS

XG6-20K(S) 6-20KVA, 4.8-16KW

📊 Basic Info.

Model NO.

XG6-20kVA

Protection

Overvoltage

Application

Industry

Classification

Lighting/Power

Standby Time

Standard Machine

Output Capacity

Large Type

Size

710*440*860

Operating PF

0.8 or 0.9PF

Specification

ISO / CE / UL

HS Code

8504402000

🚀 KEY FEATURES

LCD High frequency sine wave online UPS 6K/ 10K/ 15K/ 20KVA
DSP digital control double conversion technology, Zero transfer time
Single phase, output Power Factor 0.8/0.9, adjustable VAC and HZ by panel
Wide input voltage and frequency range, support Generator
Advanced Input PFC technology, 0.99
Self-testing, and battery management function
Automatic battery charging while UPS off mode
Lightning, surge, Short circuit and overload protection
RS232 or USB communication with monitoring software
SNMP, EPO, MBS are optional

⚙️ TECHNICAL SPECIFICATIONS

Item	Model	XG6K(S)	XG10K(S)	XG15K(S)	XG20K(S)
Capacity	VA / Watts	6KVA/4.8KW	10KVA/8KW	15KVA/12KW	20KVA/16KW
Input	Voltage	220VAC (120±5~274±5)VAC
Output	Wave Form	Pure Sine Wave
Transfer Time	Line to Bat	0 ms
Battery	Voltage	192VDC or 240VDC

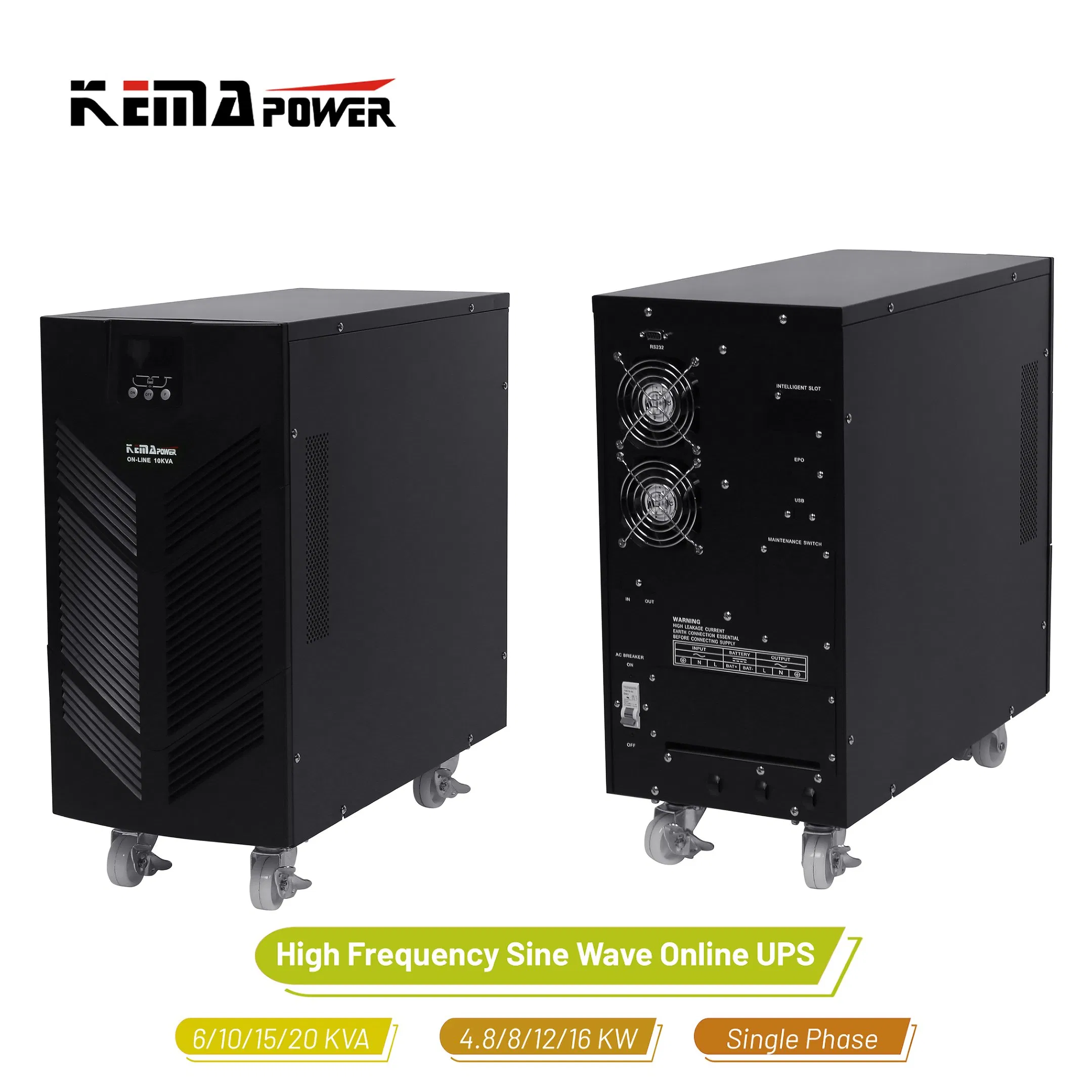

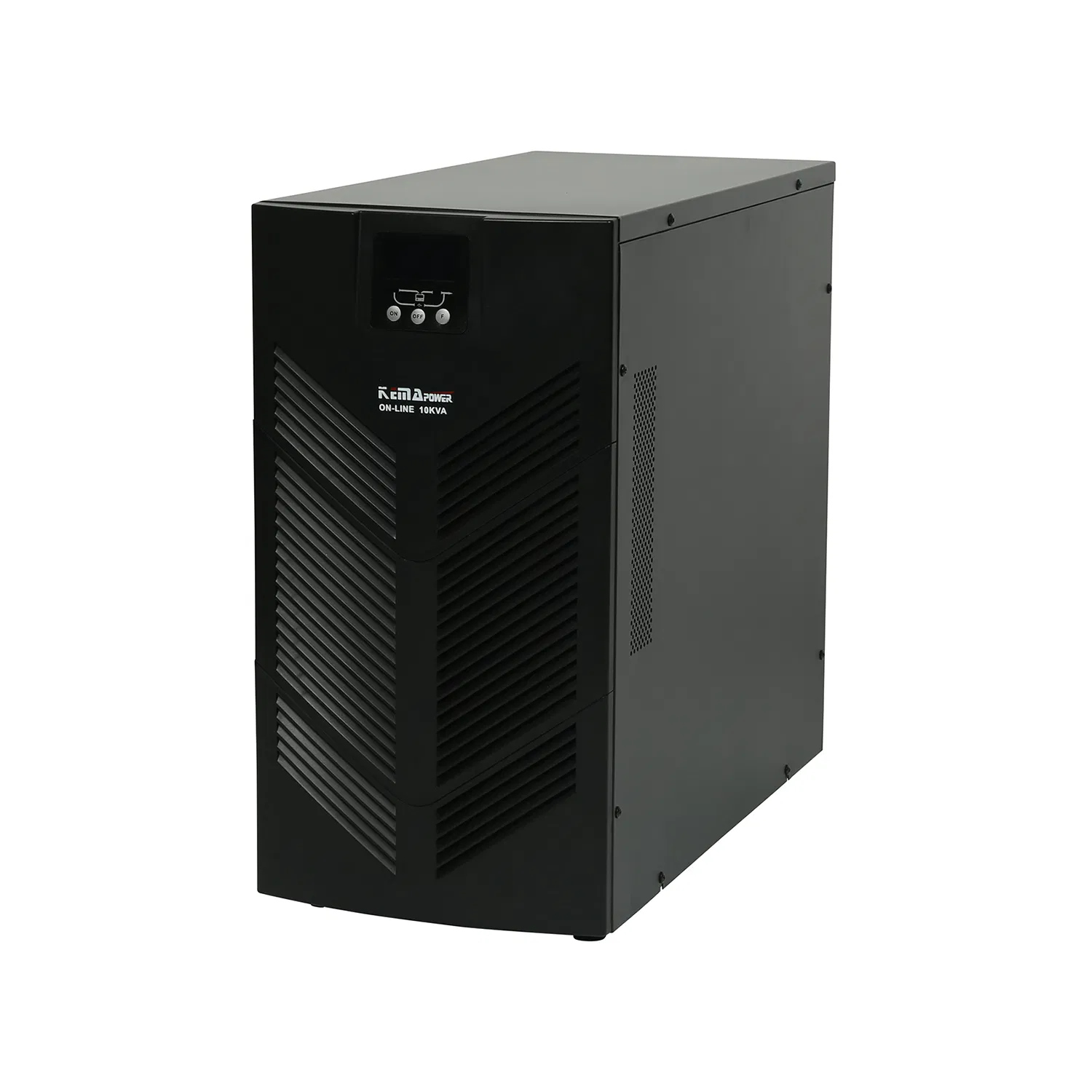

🖼️ PRODUCT DISPLAY

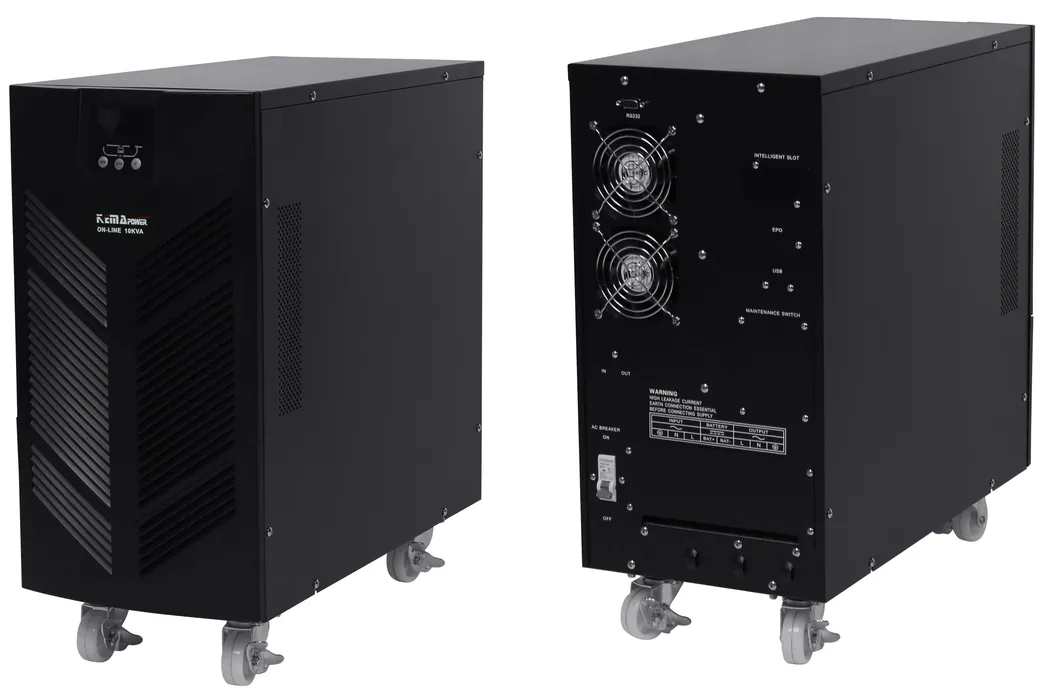

10KS/15KS/20KS - 260*533*501 mm

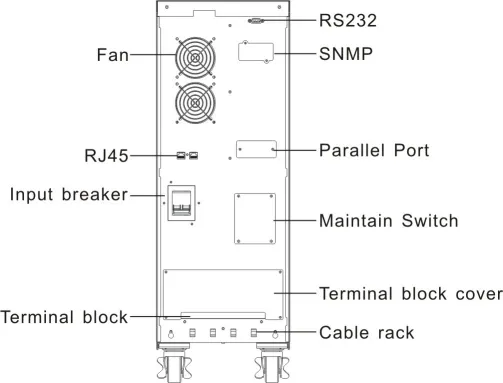

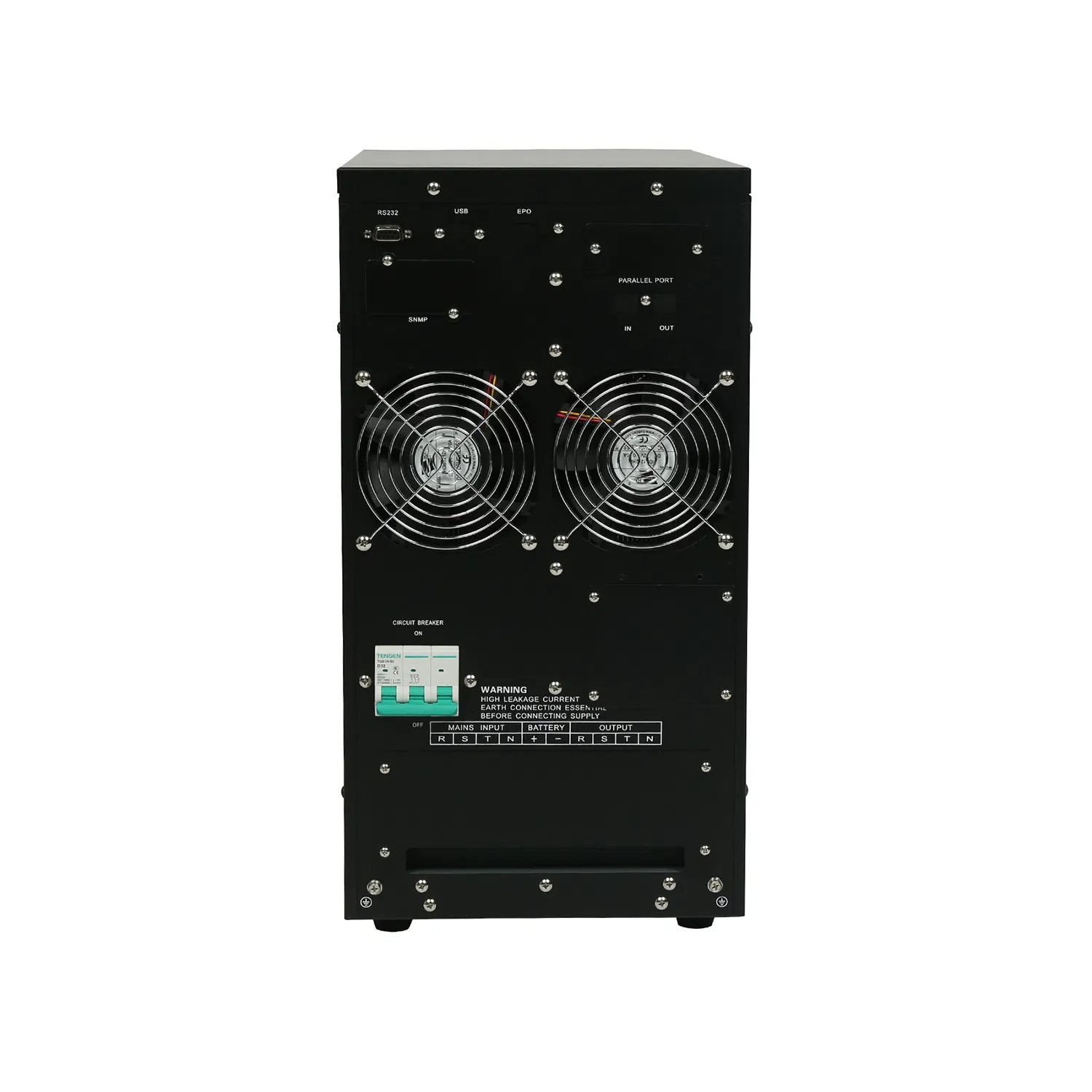

Back side of 10K

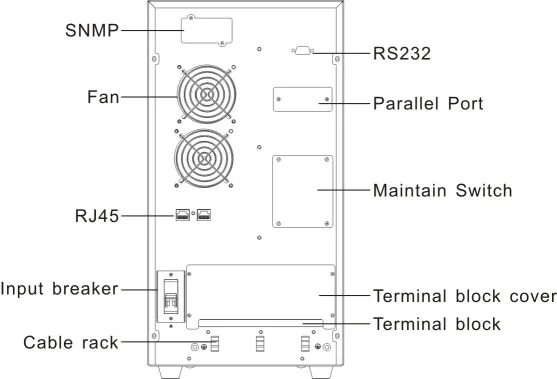

Back side of 10KS

❓ Frequently Asked Questions

Q1: What is the transfer time between line mode and battery mode? The XG series features double conversion technology ensuring 0ms transfer time, providing seamless protection for sensitive equipment.

Q2: Can this UPS be used with a generator? Yes, it supports generator input. It is recommended that the generator rating is at least 2 times the UPS rating.

Q3: What is the difference between XG*K and XG*KS models? XG*K represents the Standard Type with an internal battery, while XG*KS is the Long backup Type designed for use with an external battery.

Q4: Does it offer protection against power surges? Absolutely. It includes built-in protection for lightning, surge, short circuit, and overload, plus an RJ-45 I/O port for network/fax protection.

Q5: How can I monitor the UPS status? The unit comes with RS232 or USB interfaces and is compatible with monitoring software. SNMP and EPO options are also available for remote management.
