Basic Information
Connection
Wall Mount Type
Product Name
EU Plug Linear Power Supply Wall Charger
Production Capacity
1500000 Piece/Pieces Per Month
Product Description

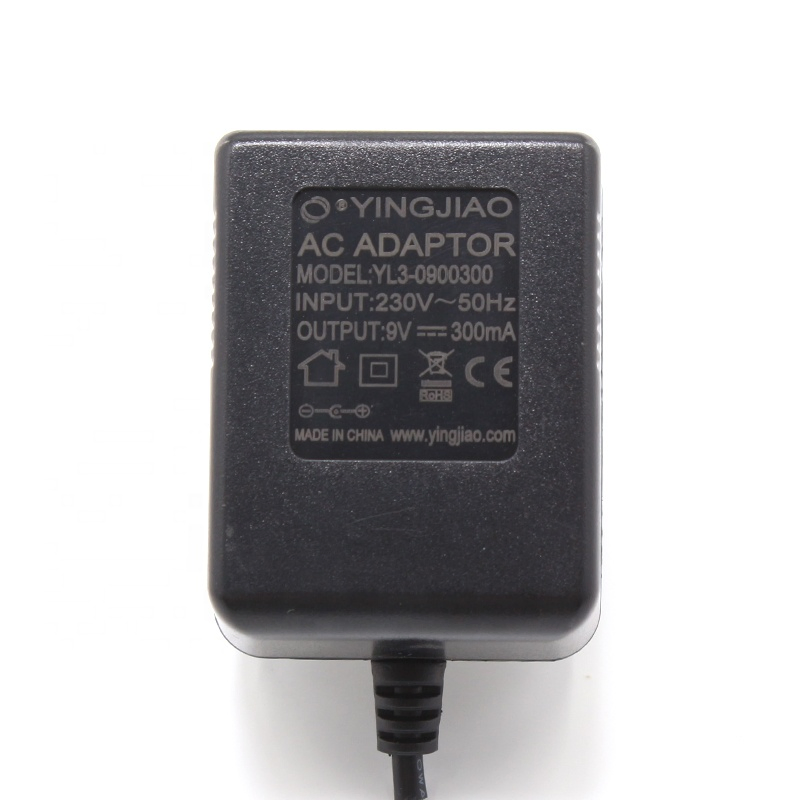

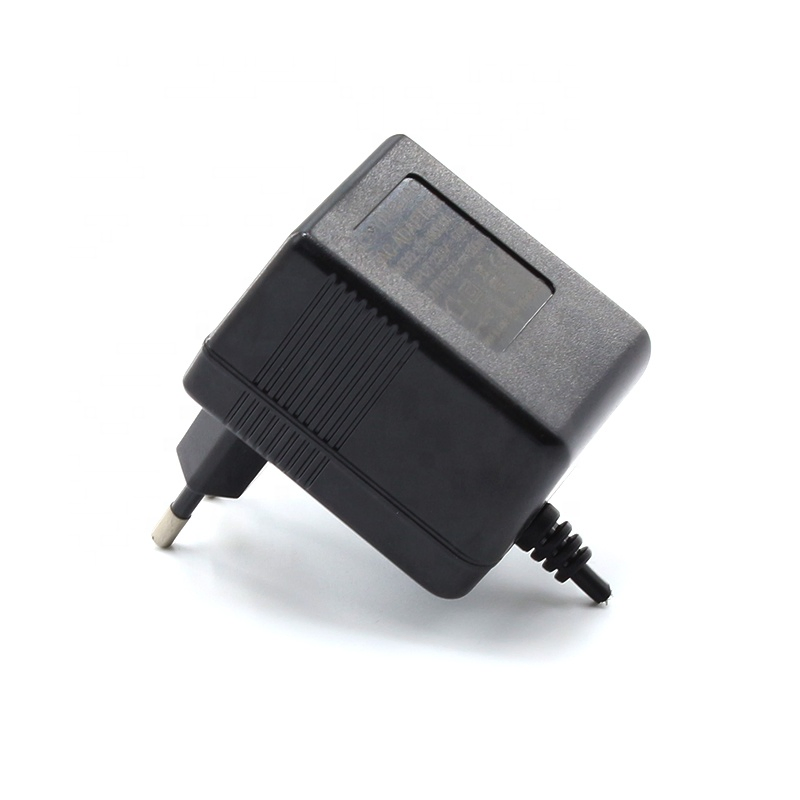

EU Plug Linear Power Supply Wall Plug Charger 9V 300mA AC To AC Power Adapter
| Model: | YL3E | Rated Power: | 3W |
| Input: | 220-240AC 50Hz | Output Voltage: | 5-36V(AC/DC) |
| Output Current: | 80-400mA | Input current: | 0.4A max. |
| Protections: | Short Circuit / Over Current / Over Voltage |
| Working TEMP.: | -20°C-50°C | Working Humidity: | 5%-90% RH |
| Certificates: | GS, CE, EMC, SAA, FCC, CB, PSE, CCC, RoHS, REACH |
Technical Specifications
| Model |
Voltage |
Rated Current |
Rated Power |
Ripple & Noise |
| YL3-0500400 | 5V | 400mA | 2W | 50mVp-p |
| YL3-0900250 | 9V | 250mA | 2.25W | 90mVp-p |
| YL3-1500200 | 15V | 200mA | 3W | 150mVp-p |
| YL3-2400120 | 24V | 120mA | 2.88W | 240mVp-p |
| YL3-3600080 | 36V | 80mA | 2.88W | 360mVp-p |

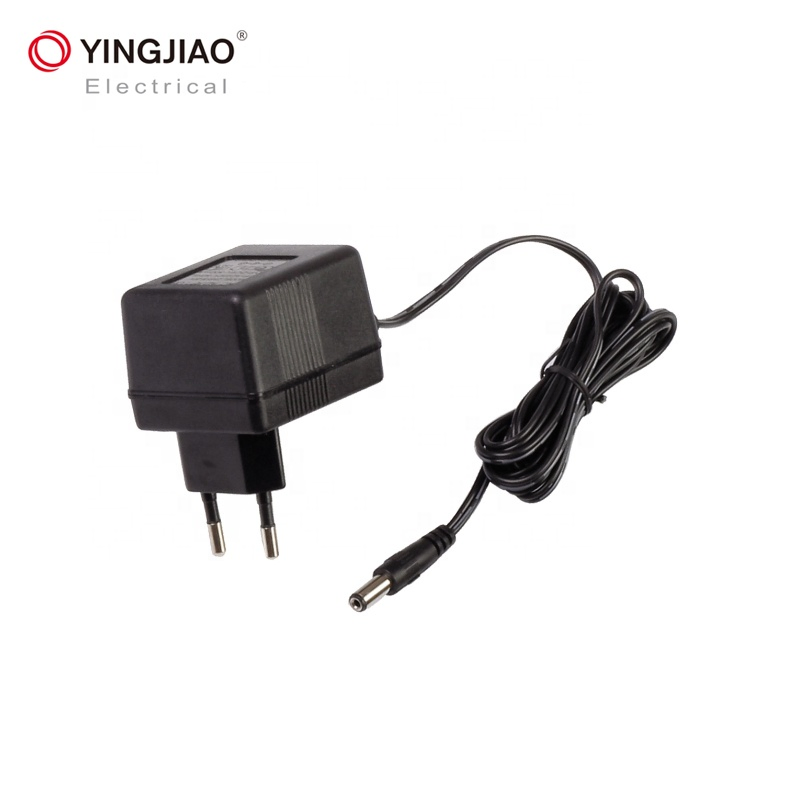

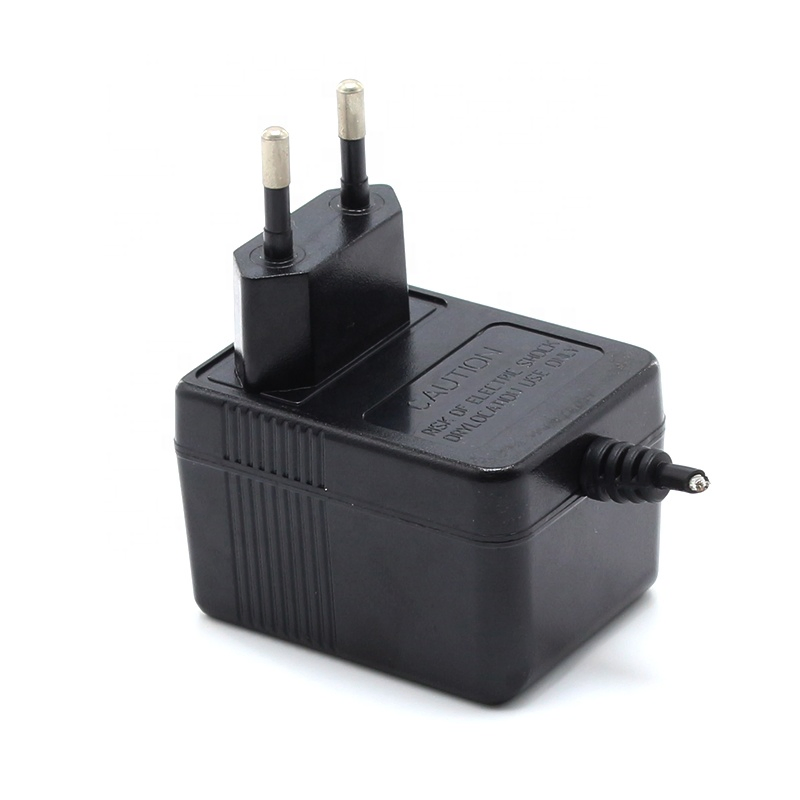

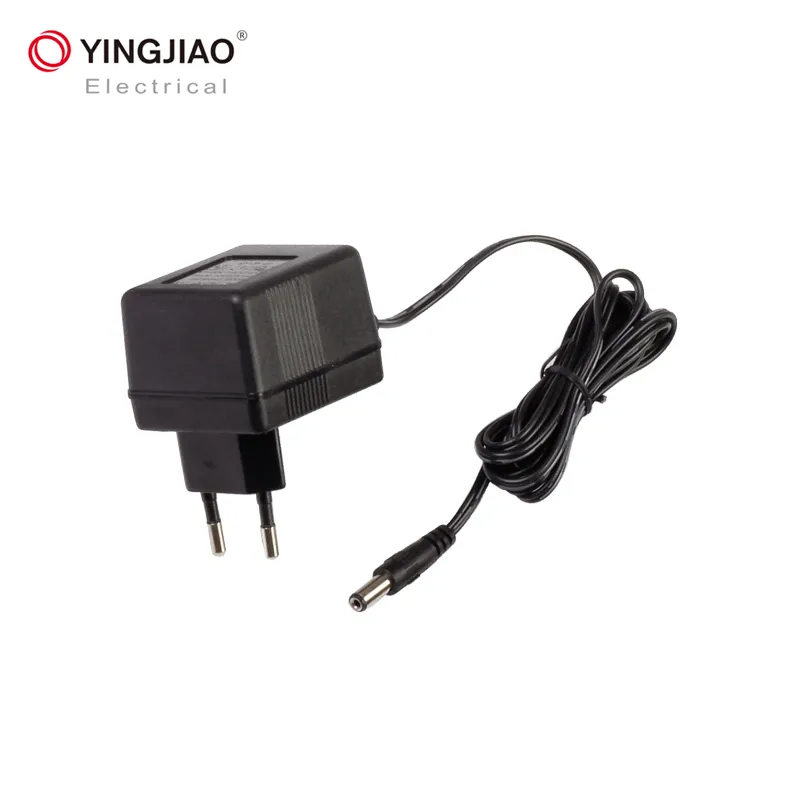

Product Visuals

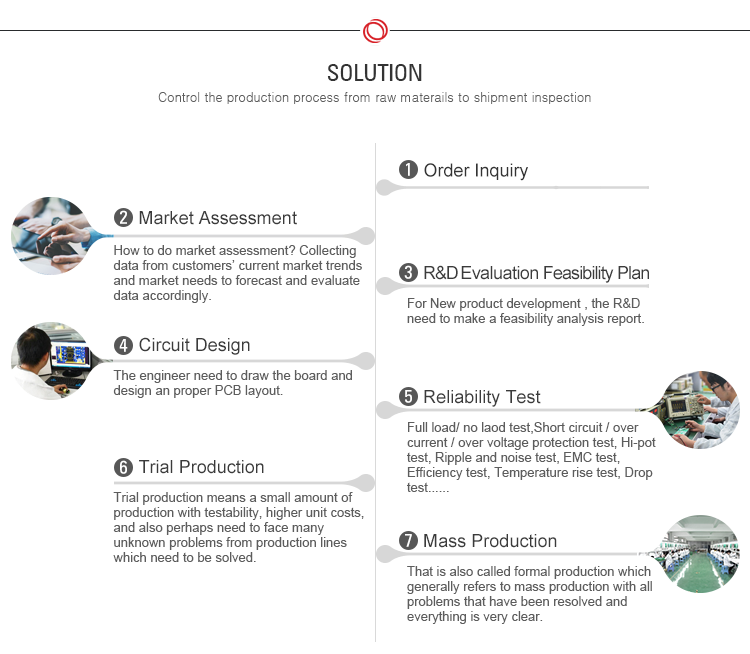

Certifications & Solutions
Transport Packaging
Frequently Asked Questions (FAQ)
What is the input voltage range for this linear power supply?
The input voltage is rated at 220-240AC, 50Hz, designed specifically for EU standard wall outlets.
What safety protections are built into the YL3E model?
The unit includes comprehensive protection against Short Circuits (SCP), Over Current (OCP), and Over Voltage (OVP).
Does this power adapter have international certifications?
Yes, it is fully certified with GS, CE, EMC, SAA, FCC, CB, PSE, CCC, RoHS, and REACH.
What is the expected lifespan of this product?
The product has an MTBF of minimum 100,000 hours and an alternative life span of 3 to 5 years.
What are the temperature limits for operation?
It can operate effectively in temperatures ranging from -20°C up to 50°C.
Can you provide OEM or ODM services for this charger?
Yes, we support both OEM and ODM services to meet specific branding or technical requirements.
