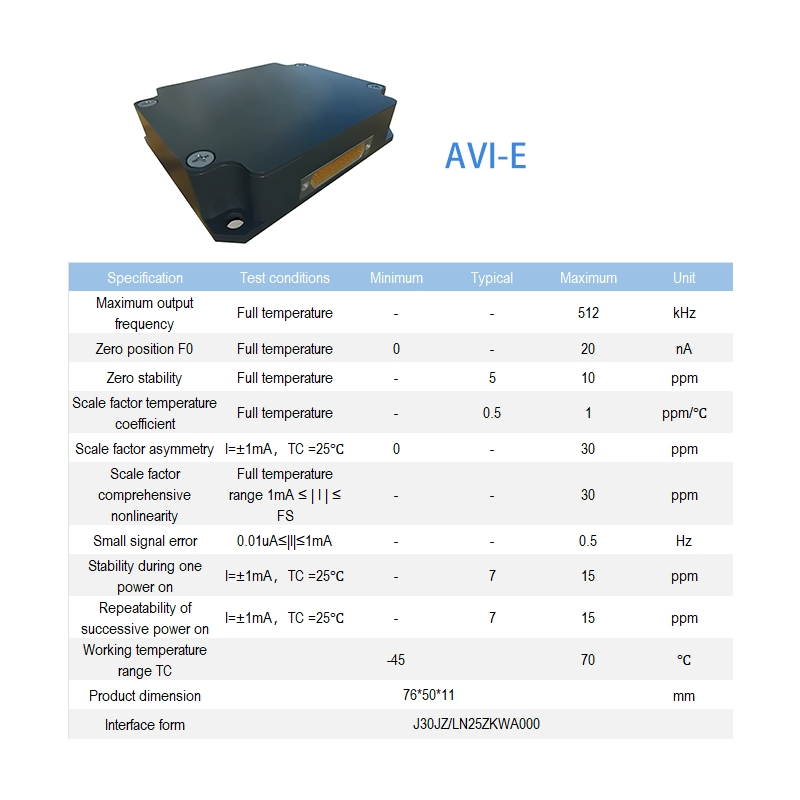

| Specification | Test conditions | Minimum | Typical | Maximum | Unit |
| Maximum output frequency | Full temperature | - | - | 512 | kHz |
| Zero position F0 | Full temperature | 0 | - | 20 | nA |
| Zero stability | Full temperature | - | 5 | 10 | ppm |
| Scale factor temp coefficient | Full temperature | - | 0.5 | 1 | ppm/℃ |
| Scale factor asymmetry | I=±1mA, TC=25℃ | 0 | - | 30 | ppm |
| Small signal error | 0.01uA≤|I|≤1mA | - | - | 0.5 | Hz |

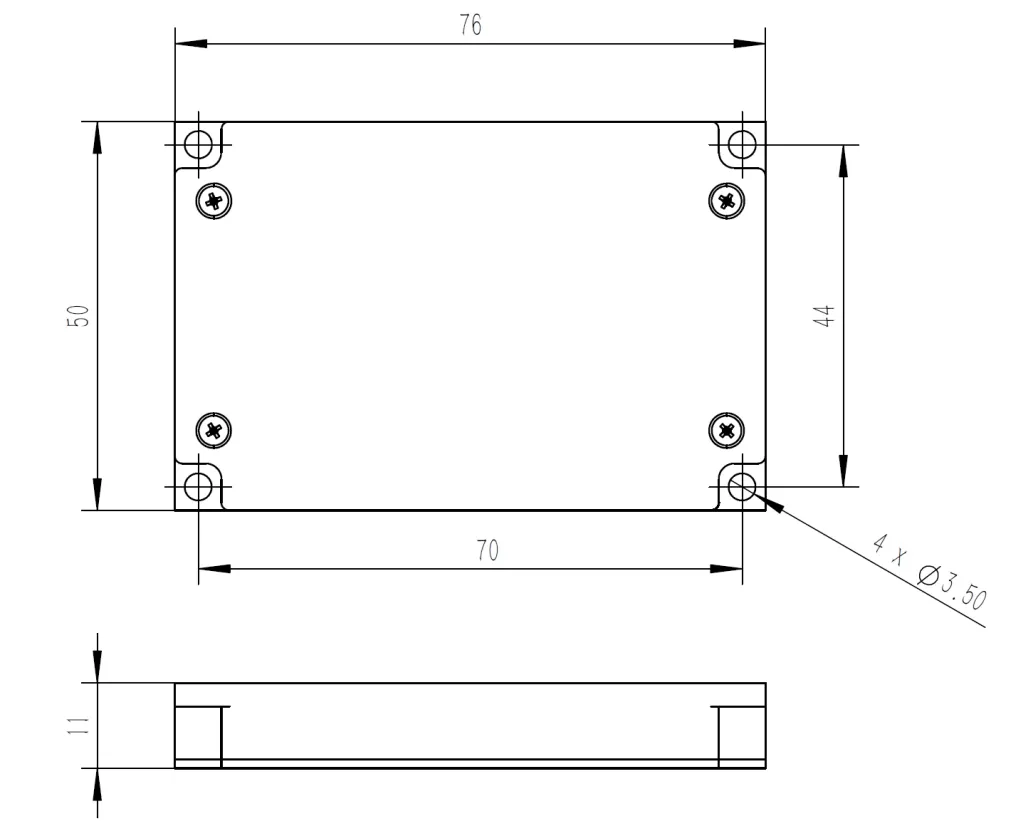

| Product dimension | 76*50*11 | mm | |||

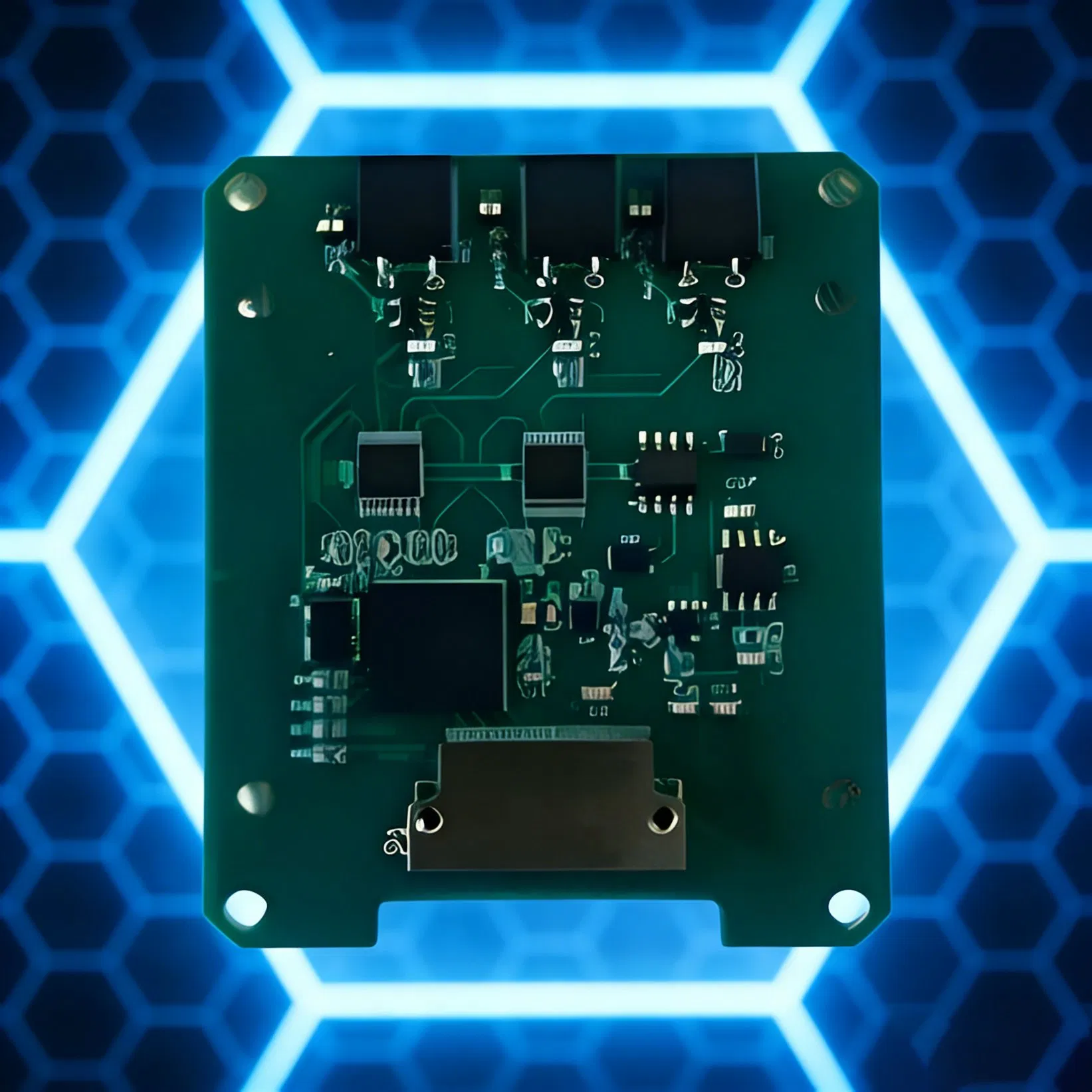

I/F conversion module: AVI-E
The AVI-E series I/F conversion module is a high-precision current/frequency converter that uses charge integration to continuously convert the current signals of three accelerometers simultaneously. The components used in this series of products are all 100% domestically produced, with a range of ± 20mA and adjustable scaling factor. It has the characteristics of small zero position, low power consumption, low temperature, and autonomous controllability.

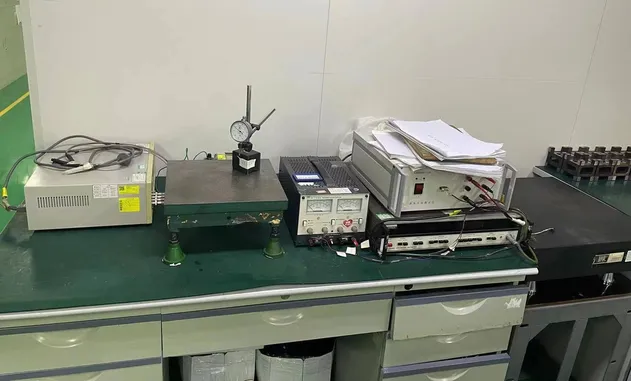

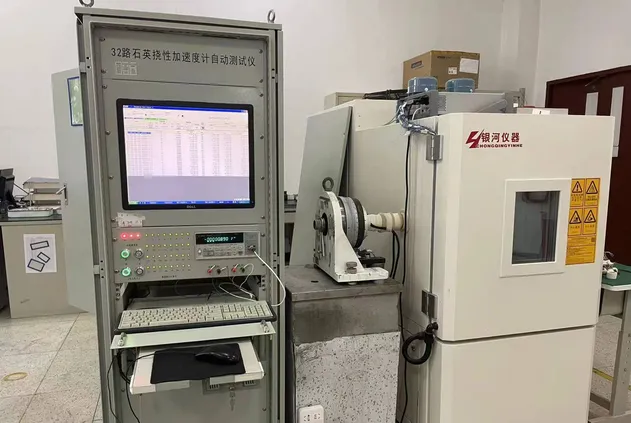

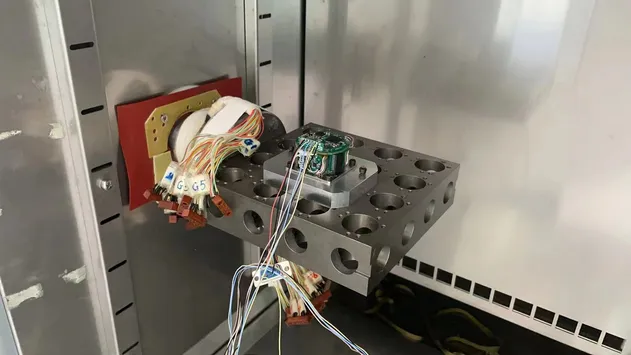

Our inertial sensors are known for their high precision, long life and reliability, and are widely used in a variety of industries such as aerospace, automobiles, robotics, and consumer electronics. Strict production and factory inspection processes ensure that each sensor can meet the high requirements of the industry. We provide customized solutions to meet customer-specific needs and help technological innovation in various industries.
