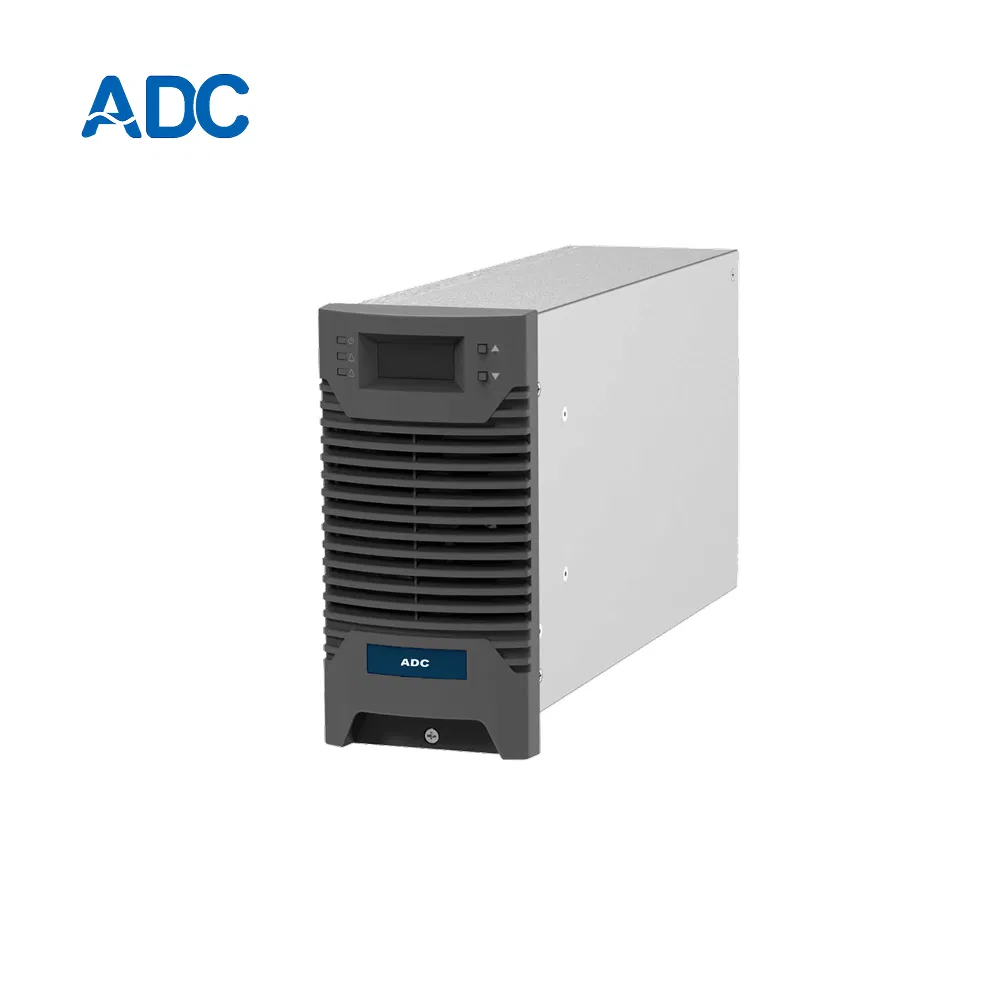

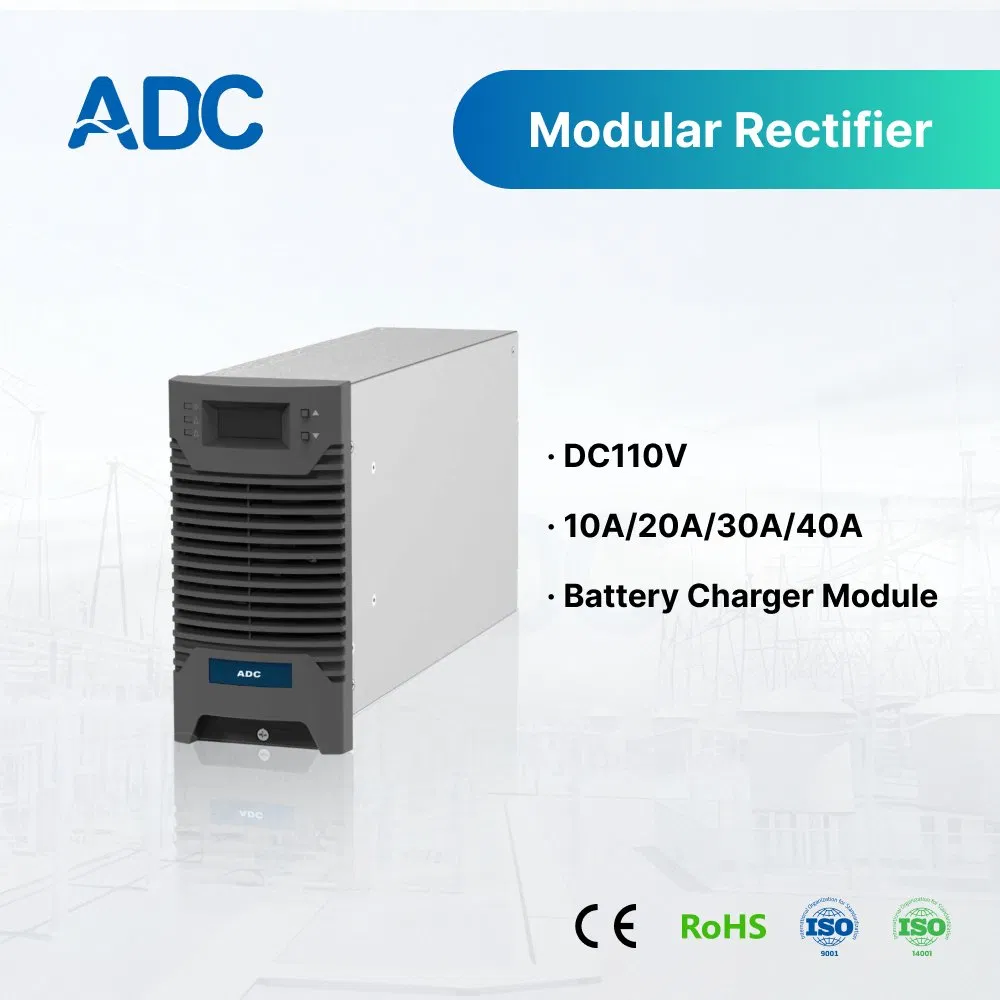

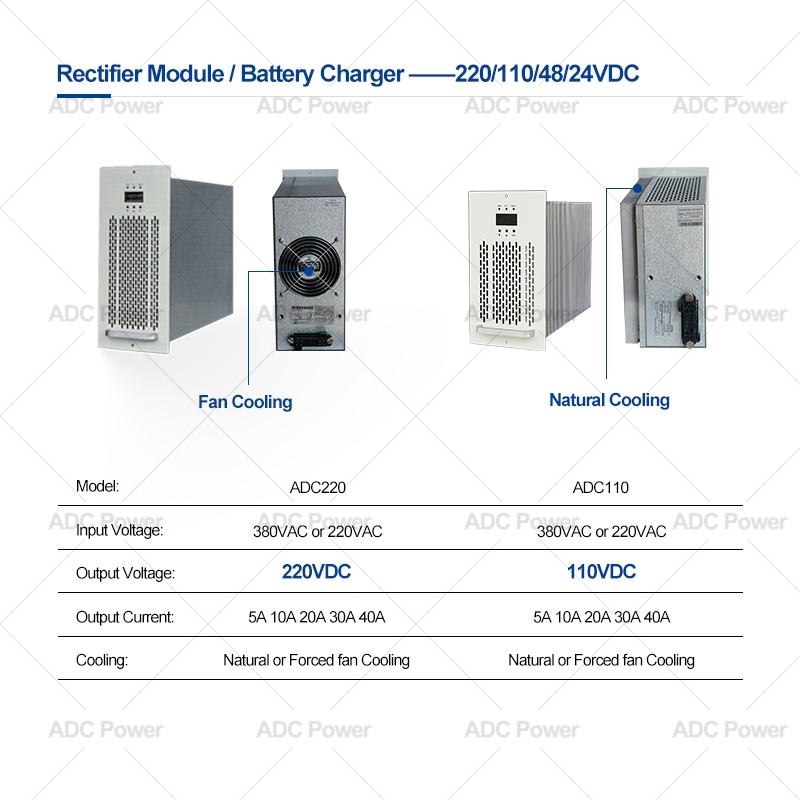

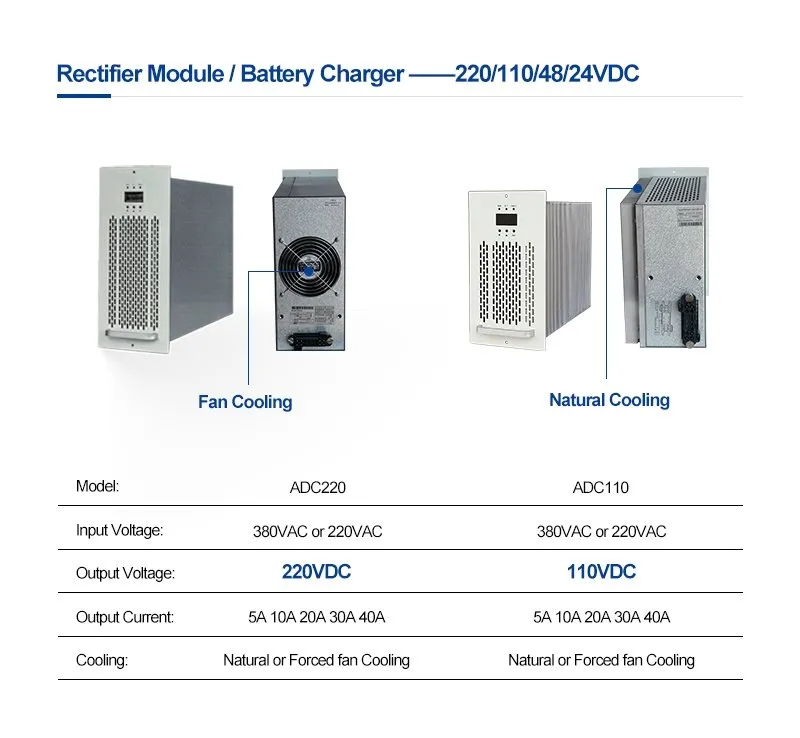

Our Intelligent DC Power Supply System is designed to deliver stable, efficient, and reliable DC power for critical industrial and power applications. The system integrates multiple advanced components including a rectifier battery charger (220/110/48/24VDC), DC system monitor, DC system controller, and a Battery Management System (BMS) for internal resistance monitoring.
With intelligent control and real-time data acquisition, it provides comprehensive supervision of battery performance, insulation status, and overall system operation. The modular structure ensures easy installation, flexible configuration, and convenient maintenance.
| AC Input Specifications | |
| Input Voltage | 323 to 456VAC 50/60Hz±5% |
| Power Factor | ≥0.94@380VAC |
| DC Output Specifications | |

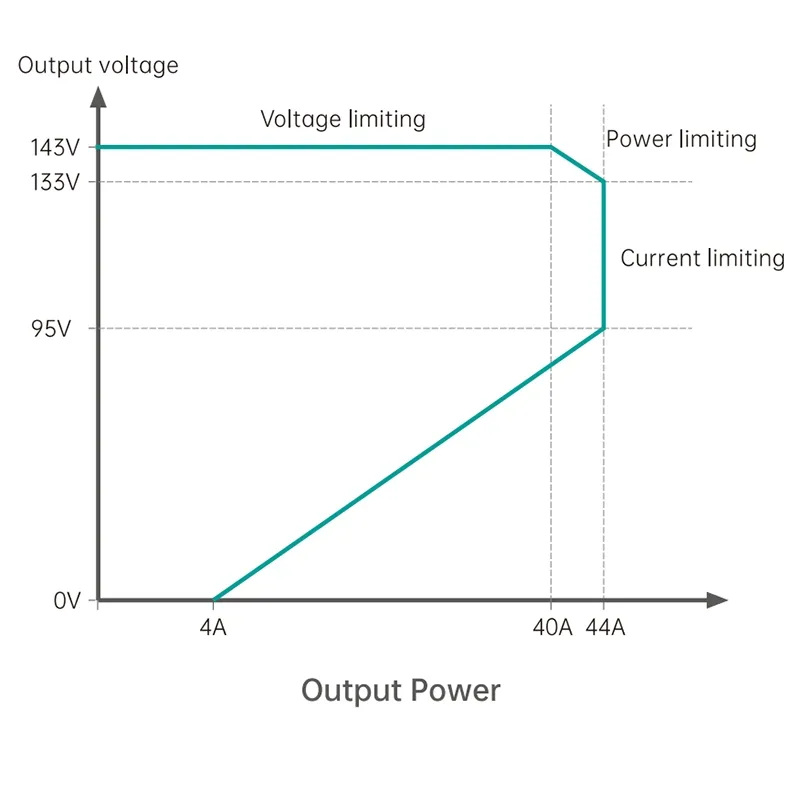

| Output Voltage | 115VDC, 99 to 143V adjustable |
| Output Power | 5720W (Three-phase) / 2860W (Default-phase) |
| Voltage Regulation Accuracy | ±0.5% |
| Efficiency | ≥91% |
| Environment & Mechanical | |
| Operating Temp | -10 to +45℃ (100% output) |
| Dimensions (WxDxH) | 88mm x 377mm x 237mm |
Specializing in power technology for over 20 years, focusing on AC to DC, DC to AC, battery monitoring, and solar power developments.
