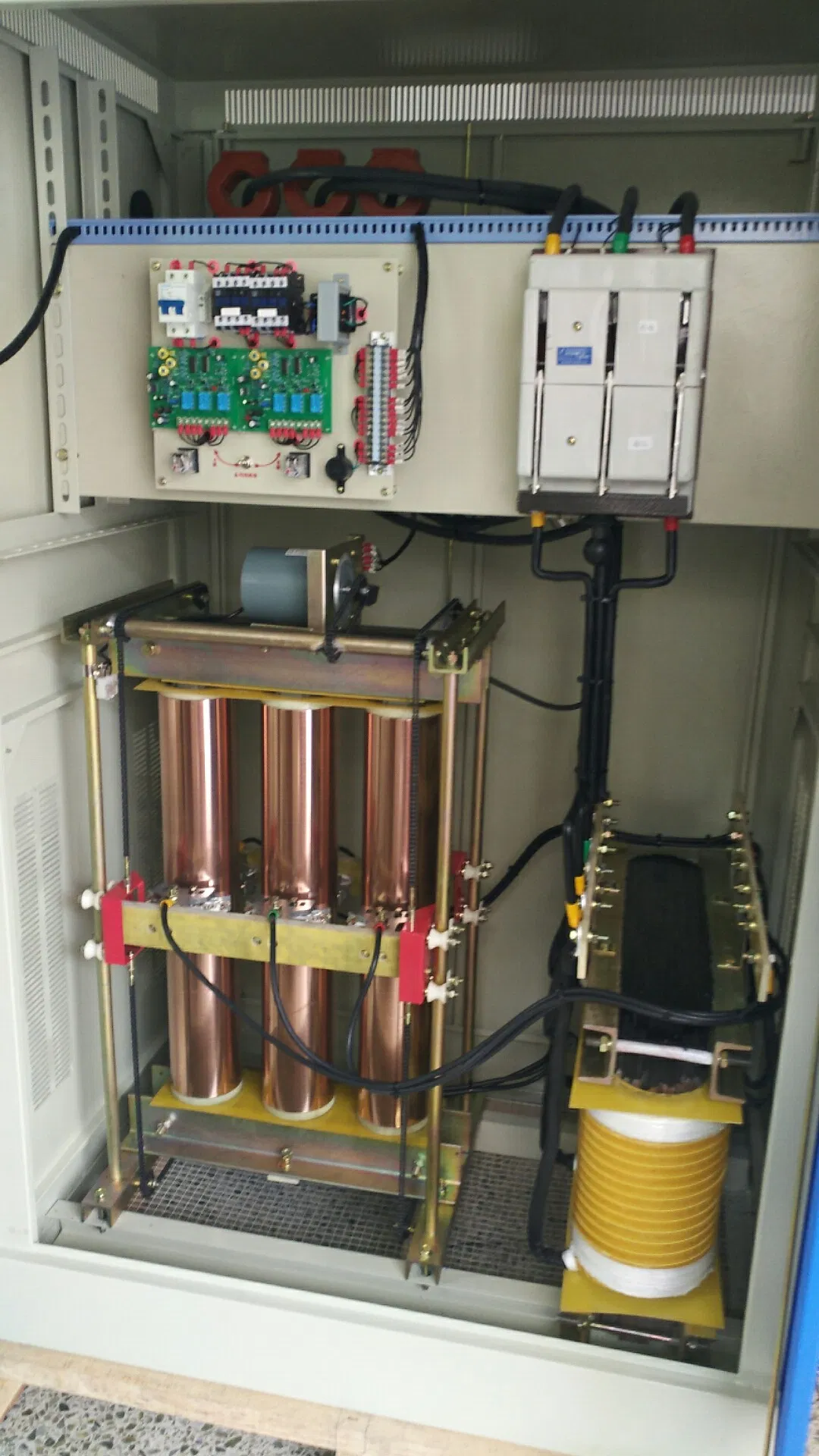

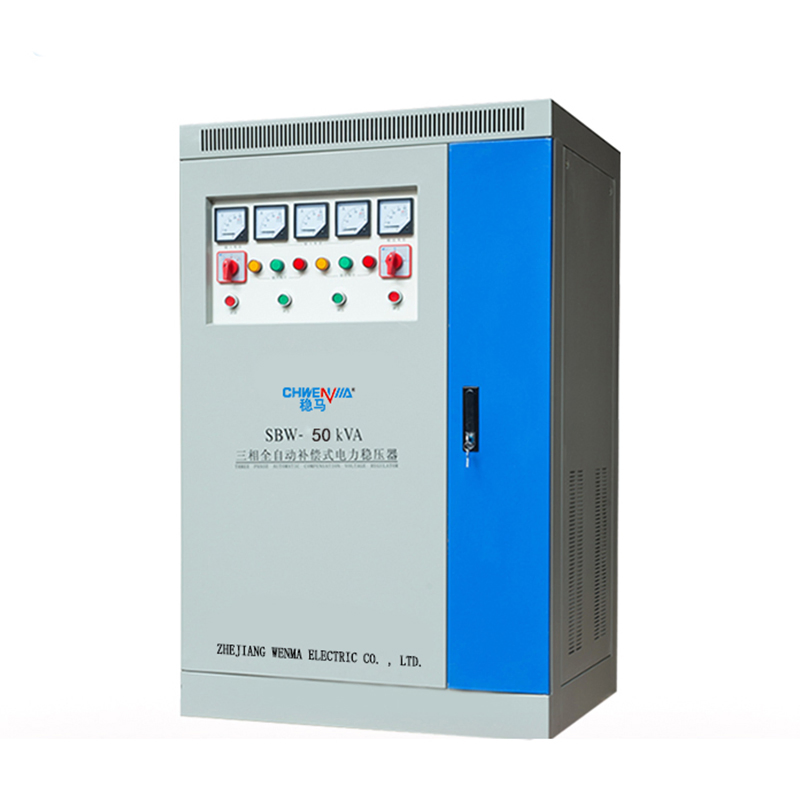

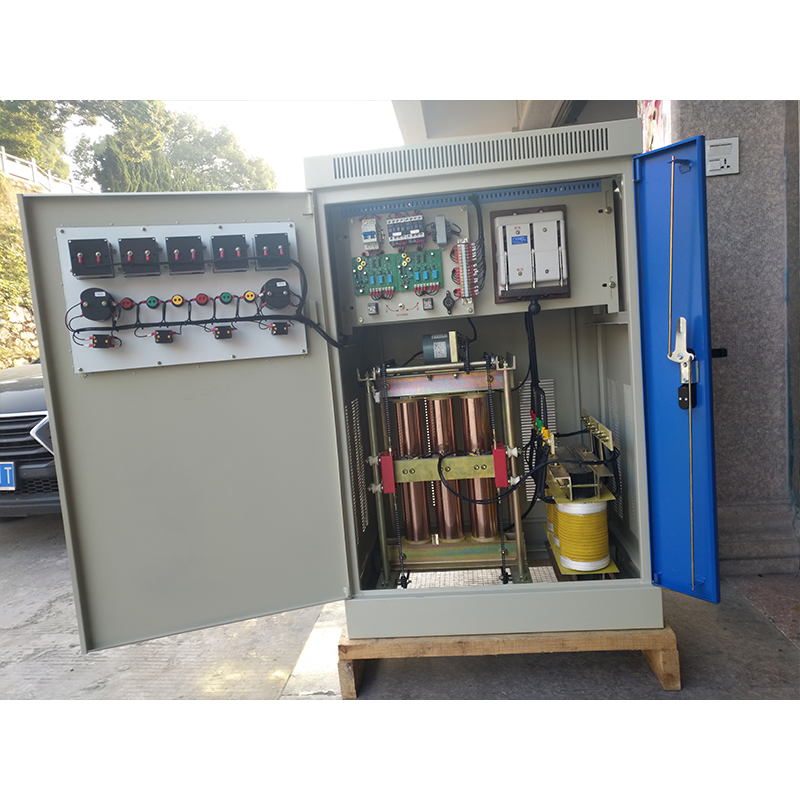

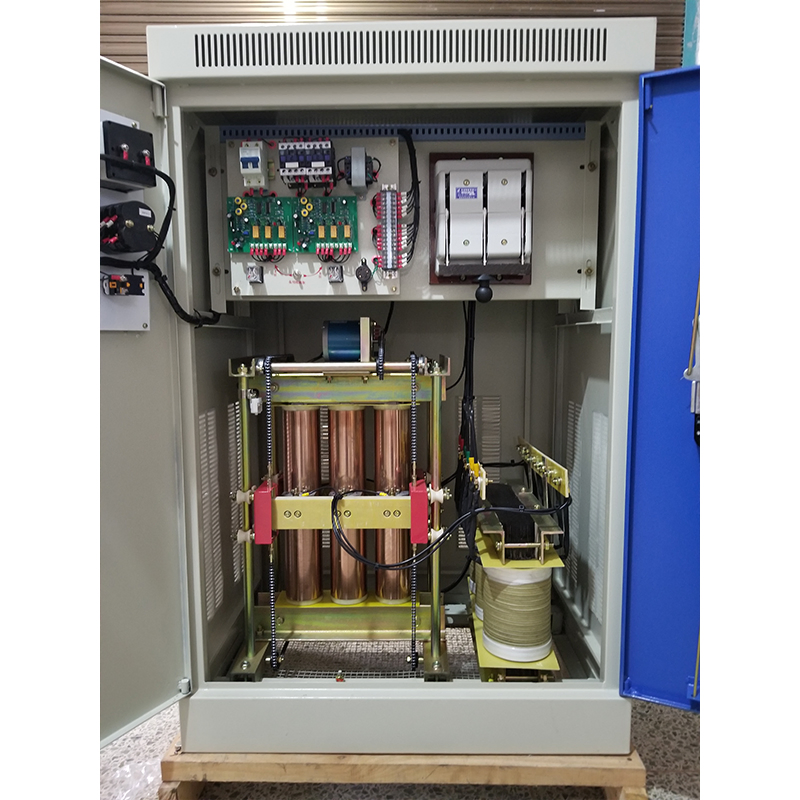

The SBW series three-phase full automatic compensated power voltage stabilizer is designed for environments where the power network fluctuates or load current varies. It maintains output voltage in a steady state automatically, offering high capacity and efficiency without waveform distortion.
This system provides robust protection against over-voltage, over-current, phase failure, and phase sequence errors. It supports seamless switching between manual and automatic control. Ideally suited for:

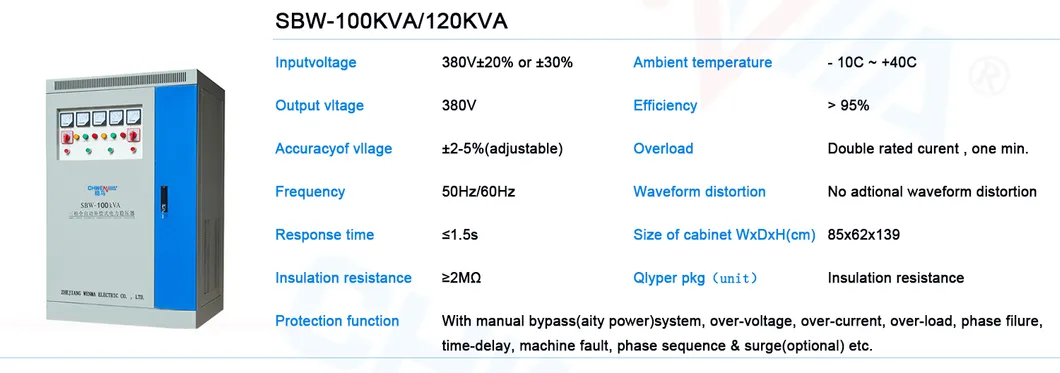

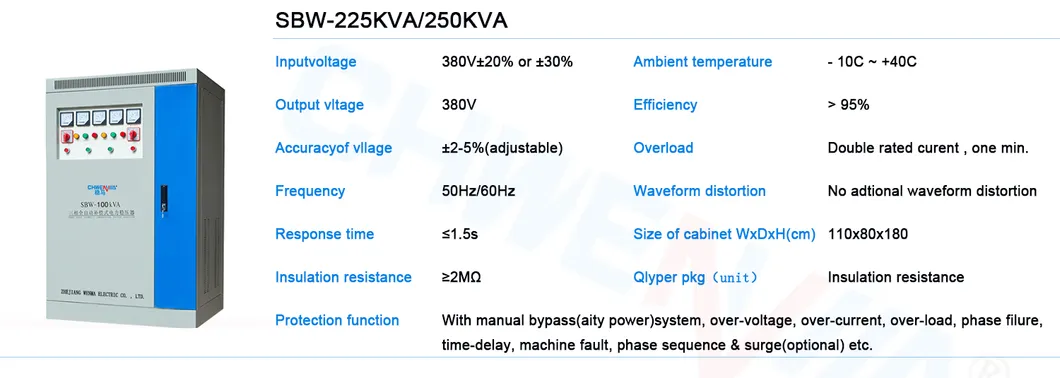

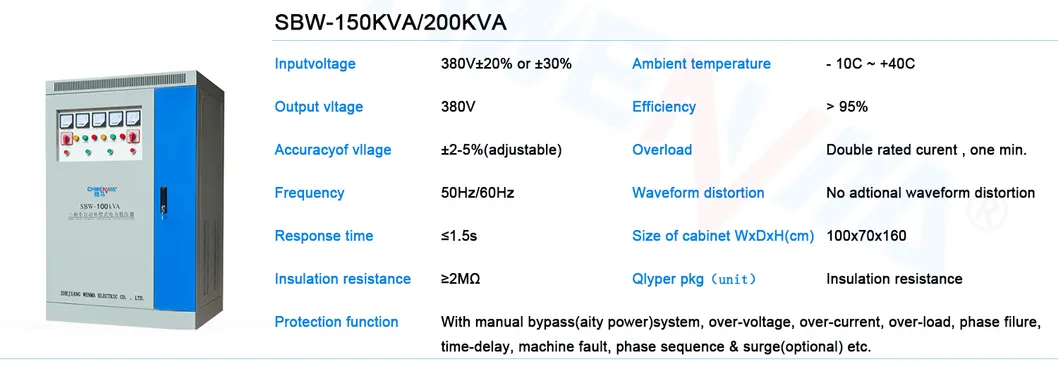

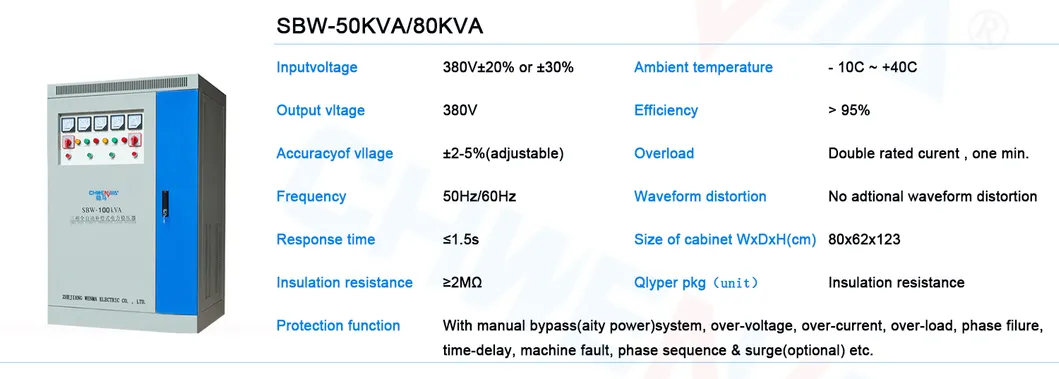

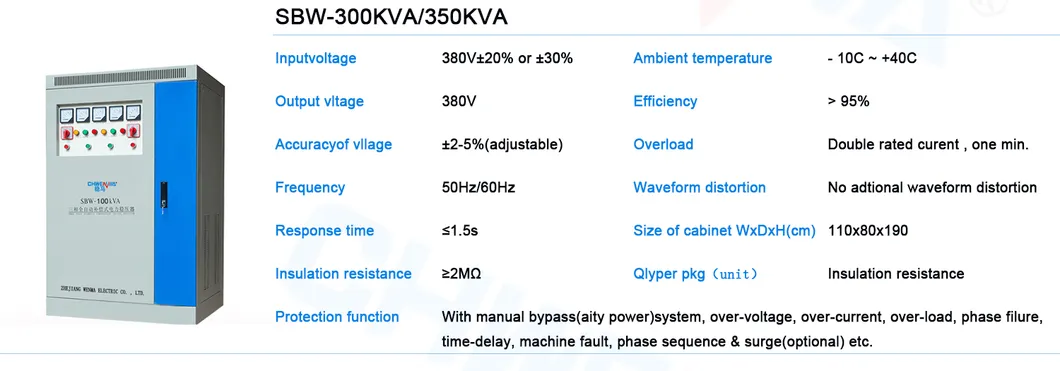

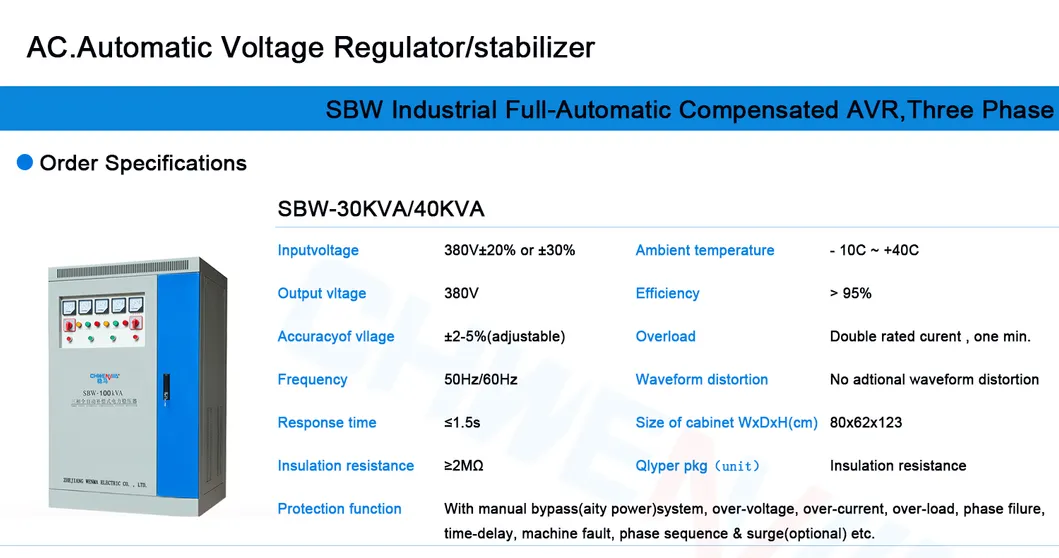

| No. | Item Name | Description |
|---|---|---|
| 1 | Output Voltage | 380V ±20%/±25%/±30% |
| 2 | Working Frequency | 50 / 60Hz |
| 3 | Regulation Mode | Simultaneous phase regulation |
| 4 | Constant Voltage Precision | ±(1~5%) adjustable |
| 5 | Insulation Class | F |
| 6 | Operation Time | ≥ 100,000 hours |
| 7 | Protection Class | IP 20 |
| 8 | Efficiency | ≥ 98% |
| 9 | Cooling Method | Forced air cooling with fan |
| 10 | Anti-Surge | High-energy surge impulse suppressor equipped |
