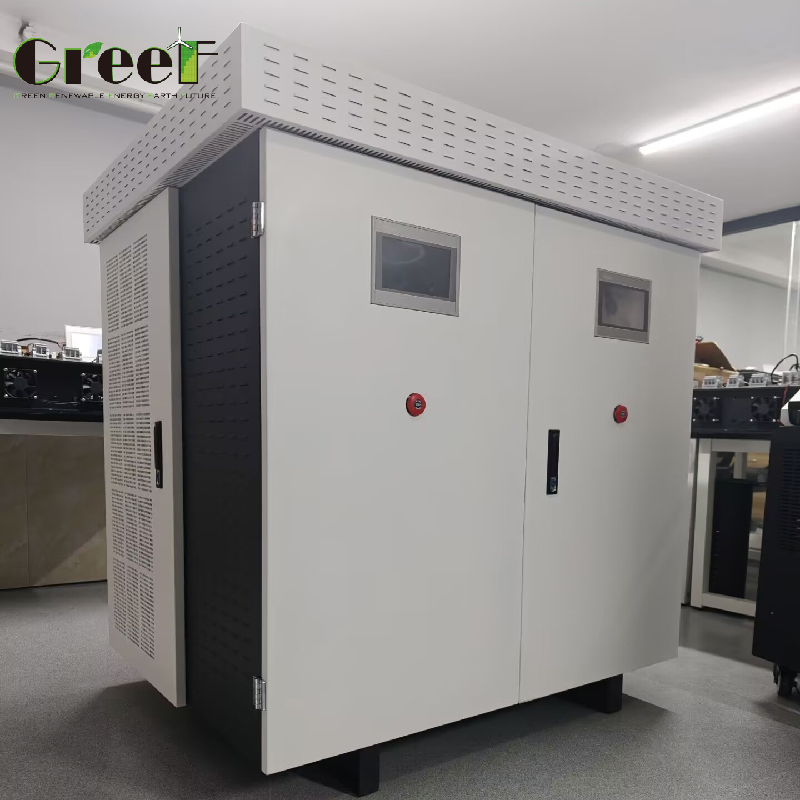

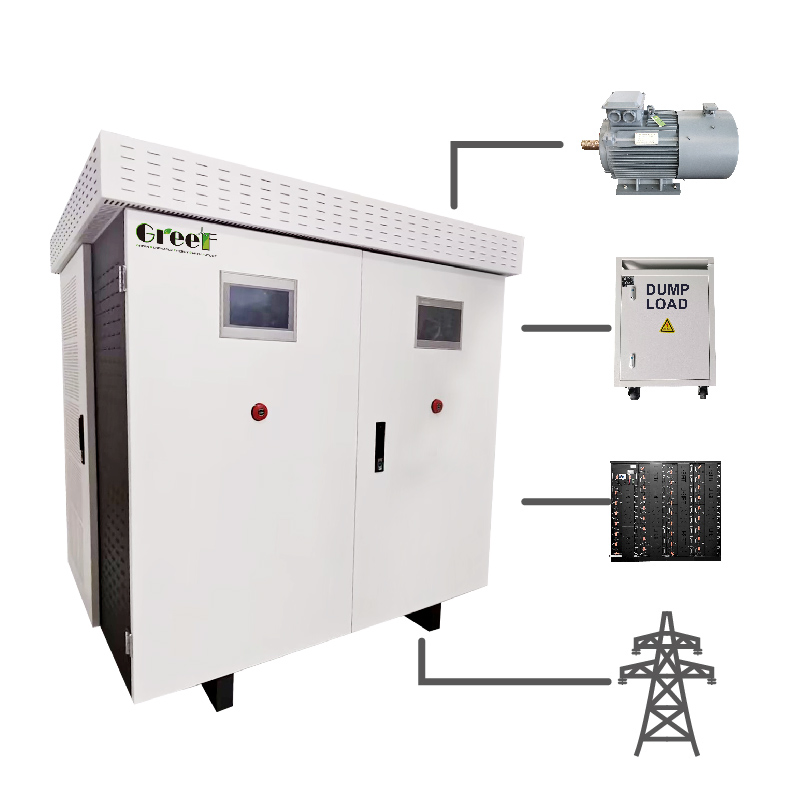

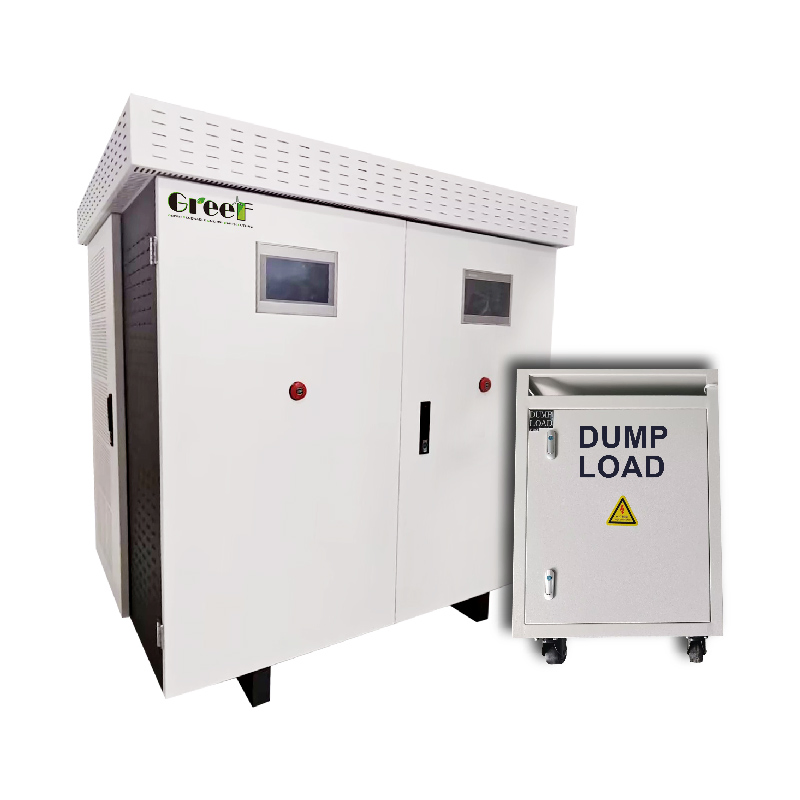

AC Generator-Battery Hybrid Converter with Generator Power Tracking and RS485 Protocol for Industrial Automation
AC Generator-Battery Hybrid Converter with Generator Power Tracking and RS485 Protocol for Industrial Automation
AC Generator-Battery Hybrid Converter with Generator Power Tracking and RS485 Protocol for Industrial Automation
AC Generator-Battery Hybrid Converter with Generator Power Tracking and RS485 Protocol for Industrial Automation
AC Generator-Battery Hybrid Converter with Generator Power Tracking and RS485 Protocol for Industrial Automation
1 / 5
AC Generator-Battery Hybrid Converter with Generator Power Tracking and RS485 Protocol for Industrial Automation
AC Generator-Battery Hybrid Converter with Generator Power Tracking and RS485 Protocol for Industrial Automation
AC Generator-Battery Hybrid Converter with Generator Power Tracking and RS485 Protocol for Industrial Automation
AC Generator-Battery Hybrid Converter with Generator Power Tracking and RS485 Protocol for Industrial Automation
AC Generator-Battery Hybrid Converter with Generator Power Tracking and RS485 Protocol for Industrial Automation

AC Generator-Battery Hybrid Converter with Generator Power Tracking and RS485 Protocol for Industrial Automation

Customization: Available
After-sales Service: Yes
Warranty: Yes
Send Inquiry

Product Description

ℹ️ Basic Information
Model NO.
Mars
Condition
New
Certification
CE
Rated Voltage
400V
Power Factor
> 0.99
Cooling Method
Intelligent Air Cooling
Battery Voltage
350 - 450 VDC
Origin
China
AC Generator-Battery Hybrid Converter
📝 Product Description

GREEF ENERGY multi-functional converter integrates the capabilities of AC-to-DC rectification for PM generators, battery charging, DC-to-AC inversion, and an energy management system. Featuring a configurable dual LCD touchscreen, it utilizes advanced converter technology to achieve stable voltage/frequency control for PMSGs, ensuring seamless Load power supply. It can also be configured to switch to a grid-tied mode for operation and grid charging.

🚀 Product Features

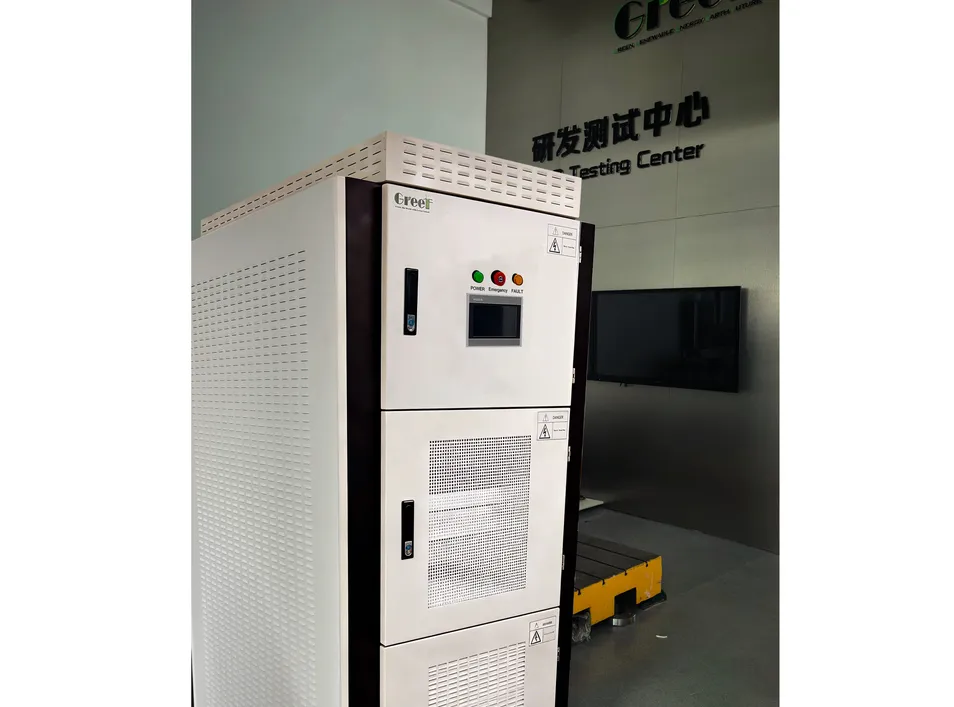

Feature Overview
  • EMS smart energy management system
  • Configurable operating modes: off-grid, grid-tied
  • Double LCD smart touch Screen Display
  • Generator power curve tracking technology
  • AC/DC dual backup for auxiliary power supply
  • Control Technology for Unbalanced Loads
  • Standard RS 485 modbus RTU protocol
  • PMW dump load protection (optional)
  • WIFI/ LAN Remote monitoring (optional)
  • Support customized sensor control
📊 Technical Parameters
Model ACPCS-100kt ACPCS-150kt ACPCS-200kt ACPCS-300kt ACPCS-500kt
Rated power(kW) 100 150 200 300 500
AC Voltage Range 150~550 Vac
Max efficiency 95%
Battery Type Lithium-ion
Rated Grid Voltage 400 V
Communication Ethernet, RS485, WIFI
🔍 Product Detail

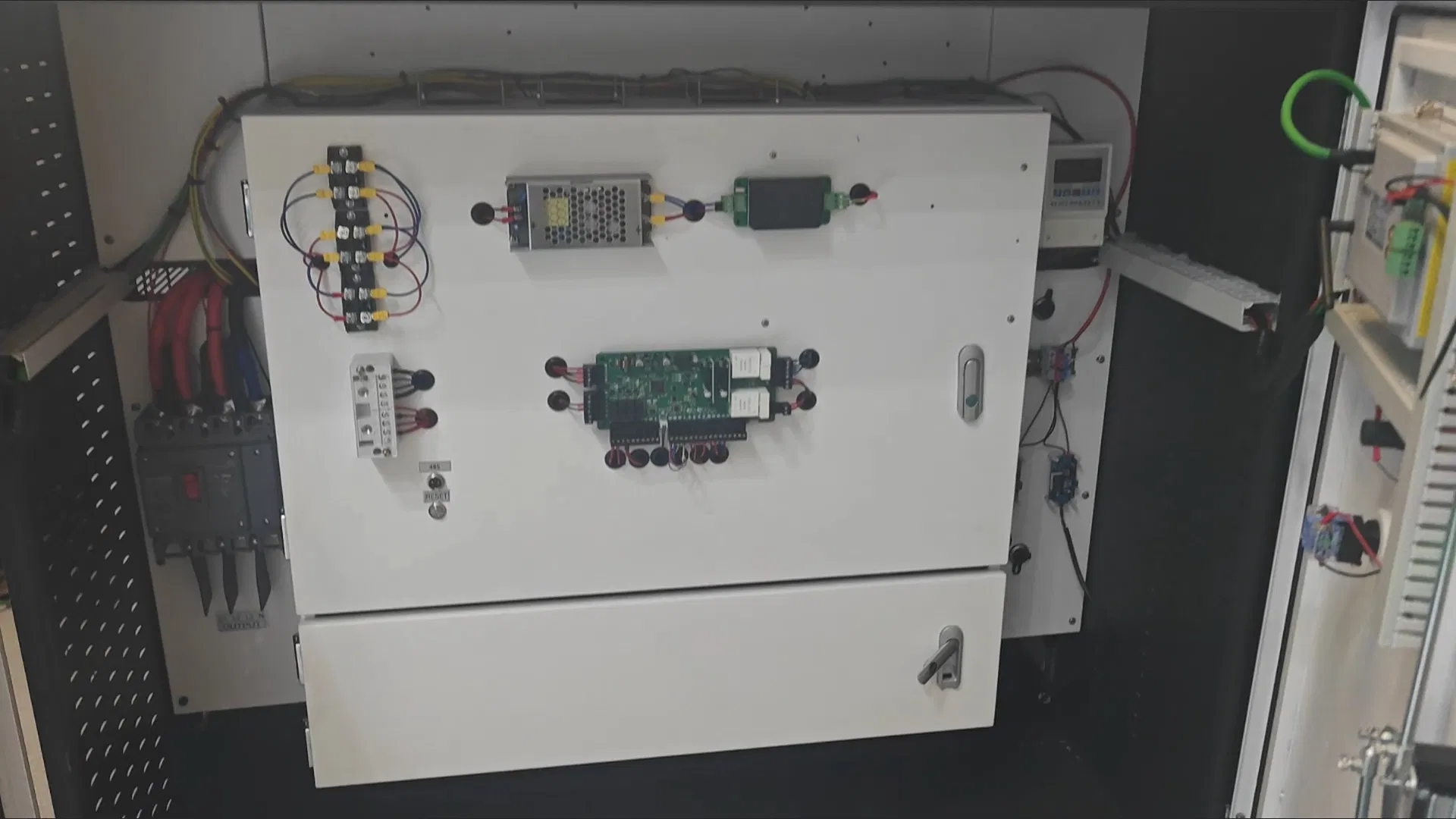

Internal details

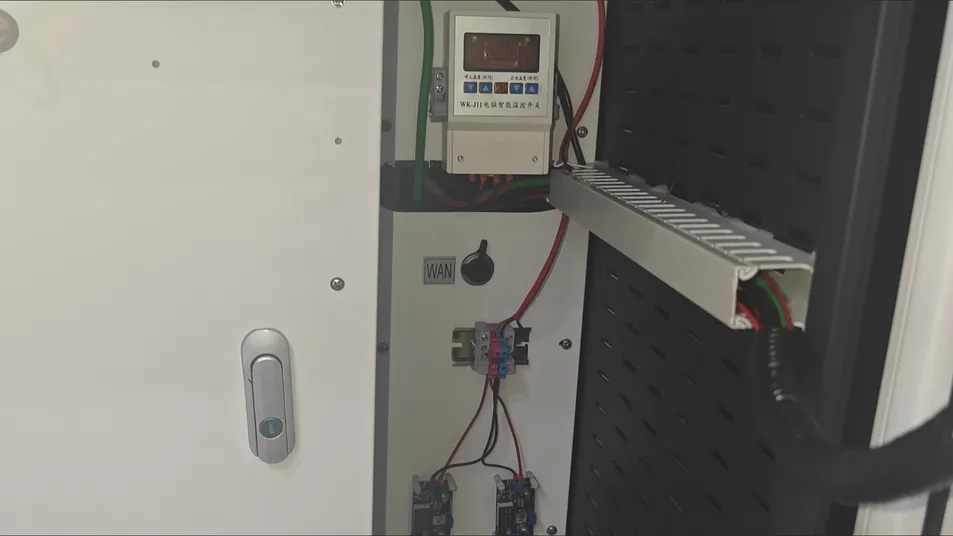

Component detail 1

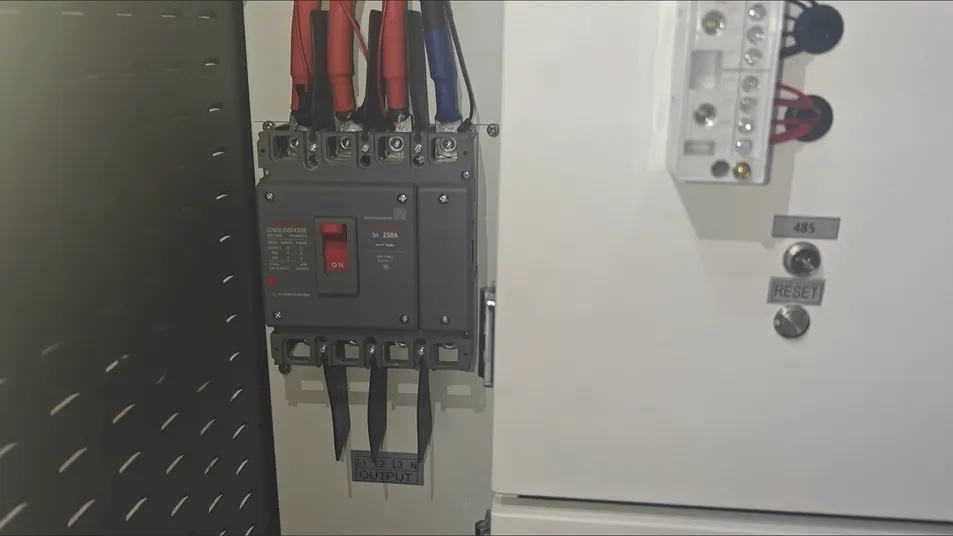

Component detail 2
💡 System Solution

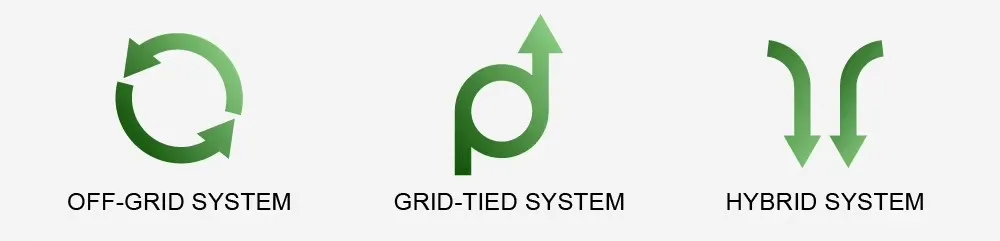

Solution Diagram 1

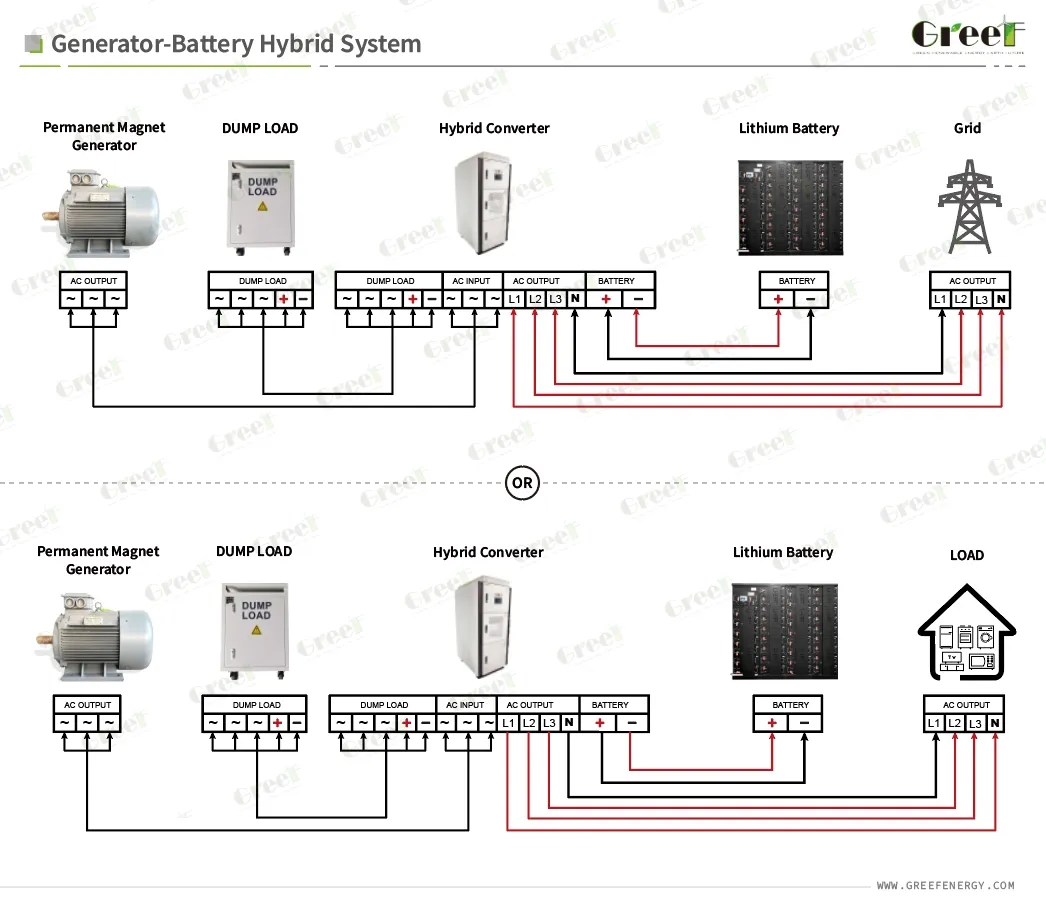

Solution Diagram 2
📦 Packaging & Shipping
Package Size
130.00cm * 100.00cm * 130.00cm
Gross Weight
460.000kg

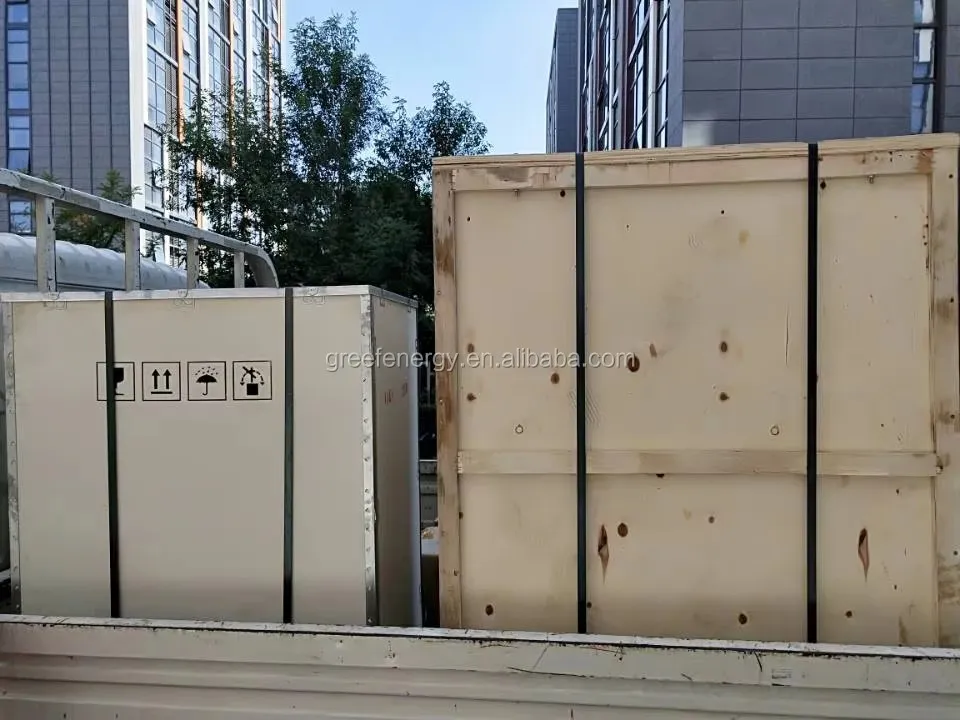

Packaging
🏆 Why Choose Us
Strength 1
Strength 2
❓ Frequently Asked Questions
Q1: What is the main function of this hybrid converter?
It integrates AC-to-DC rectification for permanent magnet generators, battery charging, and DC-to-AC inversion with an intelligent energy management system (EMS).
Q2: Does it support remote monitoring?
Yes, it supports WIFI, LAN, and Ethernet communication protocols for remote monitoring and control via dedicated apps.
Q3: Can the battery voltage be customized?
Yes, the battery voltage range is customizable, typically ranging from 400V to 900V DC depending on project requirements.
Q4: What types of protection are built into the system?
The system includes AC short-circuit protection, overcurrent protection, surge protection (Level 2), and optional over-voltage/speed protection.
Q5: Is it suitable for off-grid applications?
Absolutely. It features multiple configurable modes including off-grid, grid-tied, and grid charging to suit various industrial energy needs.
Q6: What is the cooling method used?
It utilizes an intelligent air cooling system to maintain optimal operating temperatures between -40℃ and +60℃.
