JDI Power Supply
1 / 5
| Model NO. | MXR100050B |
| Weight | 28kg |
| Parallel Modules | 60PCS |
| Mtbf | 500, 000 Hours |
| Input Current | 100A |
| Output Current | 167A |
| Power Factor | 0.99 |
| Input Frequency | 45Hz~65Hz |

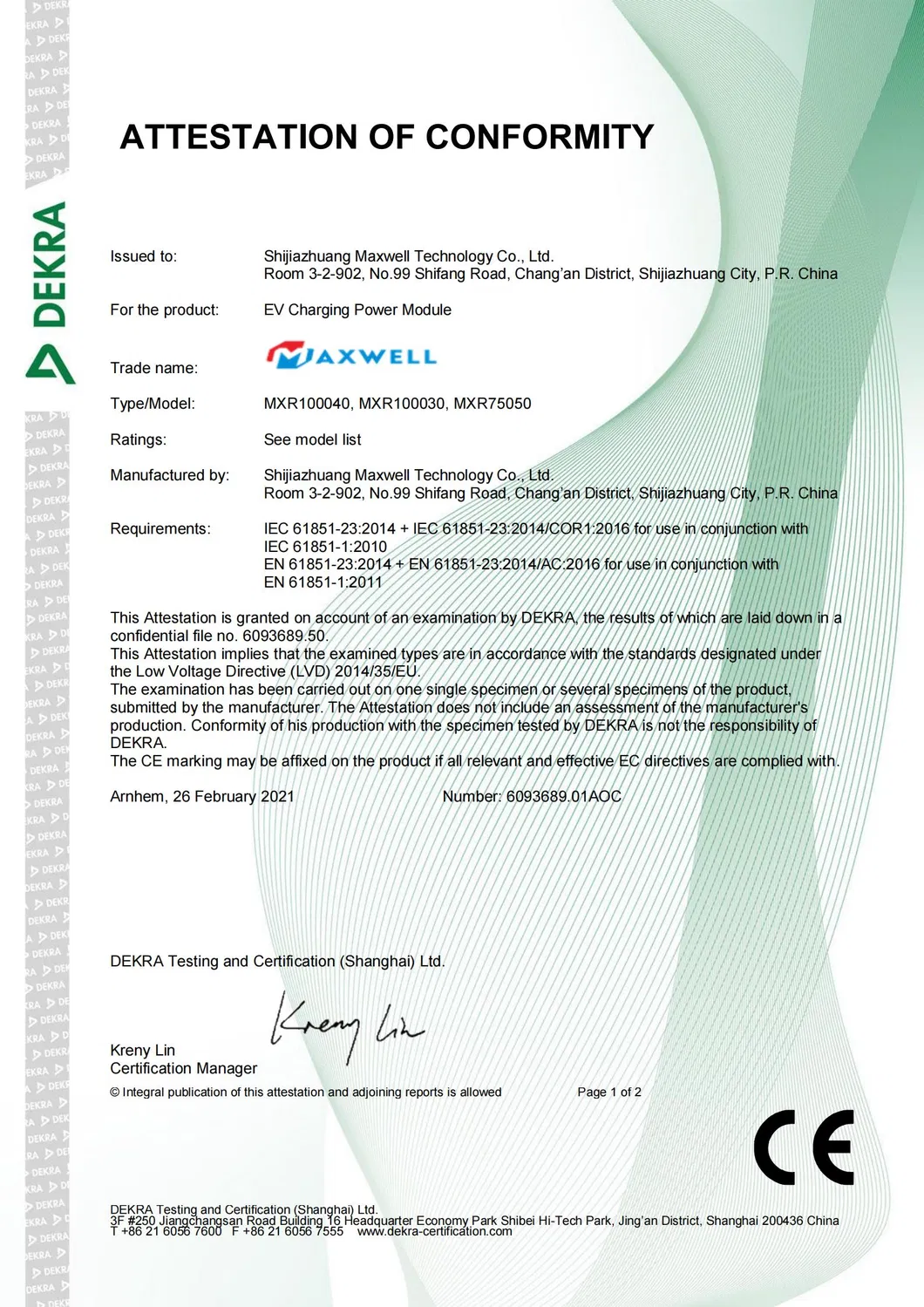

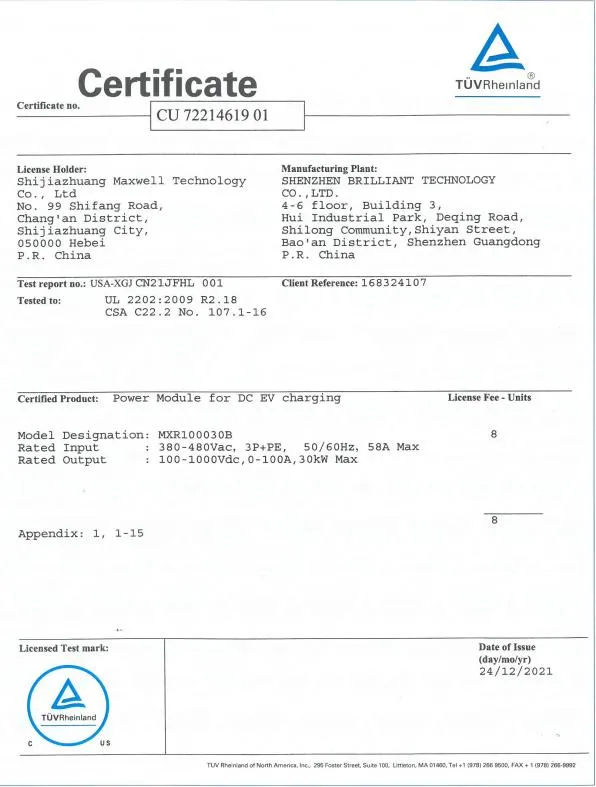

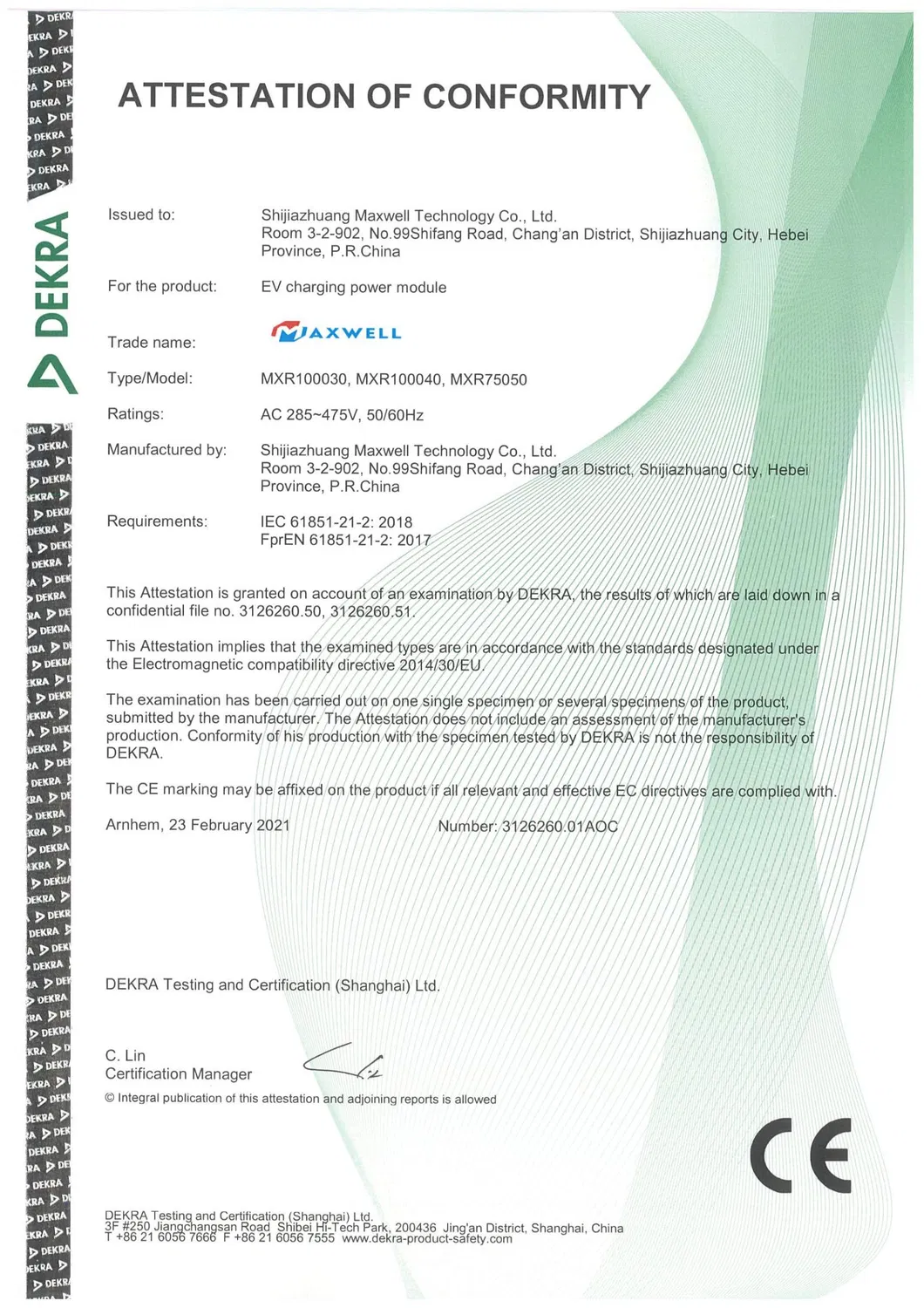

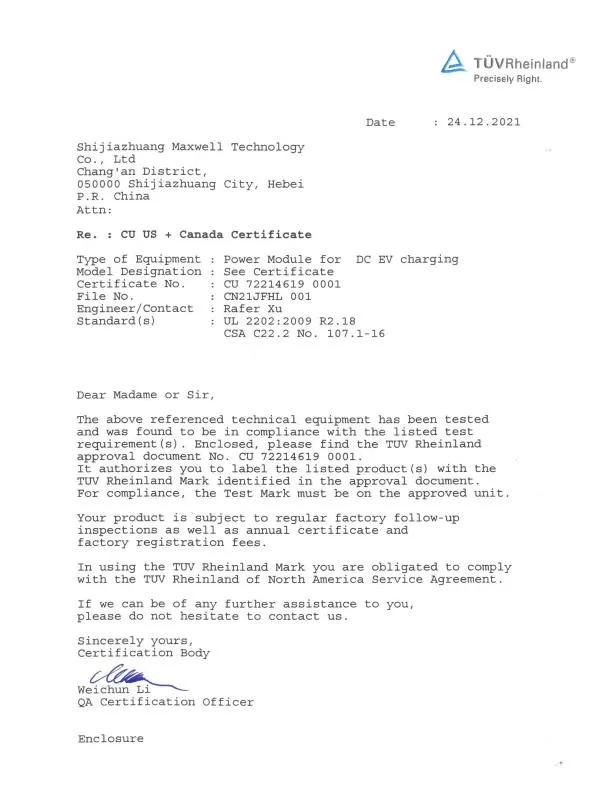

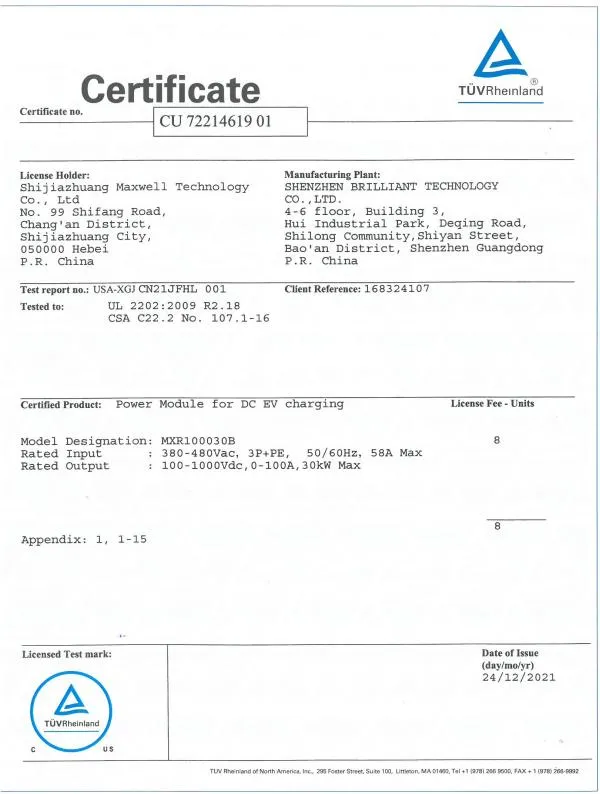

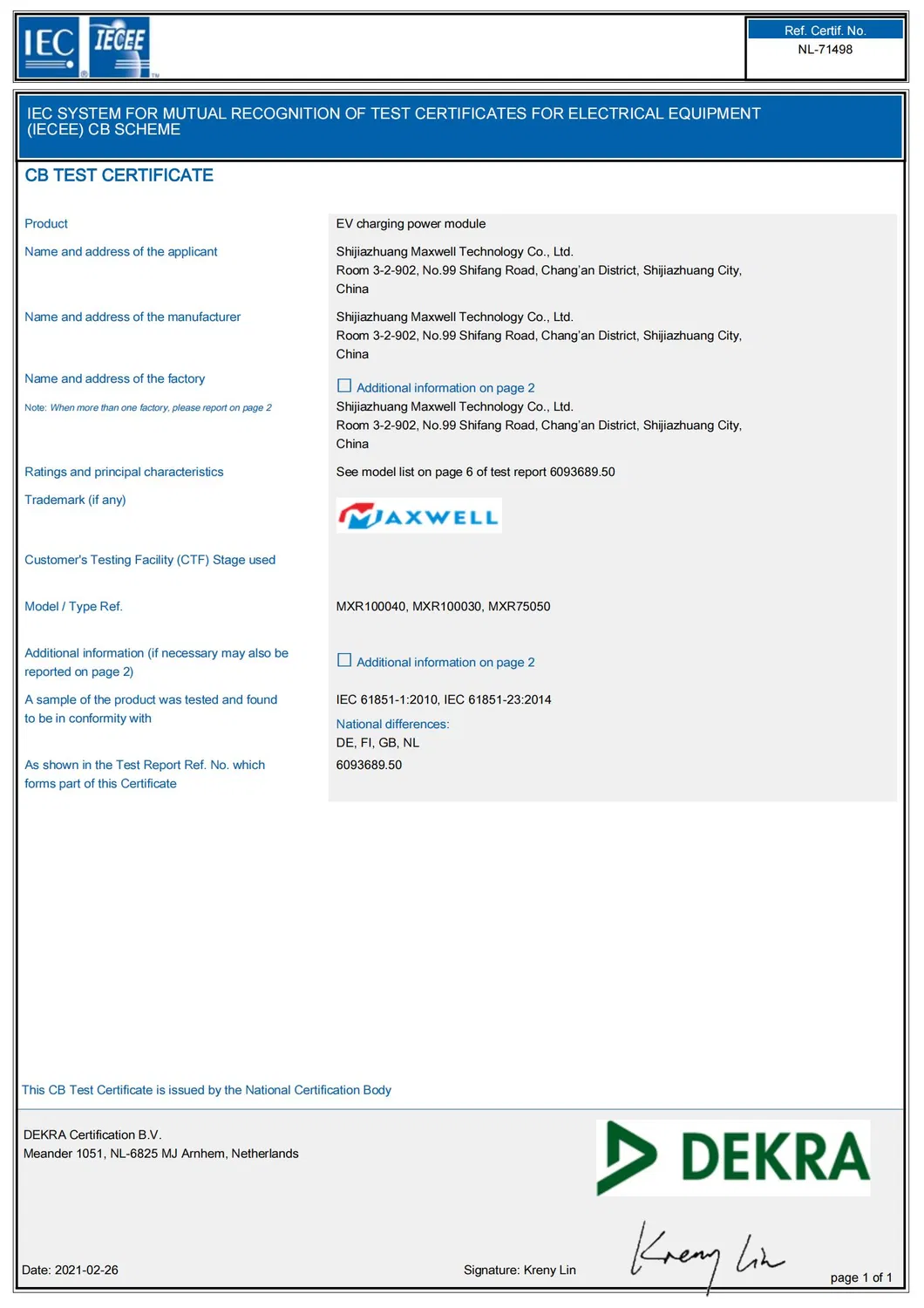

| Certification | CE, ISO, TUV, RoHS |
| Warranty | 12 Months |
| Package Size | 59.00cm * 59.00cm * 21.00cm |
| Package Gross Weight | 35.000kg |
| Model | MXR100050B |
| Efficiency (Full Load) | ≥95.5% |
| Communication Protocol | CAN bus |
| Dimensions | 125mm*440mm*380mm |

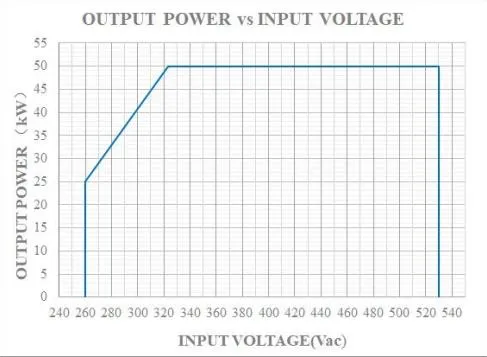

| Input Voltage | 260 Vac~530 Vac, 3 phase+PE |

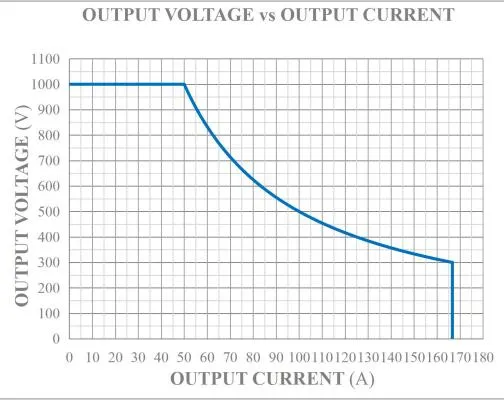

| Output Voltage | 200 Vdc~1000 Vdc |
| Output Derating | Above 75ºC |

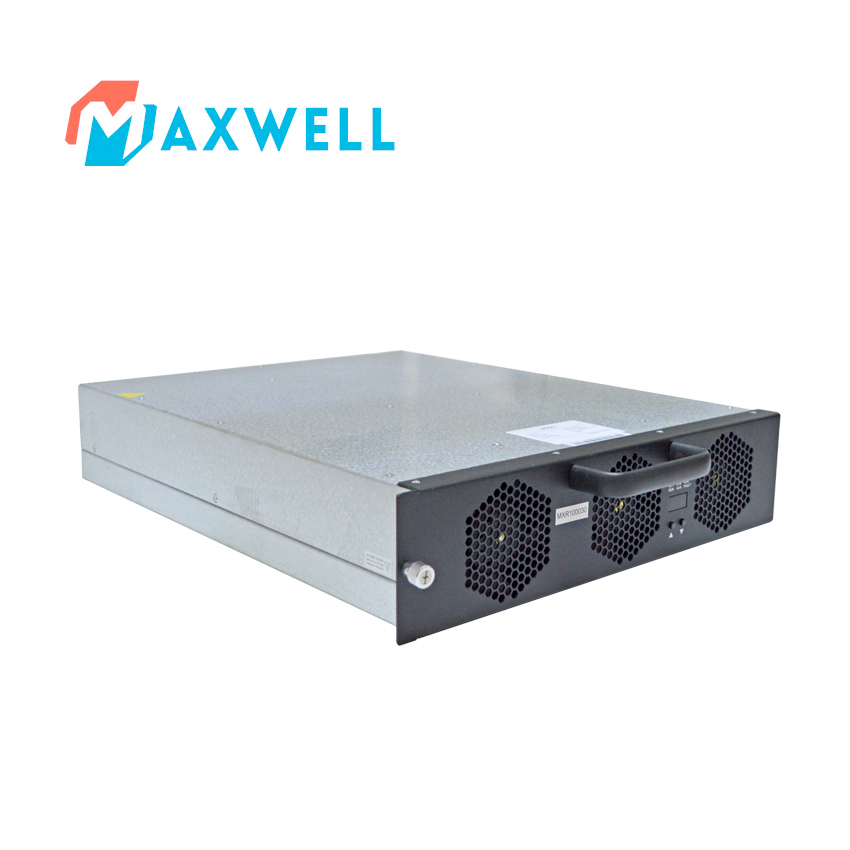

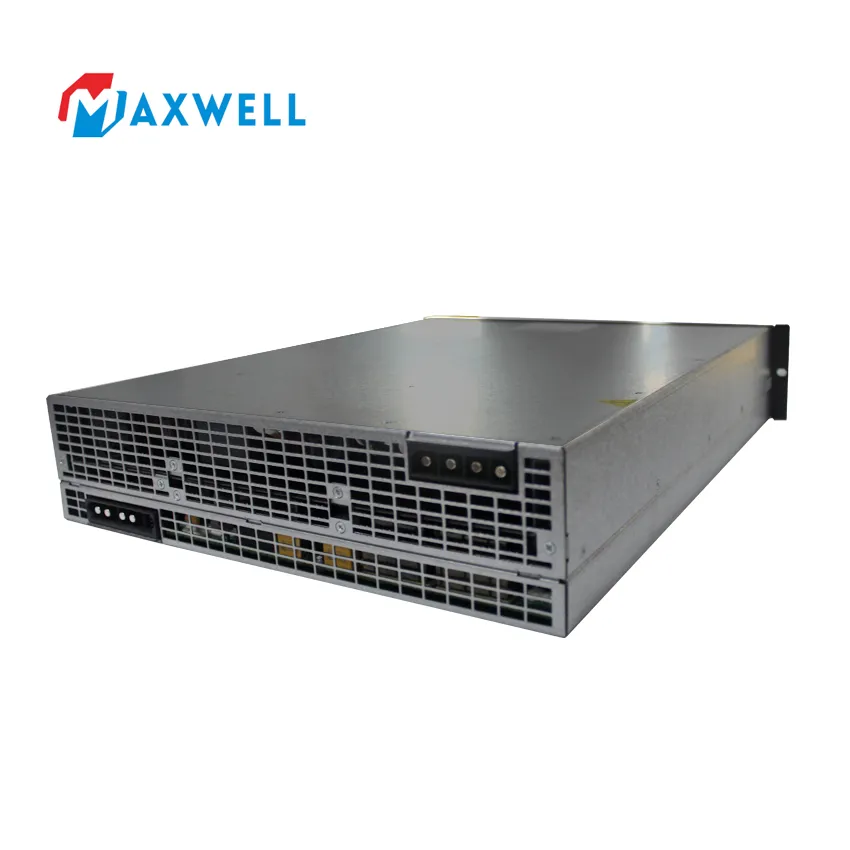

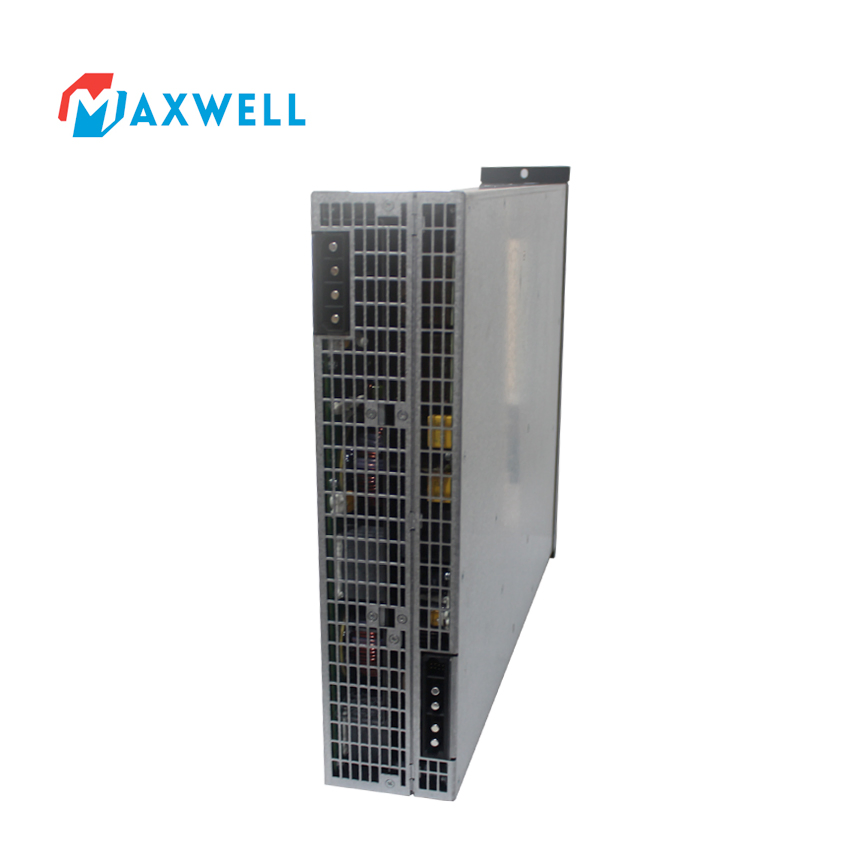

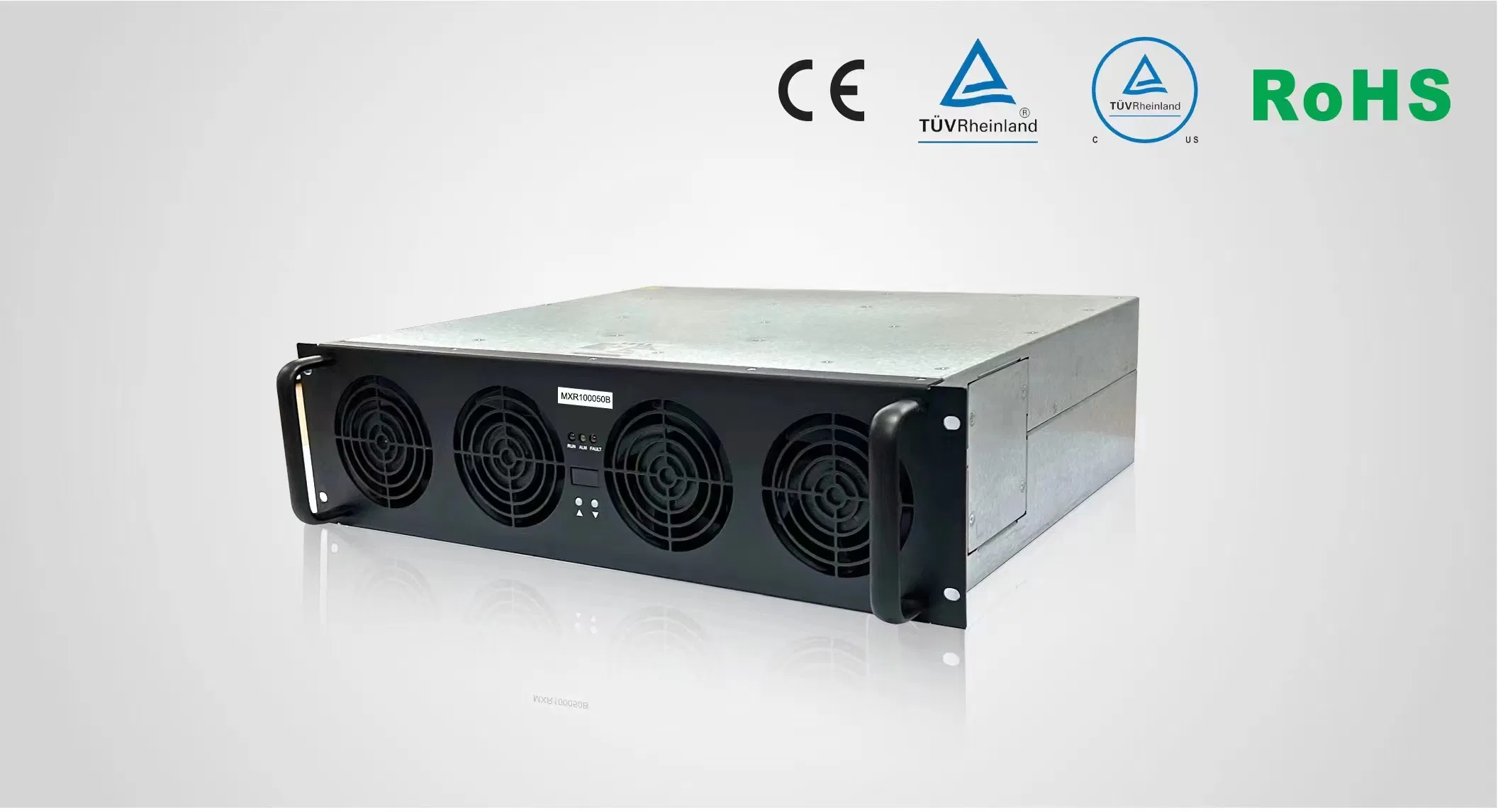

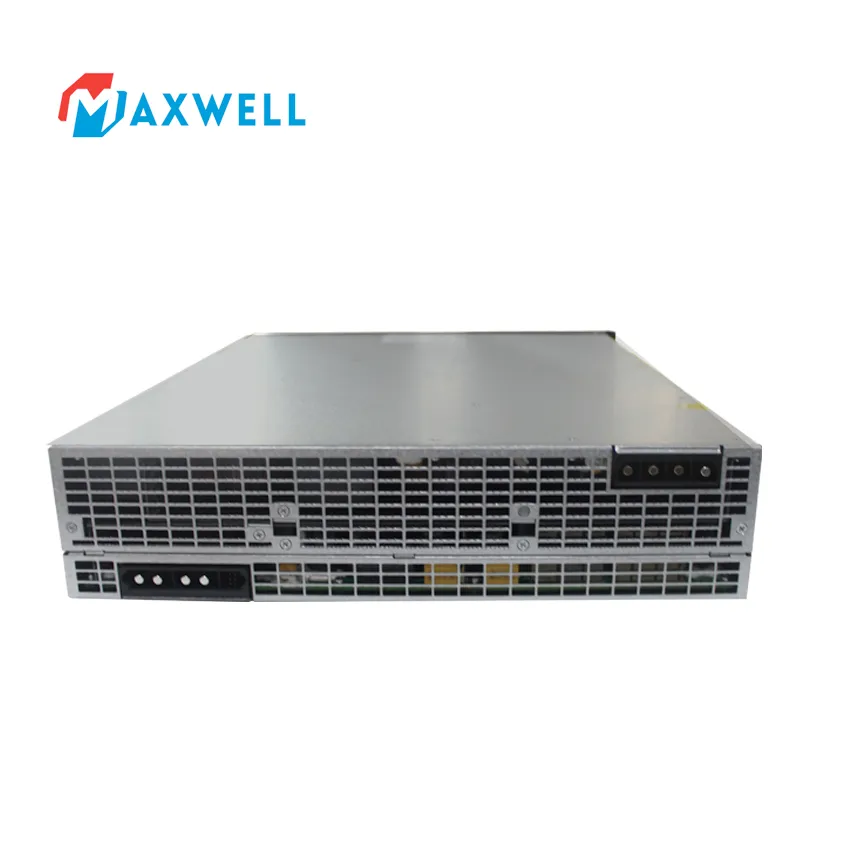

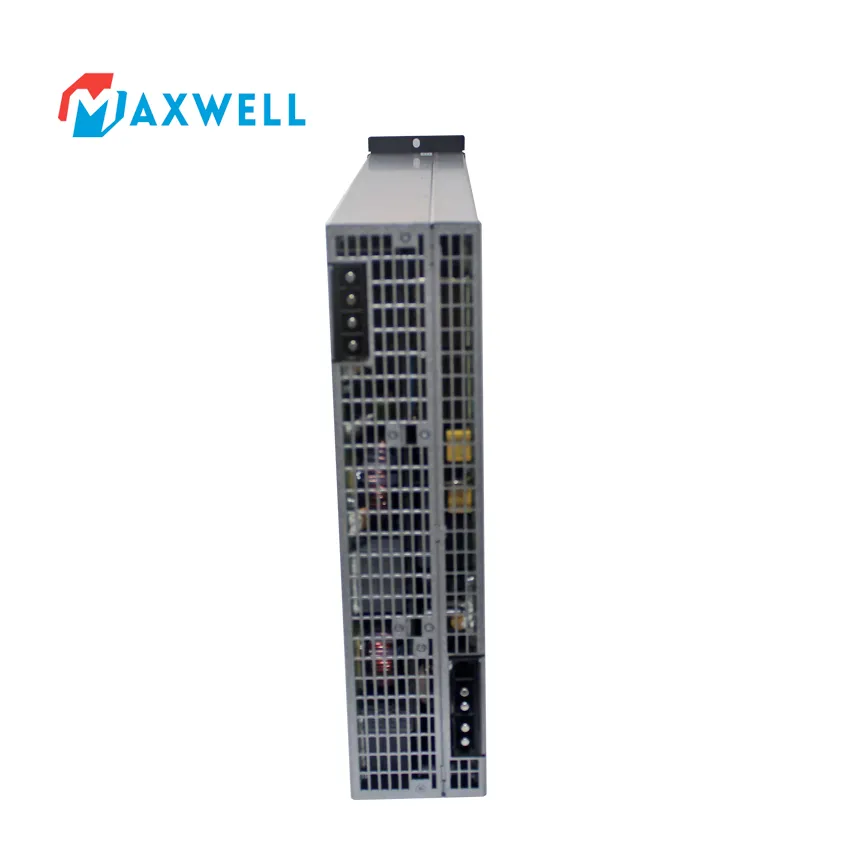

MXR100050B is a high-power AC/DC charging module specially designed for high-end charging scenarios of electric vehicles.
Established in 2009, the company initially focused on power converters for the power industry. Since 2014, the strategic direction shifted towards photovoltaic, energy storage, and new energy industries.
Current Product Lineup:
✅ Warranty Period: 1 Year
✅ Replacement Policy: Free replacement for non-human damage within the first 6 months (shared freight).
✅ Repair Policy: Free repair for non-human damage in the second half of the year.
✅ Technical Support: Engineers available for assistance during testing processes.
