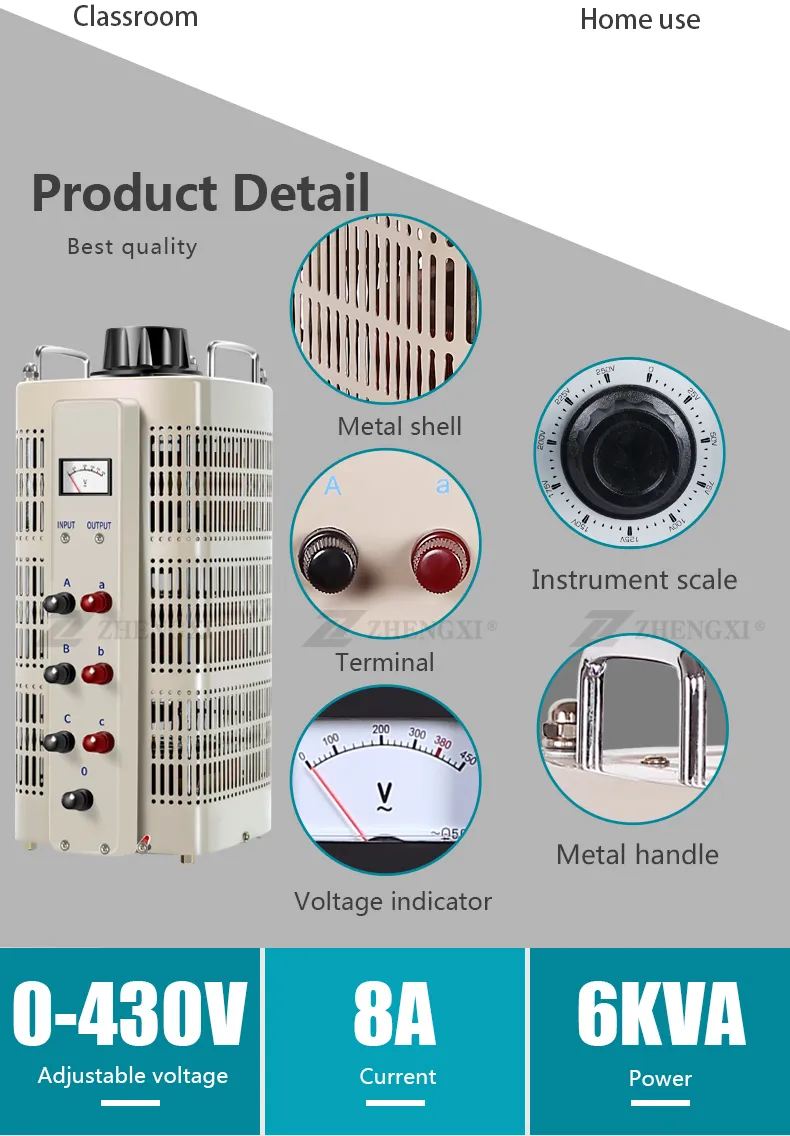

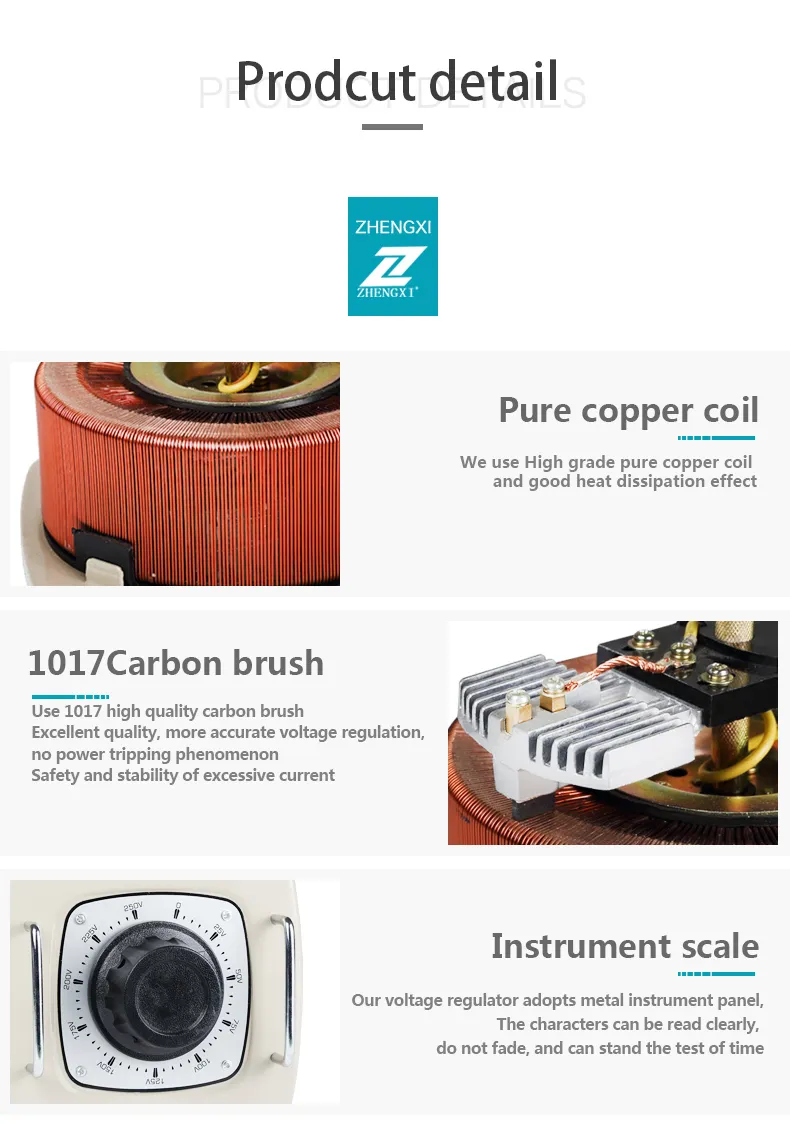

This series of products is an adjustable autotransformer structure. It consists of a toroidal transformer (voltage regulating coil) and a carbon brush. The carbon brush rotates along the surface of the voltage regulating coil to change the ratio of the primary and secondary coils, achieving precise voltage adjustment freely within 0-430V.

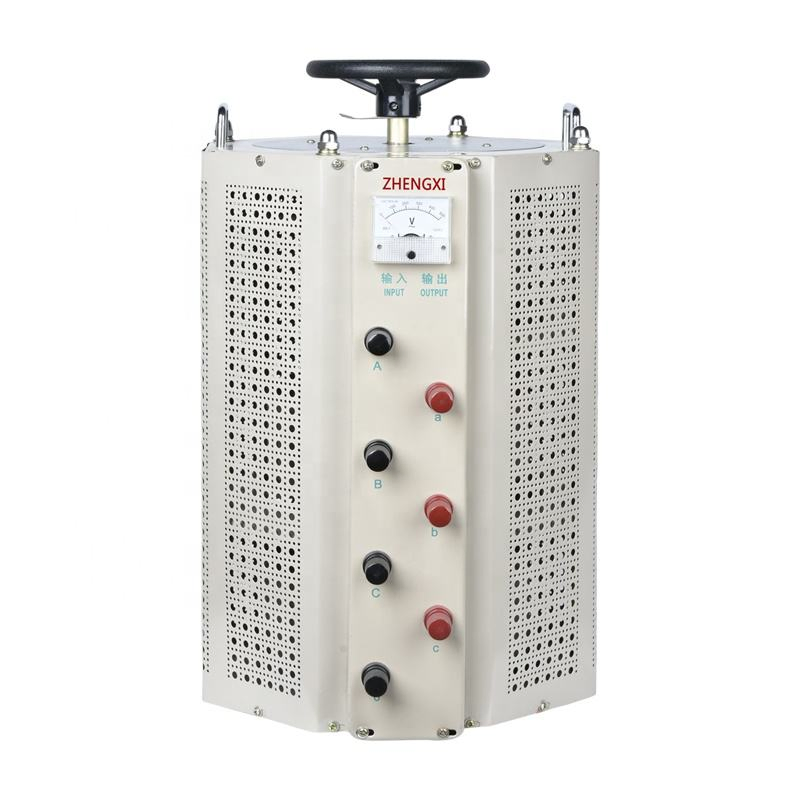

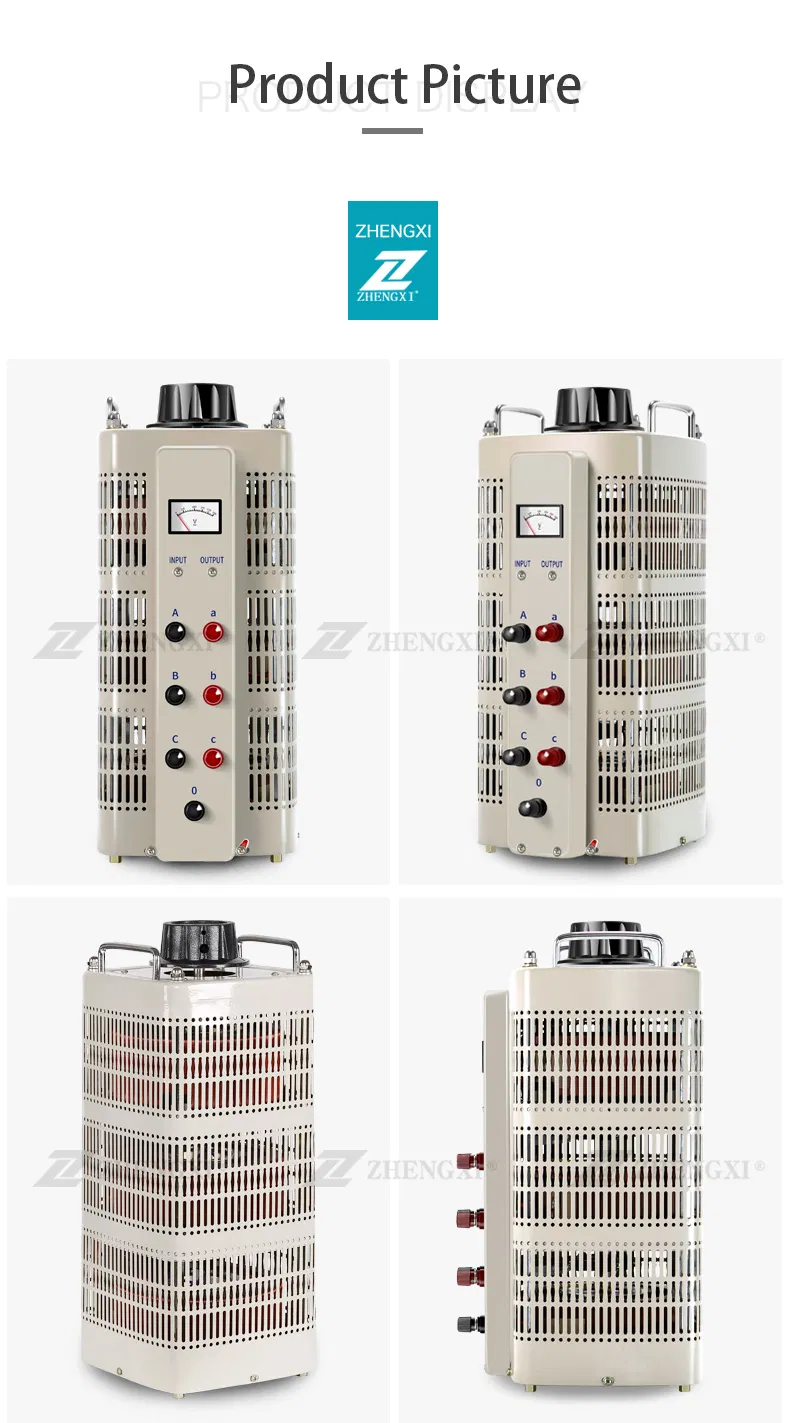

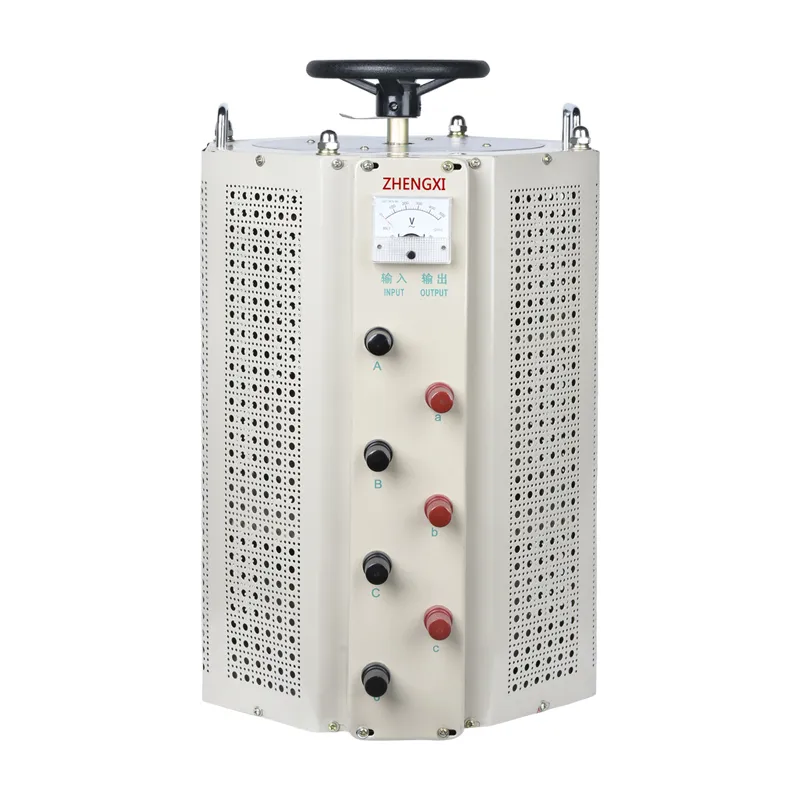

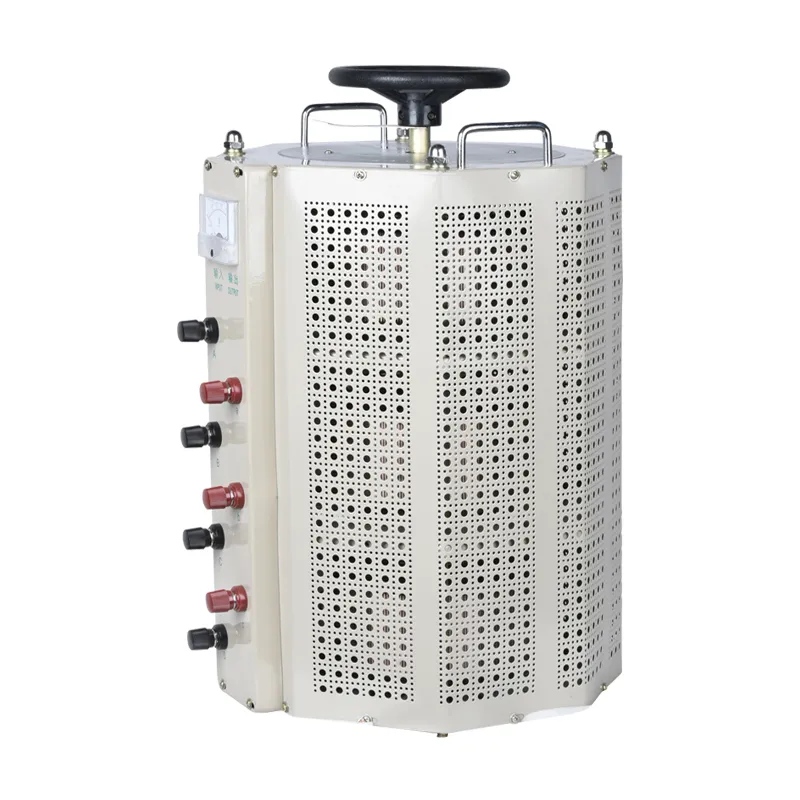

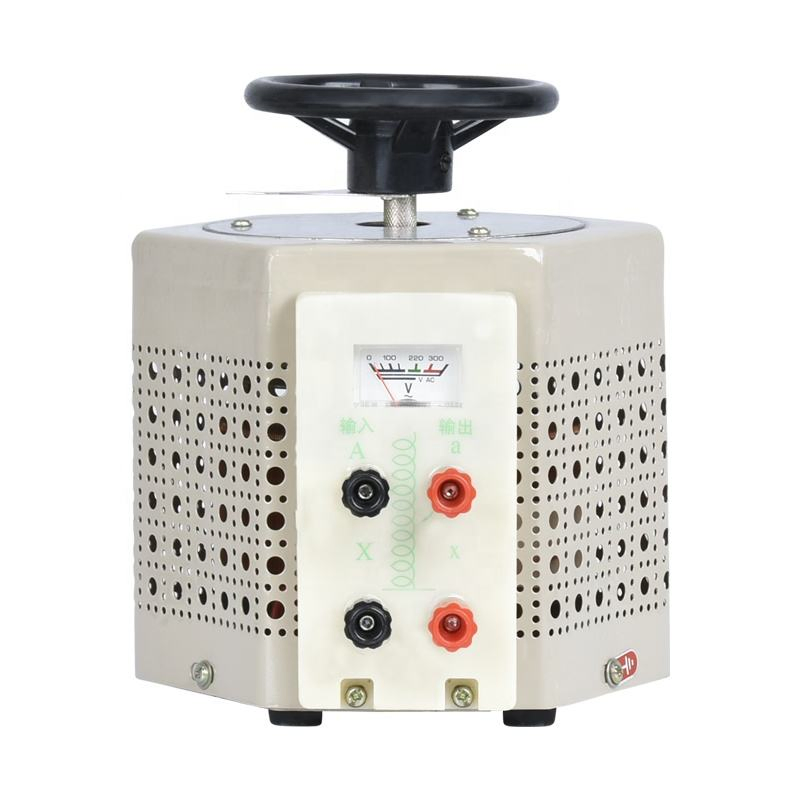

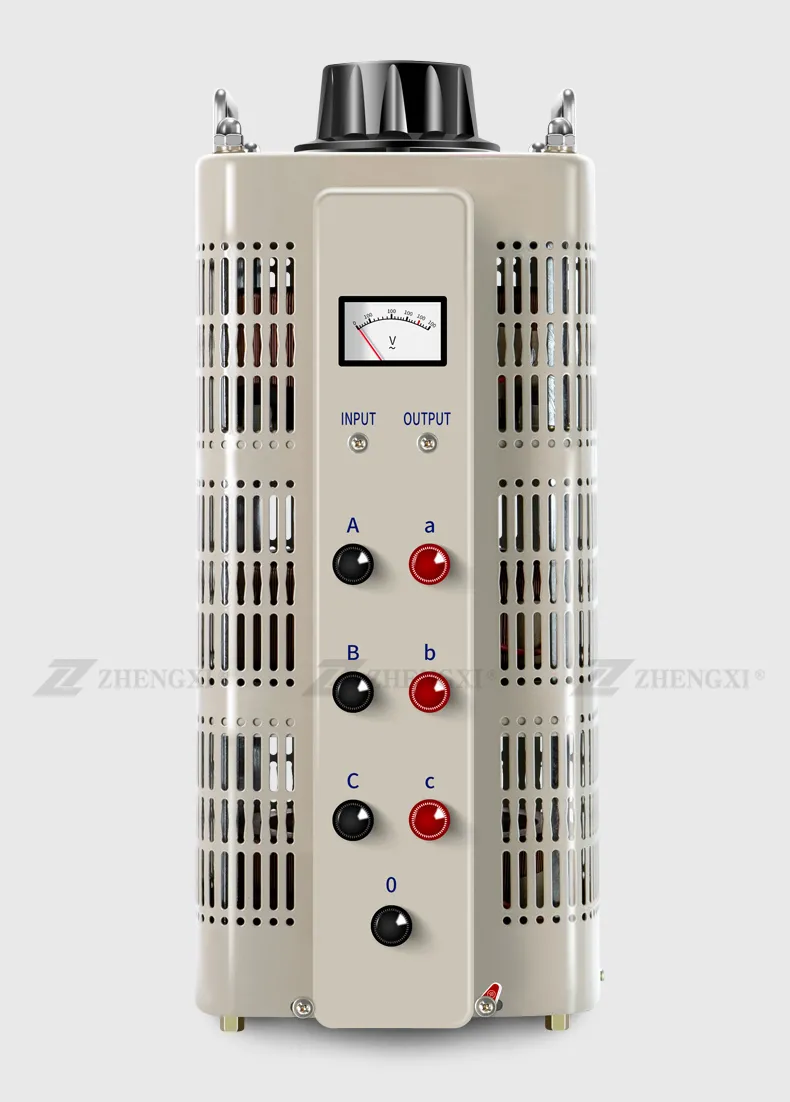

Key features include: beautiful appearance, reasonable structure, undistorted waveform, compact size, high efficiency, and reliable long-term operation. The TSGC2 model features a modern quadrangular shape, while the TSGC2J maintains a classic hexagonal design.
Ideal for use in: Chemical industries, metallurgy, instrumentation, machinery manufacturing, light industry, public equipment, and household appliances.

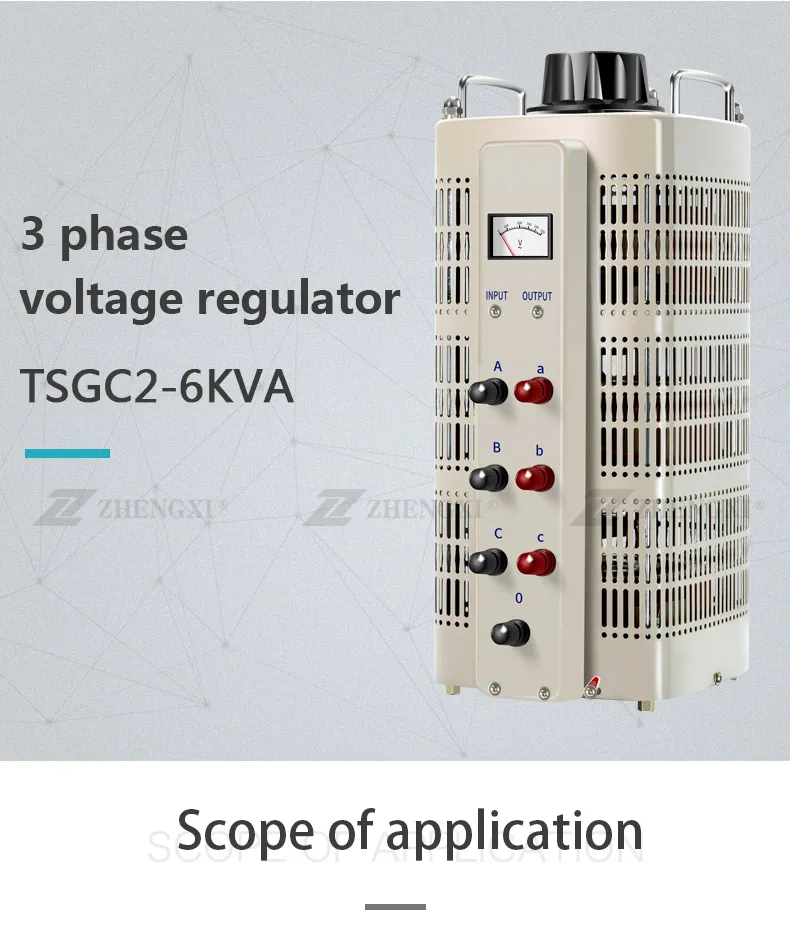

| Model | TSGC2 Series |
| Product Name | Voltage Regulator |
| Input Voltage | Three-phase 380V ± 10% |
| Output Voltage | Three-phase 0-430V ± 10% (customizable) |
| Working Frequency | 50Hz / 60Hz |
| Efficiency | > 90% |
| Waveform Distortion | No additional distortion |
| Electrical Strength | 1500V / 1min |
| Insulation Resistance | Single phase >5MΩ, Three phase >2MΩ |
