Rated voltage: single-phase/three-phase 200V-10% to 240+10%, three-phase 340V-10% to 460V+10%
Voltage imbalance rate: <3%
Frequency: 50-60Hz ± 5%
Rated voltage: single-phase/three-phase 200V to 460V
Rated output current: Continuous output of 100% rated current
Maximum overload current: 150% for 60S (High Power: 140% for 60S)

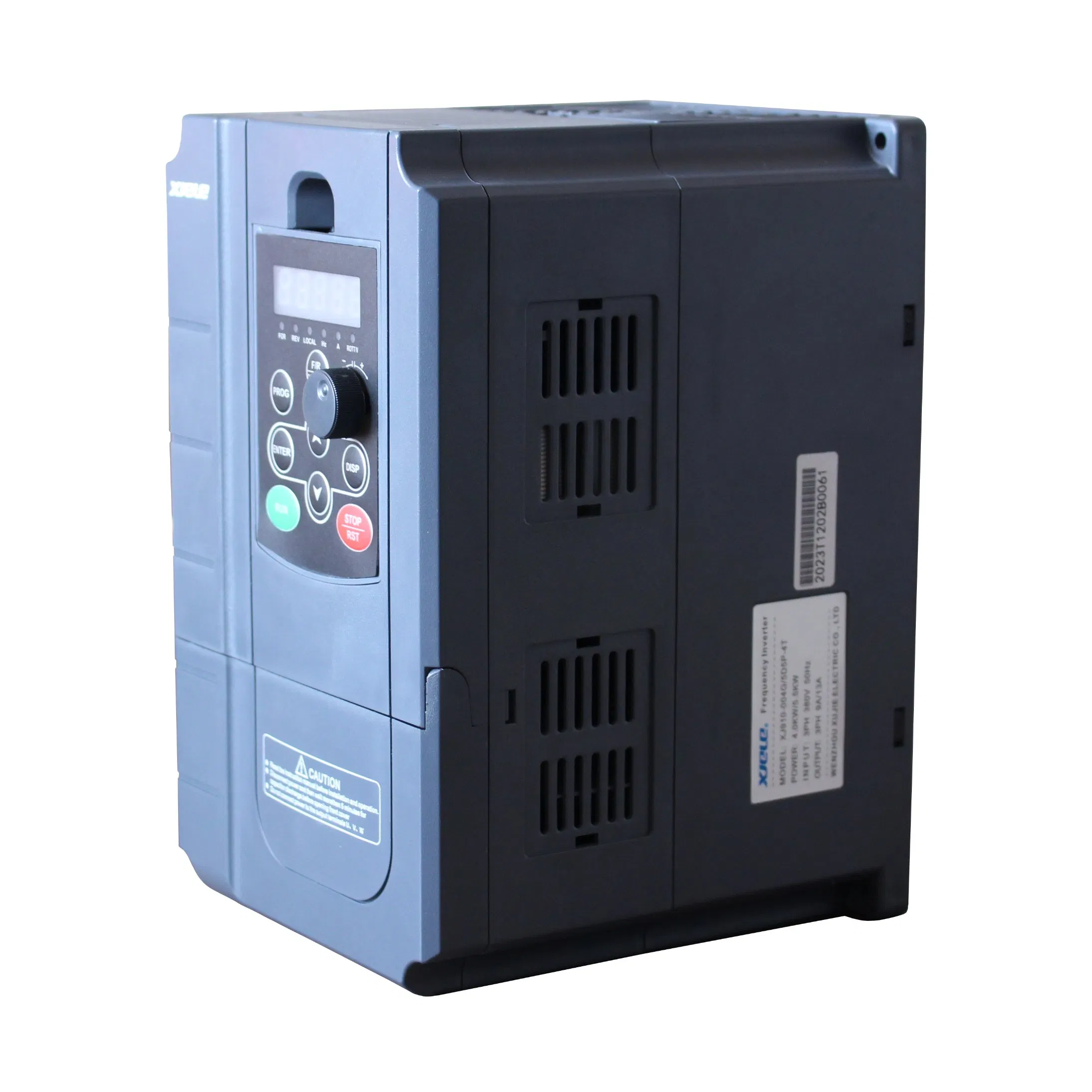

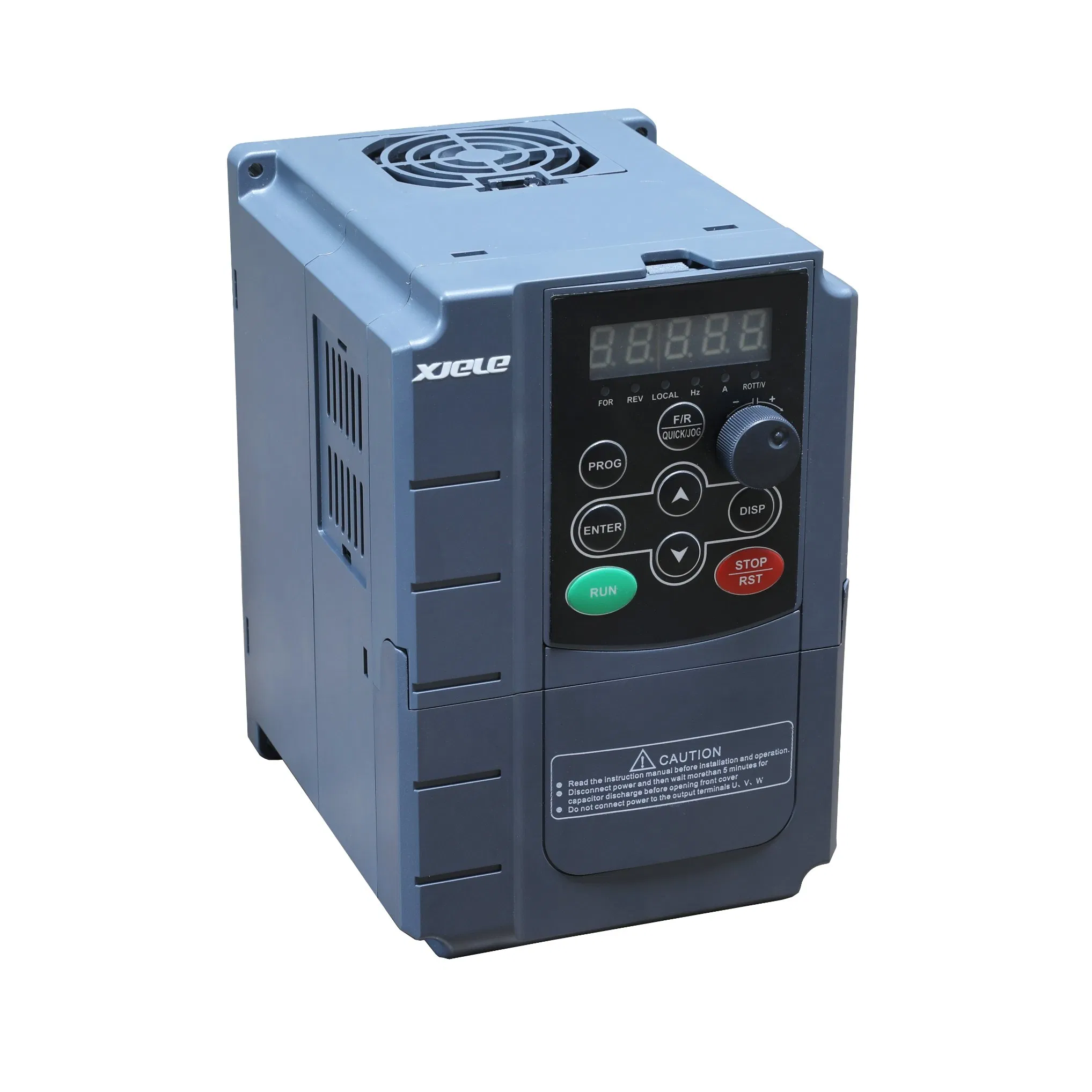

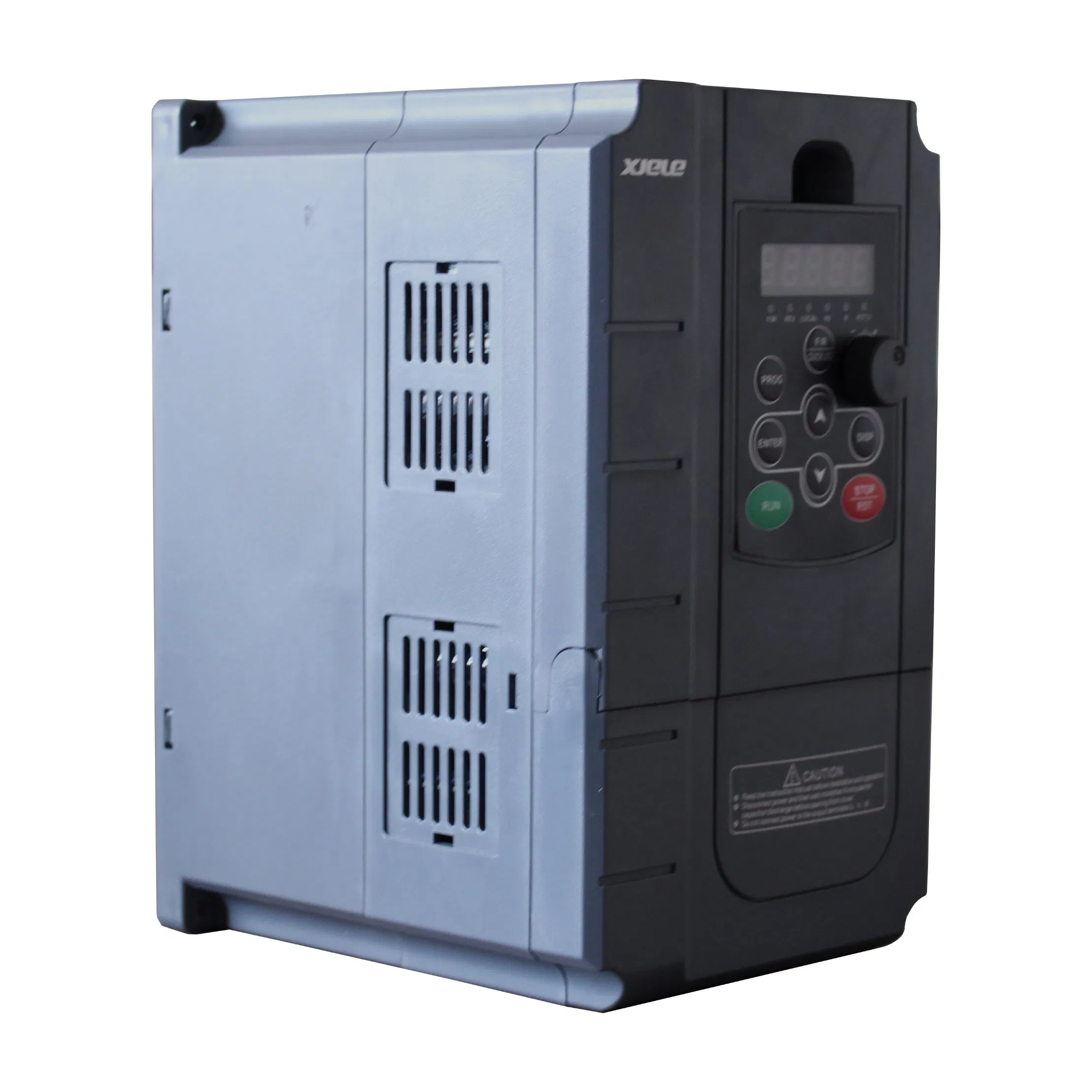

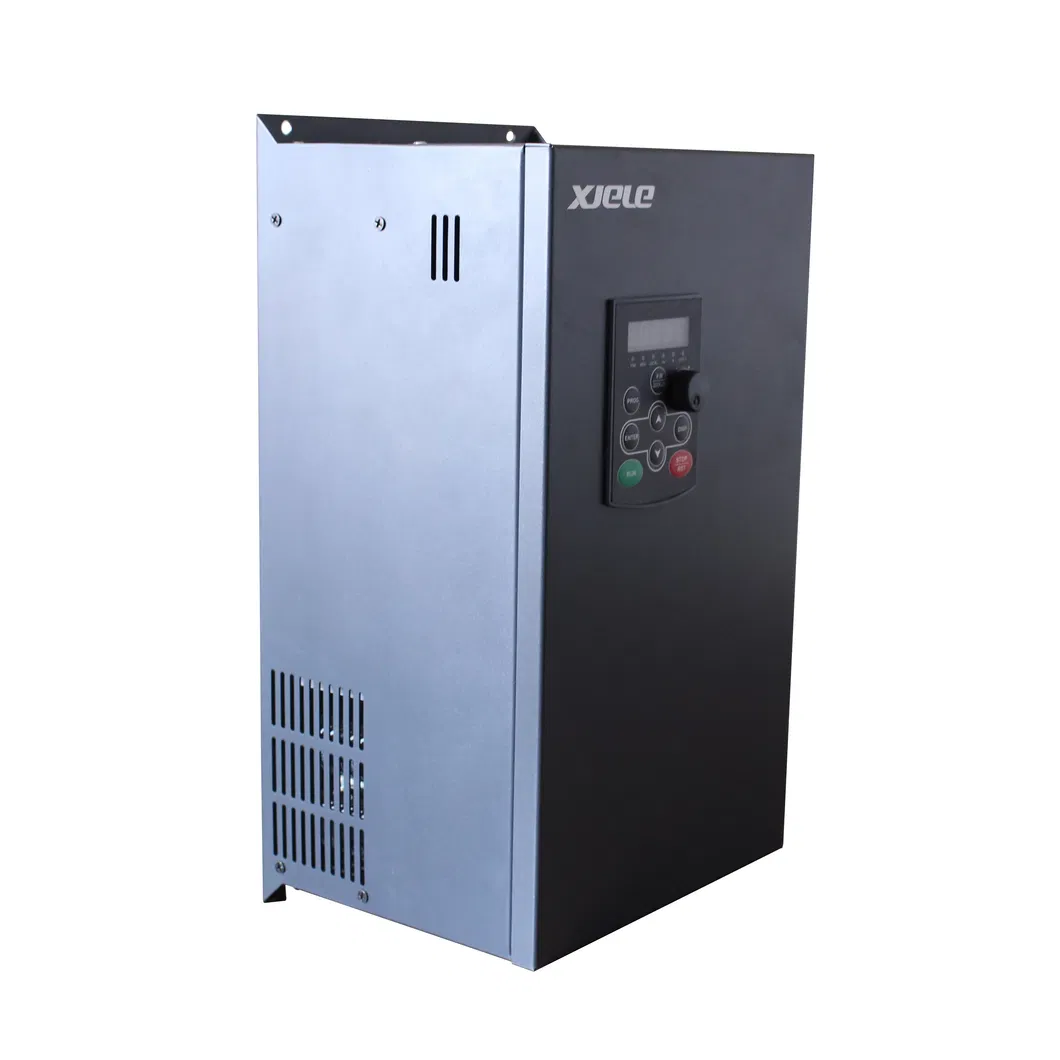

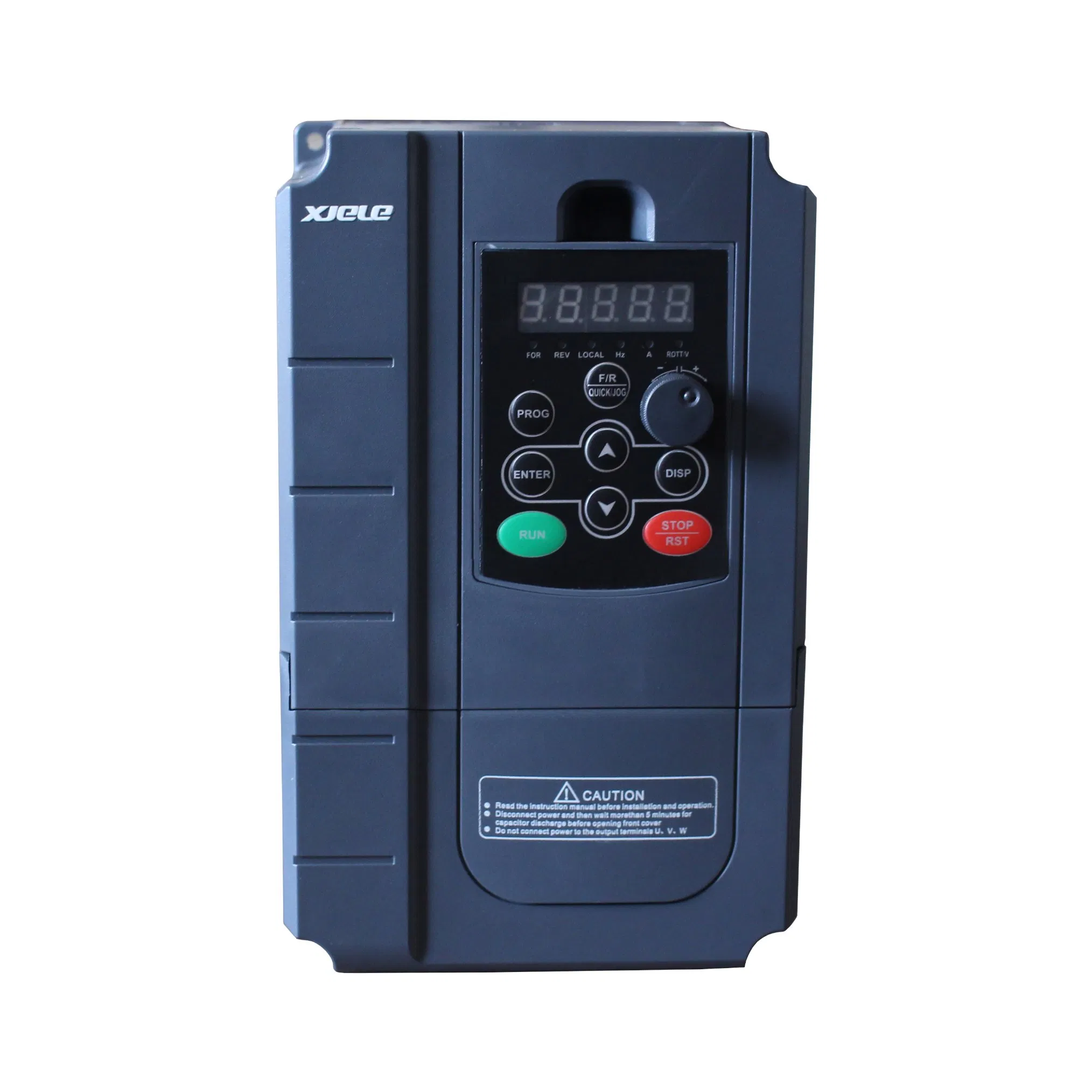

✔ Built-in industrial heavy-duty vector IGBT module for stable performance.
✔ Adjustable speed frequency from 0-600Hz.

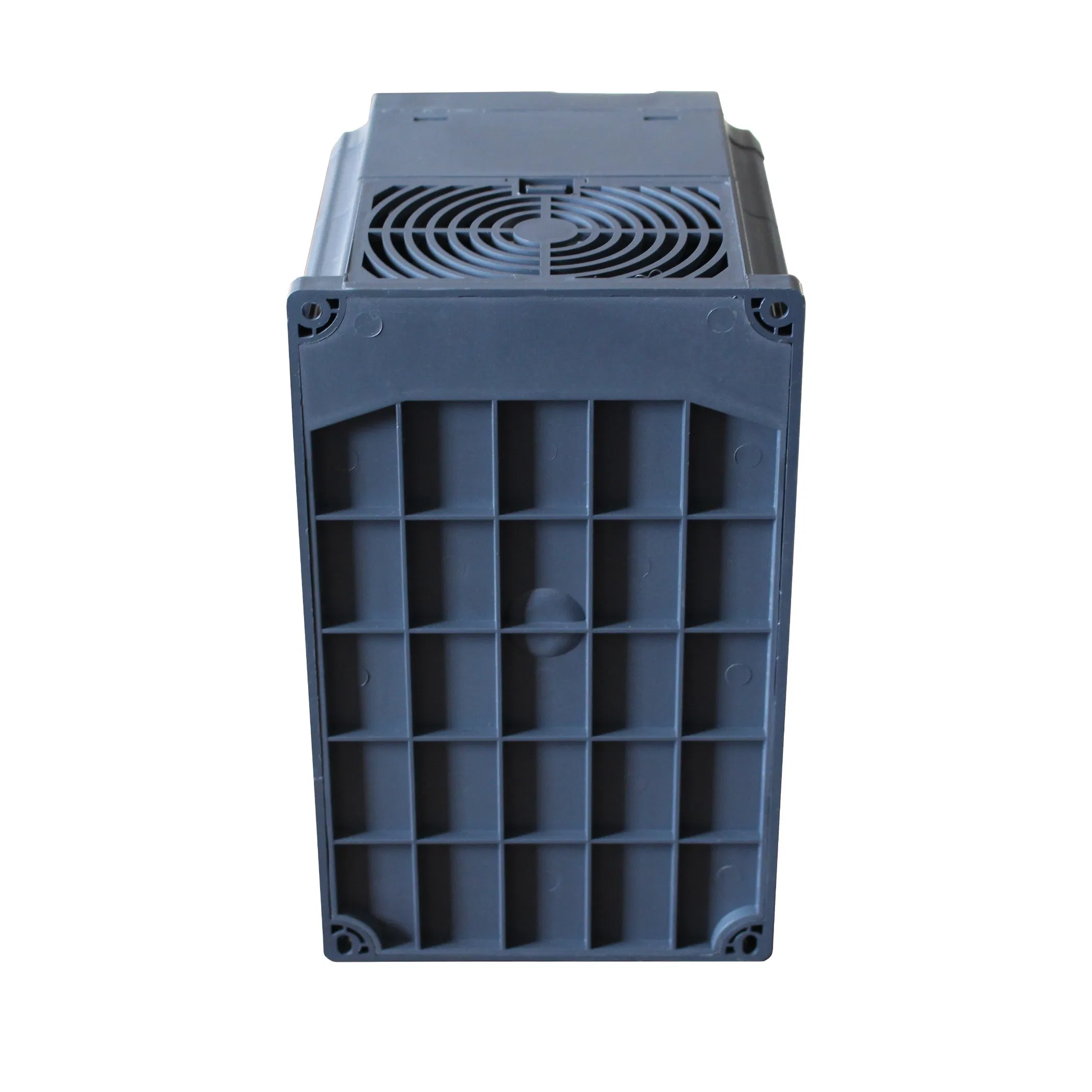

✔ Strong cooling fan paired with porous aluminum alloy radiator.

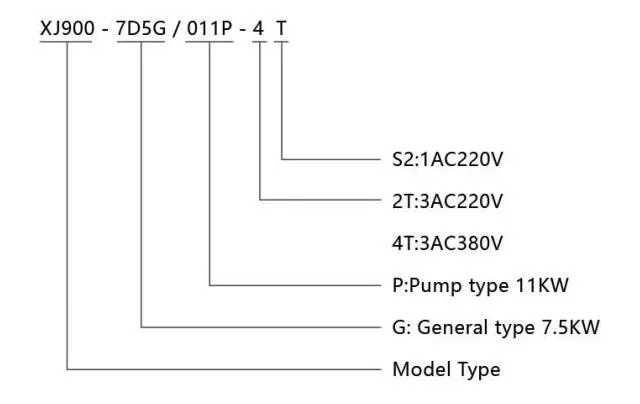

| MODEL | INPUT VOLTAGE | RATED POWER (KW) | RATED OUTPUT CURRENT (A) |
|---|---|---|---|
| XJ900-0R7G-S2 | SINGLE PHASE 220V | 0.75 | 4 |
| XJ900-2R2G-S2 | SINGLE PHASE 220V | 2.2 | 9.6 |
| XJ900-0R7G-4 | 3 PHASE 380V | 0.75 | 2.5 |
| XJ900-2R2G-4 | 3 PHASE 380V | 2.2 | 5 |
| XJ900-011G/015P-4 | 3 PHASE 380V | 11/15 | 25/32 |
| XJ900-500G-4 | 3 PHASE 380V | 500 | 820 |
Specializing in manufacturing, developing, and designing various electrical products for over 15 years, including distribution boxes, metal enclosures, and frequency inverters. Our modern production line features automatic welding, laser cutting, and automatic plastic spraying.
Our products have passed international safety certifications such as CE and RoHS, ensuring high quality and safety for various heavy-duty motor applications.
